| Prod Model: |
LJD8030Z |
| Type: |
Laser Diode |
| Wavelength: |
808nm |
| Operating Current: |
330mA |
| Operating Voltage: |
2V |
| Allowable Reverse Current: |
65mA |
| Color: |
Infrared |
| Max. Reverse Current: |
Standard |
| Life Time: |
10, 000 Hours |
| Storage Temperature: |
-10~85 Degree |
| Operating Temperature: |
-10~30 Degree |
Product Description
Item List:
405nm: 20mw, 30mw, 40mw, 100mw, 120mw, 150mw, 200mw, 250mw, 300mw, 500mw
450nm: 80mw, 100mw, 1w, 1.4w, 1.6w, 3.5w
520nm: 30mw, 50mw, 90mw, 100mw, 120mw, 500mw, 1w, 1.2w
532nm: 15mw, 25mw, 30mw, 50mw, 100mw, 300mw, 400mw, 500mw, 1w
635nm: 5mw, 10mw, 15mw, 20mw, 30mw, 120mw, 170mw, 180mw, 250mw, 300mw, 500mw, 700mw
650nm: 5mw, 7mw, 10mw, 60mw, 80mw, 100mw, 200mw. 500mw, 1w
780nm: 100mw, 150mw, 200mw
808nm: 200mw, 300mw, 500mw, 1w, 2w, 3w, 5w
830nm: 30mw, 200mw
850nm: 100mw, 200mw, 300mw, 500mw
980nm: 50mw, 100mw, 200mw, 300mw
Features:
1. High quality infrared laser diode 808nm 300mw
2. Laser diode
3. TO18-5.6mm package type

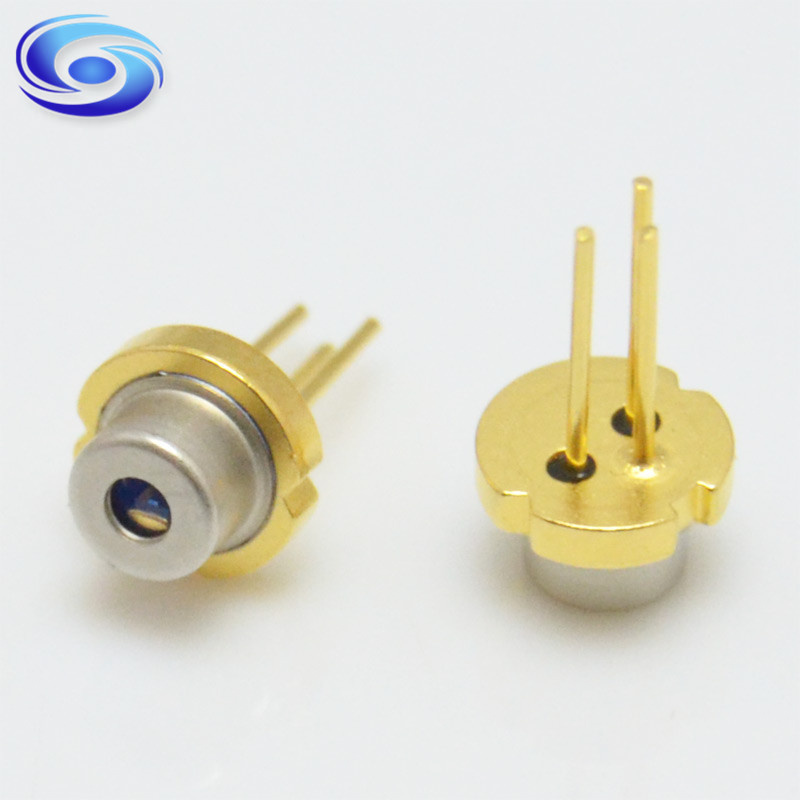

Factory Wholesale TO56 808nm 300mw TO18-5.6mm Infrared Laser Diode
Absolute Maximum Ratings (Tc = 25ºC)
| Item | Symbol | Ratings | Unit |
| Optical output power | Po | 300 | mW |
| LD Reverse Voltage | VR(LD) | 2 | V |
| Operating Temperature | Topr | -10 ~ +30 | °C |
| Storage Temperature | Tstg | -30 ~ +85 | °C |
Optical and Electrical Characteristics (Tc=25°C)
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit |
| Optical Output Power | Po | CW | - | 300 | - | mW |
| Peak Wavelength | λp | Po=300mW | 805 | 808 | 811 | nm |
| Threshold current | Ith | CW | - | 65 | 80 | mA |
| Operating current | Iop | Po=300mW | - | 330 | 360 | mA |
| Operating voltage | Vop | Po=300mW | - | 1.7 | 2.0 | V |
| Slope Efficiency | CW | η | - | 1 | - | mW/mA |
Welcome Your Inquiry
TO: Song Song
Mob: +86 13713250894
Dongguan BU Laser Co.,Ltd
1. Can Type: φ 5.6 mm Floating Mounted with Protection device.
2. Salable high quality 808nm 300mw laser diode.
3. Package details : Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 50pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
Packaging&Shipping:
1. Plastic box, standard and normal package.
2.1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3.It will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
4. Delivery time will be usually 3~5 working days.
