Product Description

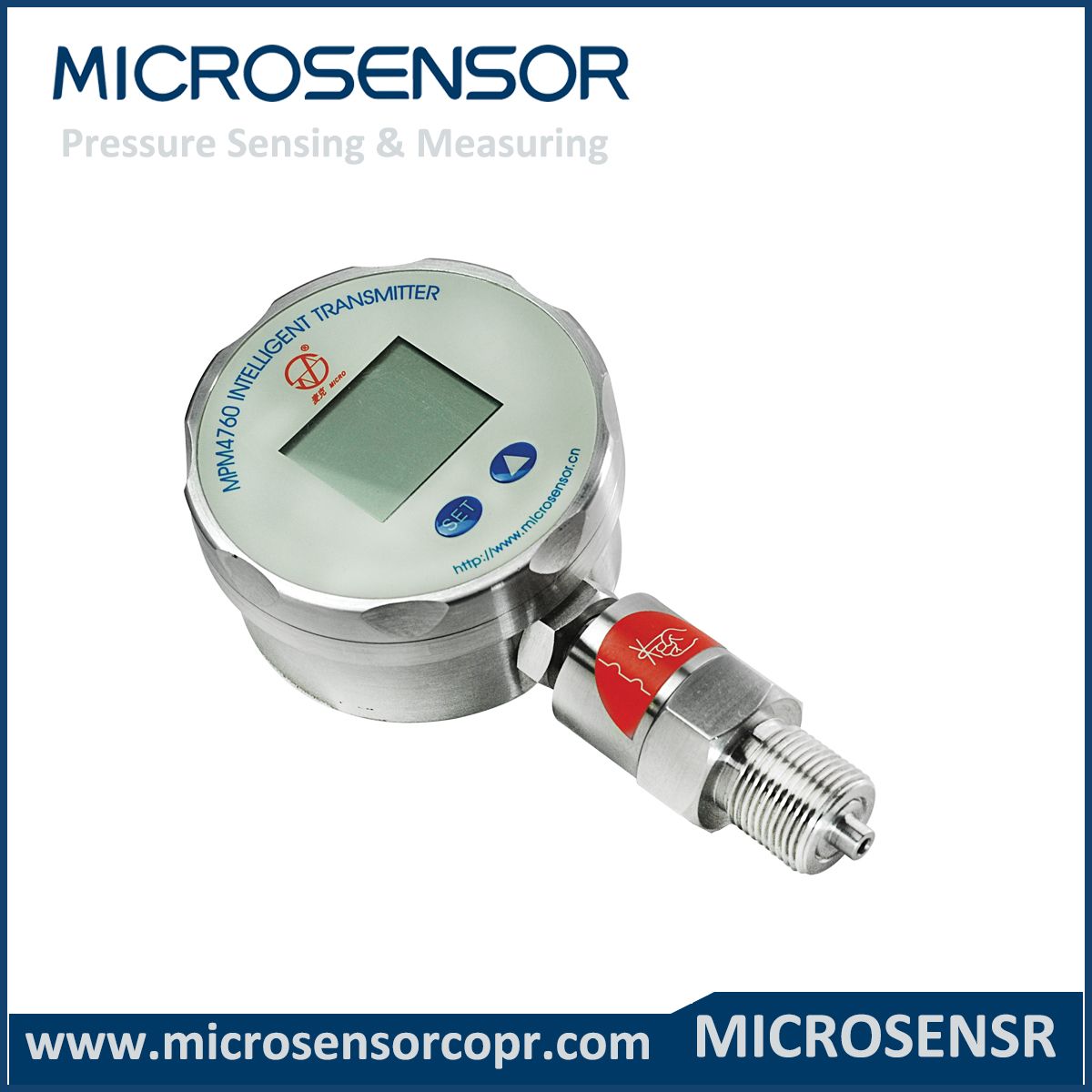

IP65 LCD Display Pressure Transmitter with Indicator Mpm4760
Features
1. LCD indicator;
2. 4~20mADC output;
3. RS485 protocol;
4. Battery available;
5. 76mm diameter
Application
1. Precise pressure measure
2. Display for power station & chemical industry
3. City water supply and drainage, etc
Specifications
| Basic range(MPa) | 0.1 | 0.2 | 0.35 | 0.7 | 1.0 | 2.0 | 3.5 | 7.0 | 10 | 20 | 35 | 60 | 100 |
| Overpressure (MPa) | 0.15 | 0.3 | 0.5 | 1.0 | 1.5 | 3.0 | 5.0 | 10 | 15 | 30 | 50 | 90 | 110 |
Note: the min.available shrinking pressure range is 1/5 of basic pressure range;
Vacuum pressure measure is available;
For the other pressure range between min.range and max.range, but not included in the above table, we enlarge the above basic pressure to produce (overpressure unavailable) |
| Total accuracy | ±0.1%FS(min.) ±0.25%FS(typ.) ±0.5%FS(max.) |
| Basic error | ±0.075%FS(min.) ±0.15%FS(typ.) ±0.25%FS(max.) |
| Stability | ±0.25%FS/year | Total accuracy: including non-linearity,hysteresis, repeatability and thermal error;
Room temperature rated value(20±2)ºC;
including non-linearity, hysteresis and repeatability;
For special temperature requirement, please feel free to contact our company. |
| Compensation temp. | (-10~80)ºC |
| Operation/storage temp. | (-30~80)ºC |
| Power supply | (8~28)VDC |
| Output signal | (4~20)mADC |
| RS485 interface |
| Load | (4~20)mADC output,(U-8V)/0.02A(Ω) |
| RS485, can connect 99 transmitters |
| Electric connection | GDM307 4-pin plug |
| Insulation | 100MΩ/50V |
| Shock | 20g,(20~5000)Hz |
| Impact | 20g,11ms |
| Protection | IP65 |
| Media compatibility | Diaphragm: stainless steel 316L |
| Pressure interface: stainless steel |
| Housing: stainless steel 1Cr18Ni9Ti |
| O-ring: Viton |
| Weight | About 420g |
Order Guide
| MPM4760 | Intelligent Digital Displaying Pressure Transmitter |
| | | Range | Pressure range: -0.10~0.01100MPa |
| [0~X]kPa or MPa | X=actual pressure range |
| | | Code | Output signal |
| E | 4~20mADC |
| R4 | RS485 communication interface |
| | | Code | Construction material |
| Diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| | | Code | Others |
| C1 | M20×1.5 male, face type seal |
| C3 | G1/2 male, (P type) |
| C4 | G1/4 female |
| C5 | M20×1.5 male, waterline seal |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male |
| G | Gauge |
| S | Sealed gauge |
| A | Absolute |
| | | | Vb | Battery-powered |
| | | | | | |
| MPM4760 [0~100]kPa ER4 22 C1G the whole spec |
