Prod Model: |
MPM489 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measurement Range: |
-0.1...0~0.01......100MPa |
Accuracy: |
0.5%Fs |
Output Signal: |
4~20madc |
Key Word: |
Intrinsic Safe Pressure Transmitter |
Certificate: |
CE |
Storage Temp: |
-40~120c |
Compensated Temp: |
0~50c |
Application: |
Industrial |
Structure: |
Stainless Steel |
Protection: |
IP65 |
Measuring Medium: |
Fluid |
Accuracy Grade: |
0.5%Fs |
Pressure Range: |
-0.1MPa...0~0.01MPa...100MPa |
Product Description

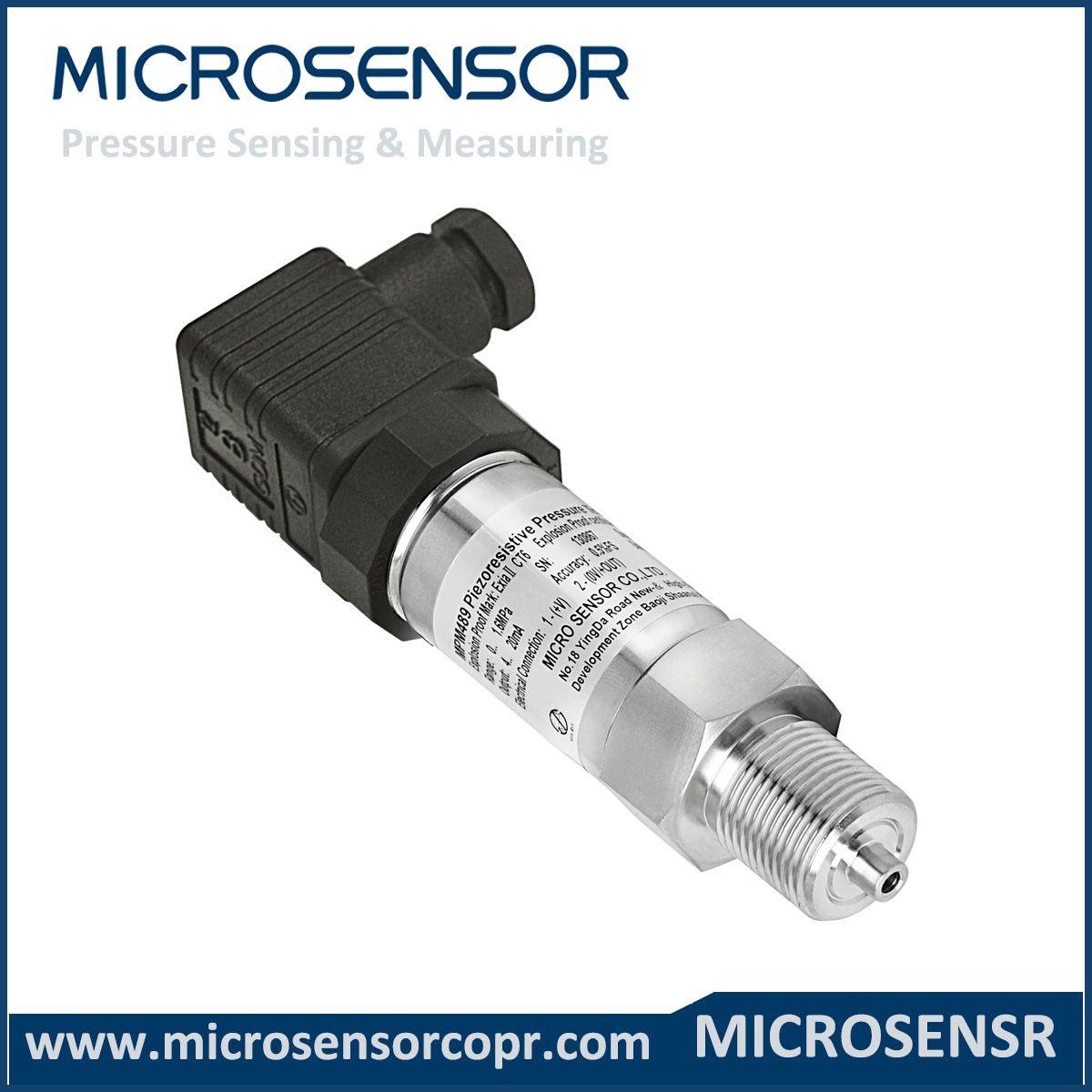

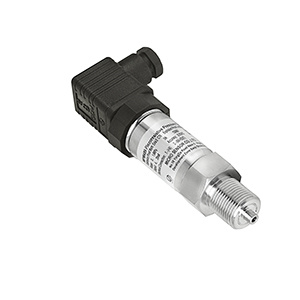

Intrinsic Safe Pressure Transducer MPM489
Features:1. Short protection;
2. Reliable performance;
3. Easy application;
4. Revered-polarity protection
Certificates:1. CE;
2. RoHS;
3. Ship-use;
4. Exd II CT6
Applications:1. Oil;
2. Chemical-industry;
3. Power station;
4. Hydrology & drainage;
5. Geology
Options:1. Gauge, sealed gauge, absolute;
2. LCD&LED digital indicator;
3. Flush diaphragm;
4. Intrinsic safe version
Description:Intrinsic Safe Pressure Transmitter MPM489 is a good performance product with stainless steel housing and diaphragm, which adopts high stable pressure sensor and special circuit board produce transmitter, it can be widely used in petroleum, chemical industry, power station and hydrology to monitor and control flow pressure.
Specifications: Pressure range | -0.10~0.01100MPa |
Overpressure | 1.5 times FS or 110MPa (min. value is valid) |
Pressure type | gauge/ absolute / sealed gauge |
Process connection | M20×1.5 male waterline seal (or on your demand) |
Accuracy | 0.5%FS |
Long term stability | max. ±0.3%FS/year |
Zero thermal drift | 0.1%FS/ºC(≤100kPa);0.05%FS/ºC(>100kPa) |
Span thermal drift | 0.1%FS/ºC(≤100kPa);0.05%FS/ºC(<100kPa) |
Compensation temp. | 0~50ºC |
Application temp. | -30~80ºC, intrinsic safe version: -10~60ºC , EXD: -20~60ºC |
Storage temp. | -40~120ºC |
Power supply | 11~28VDC,intrinsic safe version supplied by safe barrier |
Output signal | 4~20mADC(2-wire), 0/1~5VDC(3-wire) |
Load | ≤(U-10)/0.02Ω(2-wire), ≥10k(3-wire) |
Housing protection | IP65 |
Electric connection | DIN43650 plug |
Order guide:MPM489 | Pressure Transmitter |
| | Range | Pressure range: -0.10~0.01100MPa |
[0~X]kPa or MPa | X:the actual measured pressure |
| | Code | Output signal |
E | 4~20mADC |
F | 1~5VDC |
J | 0~5VDC |
| | | Code | Construction material |
Diaphragm | Pressure port | Housing |
22 | SS 316L | SS | SS |
24 | SS 316L | SS 316L | SS 316L |
25 | Tantalum | SS | SS |
35 | Tantalum | Hastelloy | SS |
| | Code | Others |
B1 | Plug connection |
B2 | Cable connection |
PC1 | Flush diaphragm, M20×1.5 male |
PC3 | Flush diaphragm, G1/2 male |
M3 | 3 1/2 digits LCD digital indicator |
M4 | 3 1/2 digits LED digital indicator |
i | Intrinsic safe version: ExiaIICT6 |
T | Ship-use |
d | ExdIICT6 |
C1 | M20×1.5 male, face type seal |
C3 | G1/2 male (used for flush diaphragm type) |
C5 | M20×1.5 male, waterline seal |
G | Gauge |
S | Sealed gauge |
A | Absolute |
| |
MPM489 [0~100kPa] E 22 B1C5G the whole spec |
| | | | | | | | | | | | |
