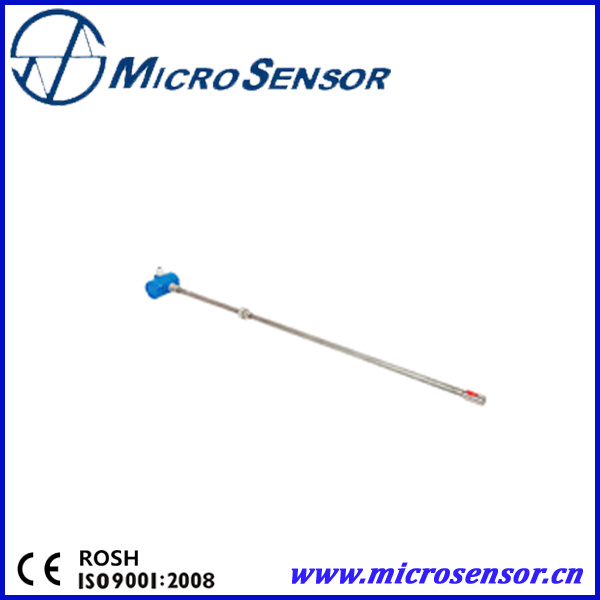

Intrinsic Safe Armoured Level Transmitter with High Accuracy MPM416WK
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Prod Model: |
MPM416WK |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measurement Range: |
0~1...200m |
Housing: |
Stainless Steel |
Operation Temp: |
-10o C~80o C, Intrinsic Safe Version: -10~70 |
Protection: |
IP68(Sensor Part), IP65(Wiring Part) |
Ex-Proof Class: |
Exiaiict6 |
Constrction: |
Seperated |
Output Signal: |
4~20madc |
Power Supply: |
15~28VDC |
Diaphragm: |
Stainless Steel |
Storage Temp: |
-40~100c |
Product Description
Intrinsic safe Armoured MPM416WK Level Transmitter with high accuracyFeatures:
1.Intrinsic safe;
2.Aluminum-alloy electric box;
3.Stainless Steel;
4. Integrated construction;
5.Shape-use;
6.Exia II CT6
Certificates:
1.Explosion-proof
2.CE
3.CCS
Applications:
1.Oil;
2.Chemical industry;
3.Power plant;
4.Water system;
5.Exploration
Specifications:Pressure range | MPM416W | 1 2 5 10 20 50 100 200mH2O |
MPM416WK | 1 2 3 4mH2O |
MPM416WRK | 1 2 5 10 20mH2O |
Overpressure | 1.5times FS |
Accuracy | +0.25%FS(typ.) +0.5%FS(max.) |
Stability error | +0.1%FS(typ.) +0.2%FS(max.) pressure range>20mH2O |
+10mmH2O(typ.) +20mmH2O(max.) pressure range≤20mH2O |
+20mmH2O(typ.) +30mmH2O(max.) only for MPM416WRK |
Temp. drift | | Zero drift, + %FS/ºC | Sensitivitydrift,+%FS/ºC |
Rang>10mH2O | 0.005(typ.) | 0.01(max.) | 0.02(max.) |
Range ≤10mH2O | 0.01(typ.) | 0.02(max.) | 0.02(max.) |
Range ≤5mH2O | 0.015(typ.) | 0.03(max.) | 0.02(max.) |
Range ≤2mH2O | 0.025(typ.) | 0.05(max.) | 0.02(max.) |
Transmitting | 2-wire | 3-wire | 3-wire |
Power supply | 15~30VDC(Intrinsic safe version is supplied through safe barrier) | 15~28VDC | 15~28VDC |
Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
Load(Ω) | <(U-15)/0.02A | <(U-15)/0.02A | >5k |
Material contacting with media | MPM416W | Housing: stainless steel 1Cr18Ni9Ti | O-ring: Viton |
Diaphragm: stainless steel 316L | Rubber casing: NBR |
Cable: Φ7.2mm PVC/Polyurethane cable with vented tube |
MPM416WK | Stainless steel 1Cr18Ni9Ti, red copper, Viton O-ring |
MPM416WRK | Stainless steel 1Cr18Ni9Ti |
Operation temp. | -10ºC~80ºC; Intrinsic safe version: -10ºC~60ºC |
Storage temp. | -40ºC~100ºC |
Protection | IP68(sensor part), IP65(connection box) |
Ex-proof class | ExiaIICT6 |
| | | | | | | |
Order guide:MPM416W | Submersible Level Transmitter |
MPM416WK | Armoured Level Transmitter |
MPM416WRK | Flexible Armoured Level Transmitter |
| | range(mH2O) | [0~X mH2O]L | L: cable length, suggested: L-X=(1~2)m | MPM416W |
L: armoured tube length | MPM416WK |
L: flexible armoured tube length | MPM416WRK |
| | | Code | Output signal |
E | 4~20mADC |
F | 1~5VDC |
J | 0~5VDC |
Q | 0~10mADC |
U | 0~20mADC |
V | 0~10VDC |
| | | | Code | Construction material |
| diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| 25 | Tantalum | SS | SS |
| | | | Code | Others |
| M1 | 0~100% hand pointer indicator (MPM416WRK has no this option) |
| i | Intrinsic safe version ExiaIICT6 |
| C1 | M20×1.5 male, face type seal | MPM416W |
| C3 | G1/2 male |
| C5 | M20×1.5 male, waterline seal |
| T | Ship-use |
| F1 | Fixed flange(MPM416WK has no this option) |
| 1F1 | Stainless steel flange 1 DN50 | MPM416WK |
| 1M1 | Stainless steel male M42×1.5 |
| 1F2 | Stainless steel flange 2 DN10 |
| 1M2 | Stainless steel male M30×1.5 |
| 2F1 | Carbon steel plating zinc flange 1 DN50 |
| 2M1 | Carbon steel plating zinc male M42×1.5 |
| 2F2 | Carbon steel plating zinc flange 2 DN10 |
| 2M2 | Carbon steel plating zinc male M30×1.5 |
| | | | | | | | |
MPM416W [0~3mH2O]5 E 22 iC1 the whole spec |
| | | | | | | | | | | | |
