Prod Model: |
TSB3-125AP |
Rated Current: |
40, 50, 63, 80, 100, 125A |
Rated Voltage: |
240V / 415V |
Rated Impulse Withstand Voltage: |
6kv |
Limit Circuit Breaking Capacity: |
6-10ka |
Running Circuit Breaking Capacity: |
6-7.5ka |
Instantaneous Tripping Type: |
C, D |
Electrical Life: |
≥6000 Operations |
Mechanical Life: |
(O-C) ≥20000 Operations |
Mounting: |
DIN Rail |
Ambient Temperature: |
-40-70ºC |
Breaking Capacity: |
Low Voltage Circuit Breakers |
Operation: |
Electric Type |
Speed: |
Normal Type Circuit Breaker |
Arc-extinguishing Medium: |
Air |
Installation: |
Fixed |
Structure: |
MCB |
Poles Number: |
2 |
Certification: |
CE |
Function: |
Prepaid Kwh Meter Intelligent Control |
Product Description

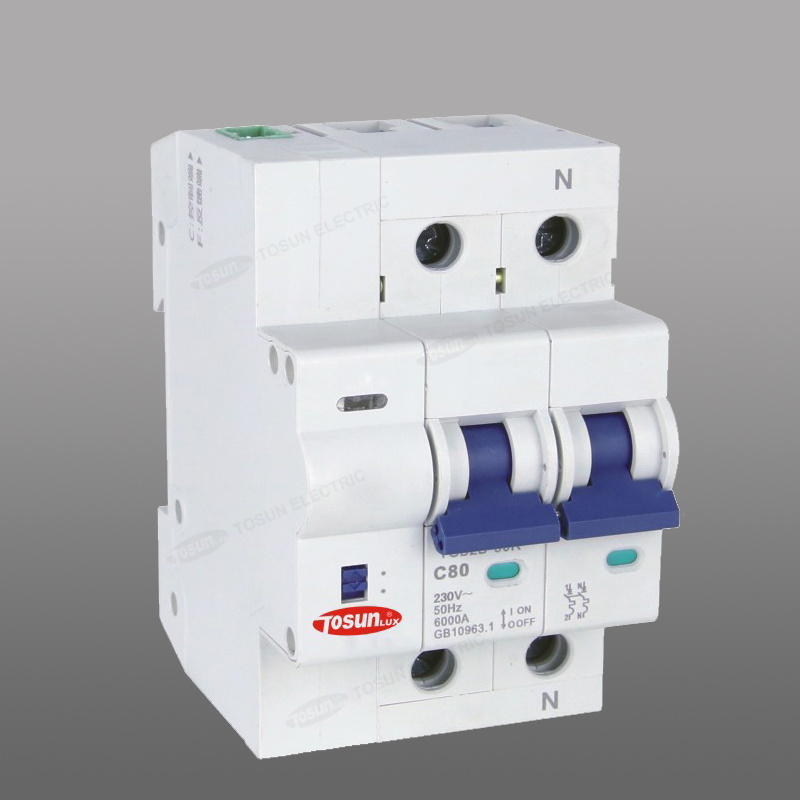

Introduction TSB3-125AP is a new type of circuit breaker with intelligent control function designed for prepaid energy.
The circuit breaker is applicable to controlling the power consumption data collection system.
Its action is controlled by the prepaid energy meter according to the account balance of the power consumer.
The circuit breaker is used in circuit of rated working voltage at 230/400VAC 50/60Hz,rated control voltage at 220VAC and rated current under 125A.
Its insulation voltage is 500V.
Features1. Impact: 18mm width cotrol module
2. Intelligent: automatically connect or disconnect the circuit according to the account balance
3. Safe: breaking capacity >6kA
4. Reliable Transmission: intermediate drive shaft ensures synchronous action of circuit breaker of 2 or more poles. SpecificationNumber of Poles | 2P, 4P |
Rated Current (A) | 40,50,63,80,100,125 |
Limit Circuit Breaking Capacitor | 6-10 KA |
Running Circuit Breaking Capacity (KA) | 6-7.5 |
Rated Voltage (V) | 230/415V |
Rated Impulse Withstands Voltage | 6KV |
Instantaneous Tripping Type | C, D |
Circumstance Temperature | -40ºC~+70ºC |
Electrical Life | ≥ 6000 operations |
Mechanical Life | ≥ 20000 operations |
Functions220VAC signal is adopted to control the circuit breaker. The control unit is powered by the control signal line. When the circuit breaker acts, it is temperately powered through phase line. In other occasions, the circuit breaker consumes low power. The leakage current of phase line is less than 0.2mA.
220VAC signal is used to feed back conditions of the circuit breaker. When the breaker is in "ON" condition. the feedback is 220VAC: when in ""OFF" condition, no feedback signal.
The single phase circuit breaker is powered by the phase line. Three phases circuit breaker is powered through the three phases lines. When any one of the three phases failed, the circuit breaker can feedback normally. The control and feedback signal terminals have the function of anti-false inserting.
Signal lamp in the front panel indicates the control condition of the energy meter.
Full-automatic remote control conform to the following table. Semi-automatic remote control conforms to the table, except for No.1. NO | Phase Line | Control Signal | Initial Condition | Condition After Action | Remark |
1 | 220VAC | 0-220VAC | OFF | ON | close signal received |
2 | 220VAC | ON | OFF | open by hand allowed |
3 | OFF | ON | close by hand allowed |
4 | 220VAC-0V | ON | OFF | close signal received |
5 | OFF | OFF | open signal received |
6 | 0V | OFF | OFF | close by hand prohibited |
7 | 220VAC-0V 0V-220VAC | 220VAC | ON | ON | power supply recovers after blackout, automatically open and then close the breaker prohibited. |
8 | OFF | OFF | power supply recovers after blackout, automatically close the breaker or close and then open the breaker prohibited |
9 | 0V | / | OFF | OFF | circuit disconnected, the breaker stays in the initial condition |
10 | 0V | / | ON | ON |

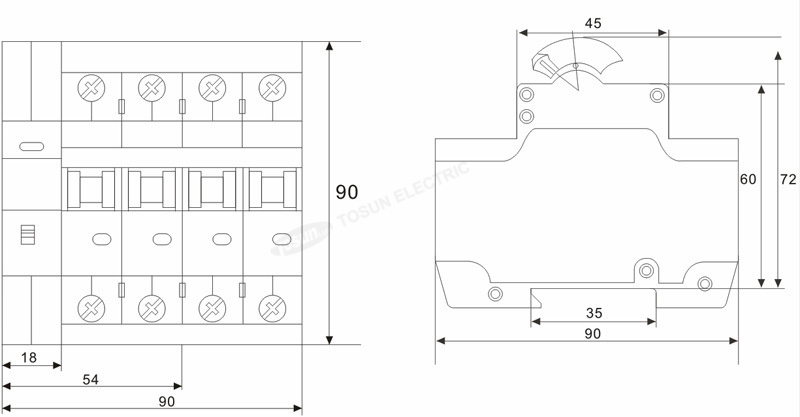

Dimensions (mm)
![](/proimages/44f3j00LUqEHIMGvBoD/intelligent-control-circuit-breaker-for-prepaid-kwh-meter-.jpg)

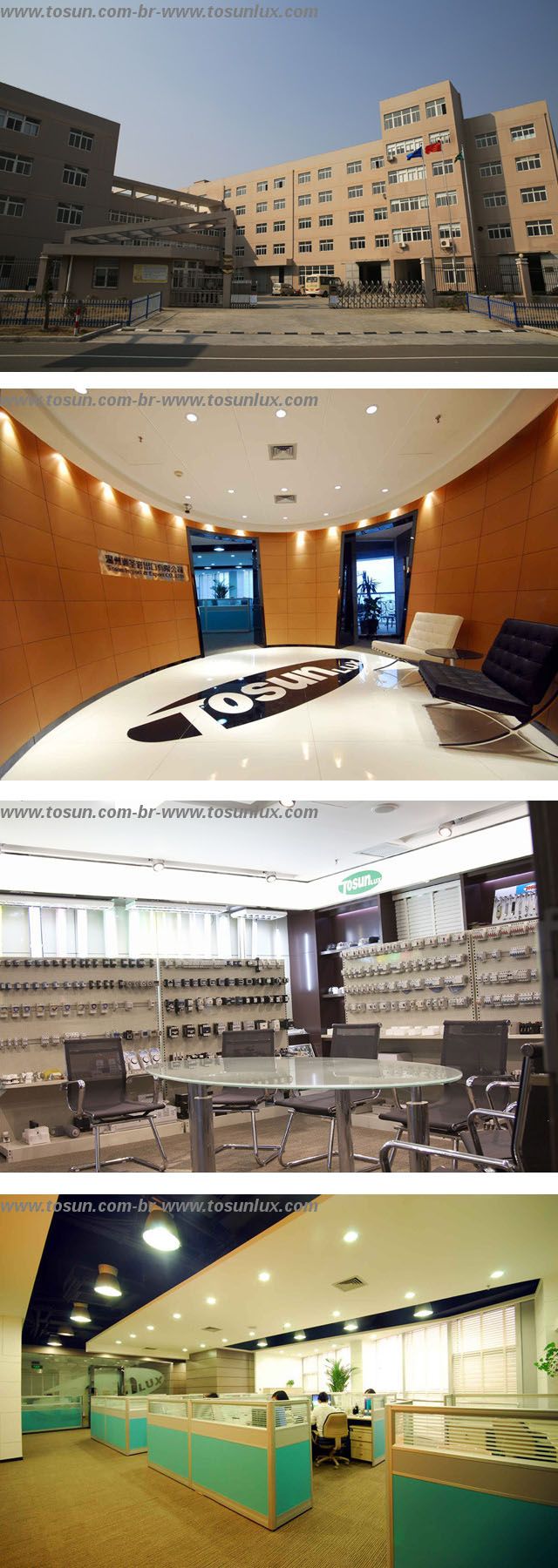

About Tosun Electric
