Integrated Portable Ultrasound Widely Used Wireless Probe

Integrated Portable Ultrasound Widely Used Wireless Probe
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: TY-6858A-2
Software Supply System: Apple Ios and Android
Application: Abdomen/Obstetrics/Msk/Vascular/Thyroid/Breast
Measure: Distance,Area,Obstertrics
Weight: 308g
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Scanner
Certification: ISO13485
Group: Children and Adult

Product Description

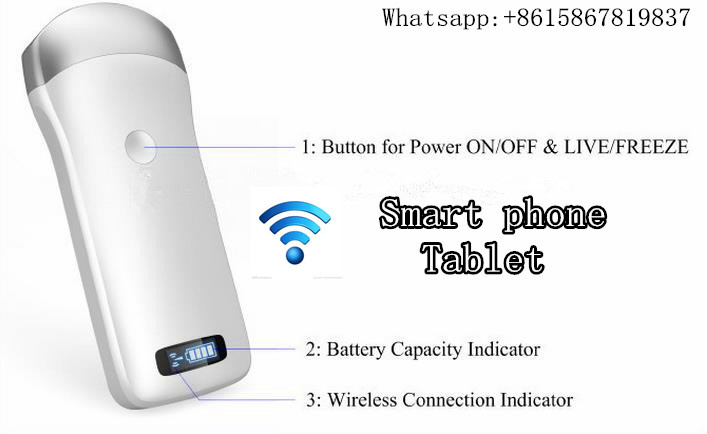

Features:

integrated ultrasound circuit boards inside
small & smart, convenient for carry and operation
No cables
Built-in battery

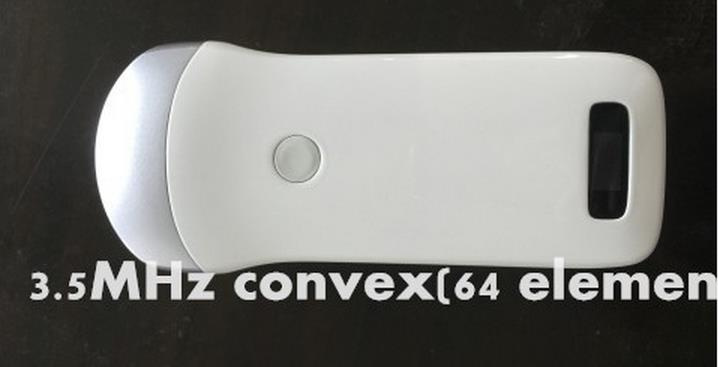

Specification for Convex probe
-Scan mode: Electronic array
-Display mode: B, B/M
-Frequency:3.5MHz
-Depth: 100mm~200mm
-Measure: distance, area, obstetrics
-Battery last: 3 hours
-Dimension: 156mm×60mm×20mm
-Weight: 308 gram
-Wifi type: 802.11g/20MHz/2.4G/54Mbps
-Work OS: Apple iOS and Android
-Image frame rate: 12f/s

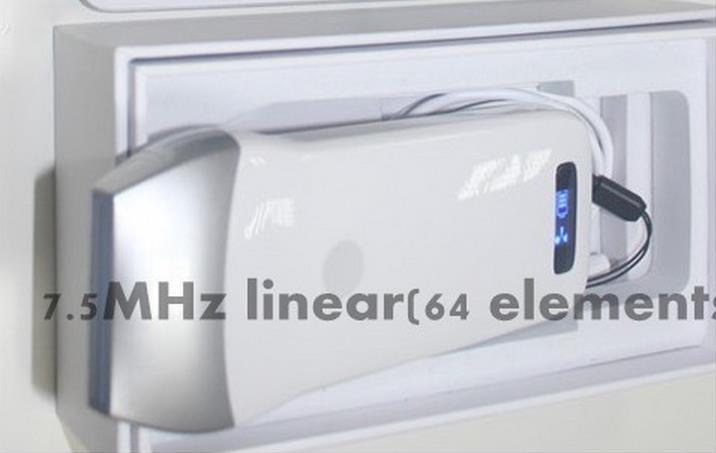

Specification for Linear probe
-Scan mode: Electronic array
-Display mode: B, B/M
-Frequency:7.5MHz and 10MHz two type probe
-Depth: 40mm~100mm
-Measure: distance, area, obstetrics
-Battery last: 4 hours
-Dimension: 180mm×60mm×60mm
-Weight: 300 gram
-Wifi type: 802.11g/20MHz/2.4G/54Mbps
-Work OS: Apple iOS and Android
-Image frame rate: 12f/s.

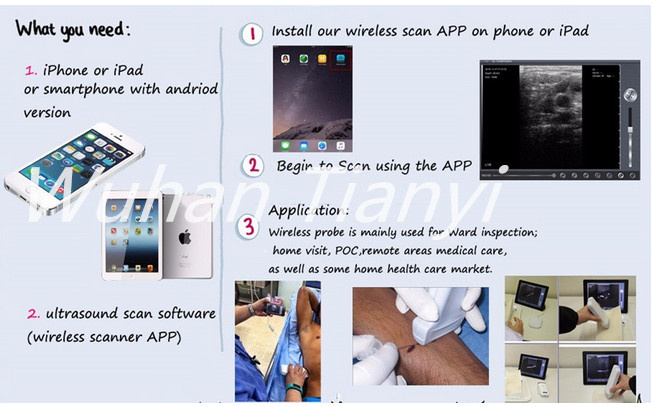

How to work:
--install ultrasound software(We provide or download from Apple store)
--connect to iPad, iPhone ,Android Phone via WIFI
--Then realize the function of a ultrasound scanner




Configurationa main unit ,a charger
Probe for choice3.5 MHZ convex probe(64 elements and 128 elements)
7.5MHZ linear probe(64 elements and 128 elements)
10 MHZ linear probe(128 elements)

Why choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.



Please feel free to contact us for much more details


Wuhan Tianyi Electronics Co., Ltd. Was founded in 1998. It is a high-tech joint-stock enterprise, specializing in medical equipment research, development, production and sales, including B_ultrasonic machine, medical ultrasound imaging systems, with strong capability to develop new products.

In 2008, the company launched a grand series of digital B-ultrasound diagnostic apparatus in the forefront of the industry, greatly meeting the needs of the vast number of users. Advanced technology, sophisticated design, scientific management, strict quality control, as well as life-after-sales service make our products popular in hospitals and clinics. The products have been widely used in medical ultrasound diagnosis in liver, gall and spleen, pancreas, kidney, heart, bladder, uterus, accessories, a fetus, and family planning departments to check pregnancy, and other checks in the Obstetrics and Gynecology.

The Company has passed YY/T0287-2003 (1S013485: 2003) Medical Devices Quality Management System and IS09001: 2000 Quality Management System Certification. The right to import and export-oriented carry out the companies foundation in the international market. The quality of products has obtained good comments at home and abroad.

All the colleagues in the company will strive to improve the service system and lower the price of our products to make the customers more satisfied. Tianyi campony will contribute to develop modern medical equipment the IPPF and a medical unit, in order to promote universal health!
