| Prod Model: |
HH Chandelier beads 02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Insulating Glass Beads |
| Material: |
Soda Lime, Borosilicate, Lead Free Glass |
| Process: |
Cut, Ground, Polish |
| Use: |
Electronic Packaging, Fiber Optic Communications |
| Property: |
High Precision in Size |
| Packing: |
Shrink Wrap Tray, Cartons |
| Capacity: |
20000PCS Per Day |
| MOQ: |
5000PCS |
| Samples: |
Available Upon Request |
| Certificate: |
ISO, Ce |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
Low Voltage |
Product Description

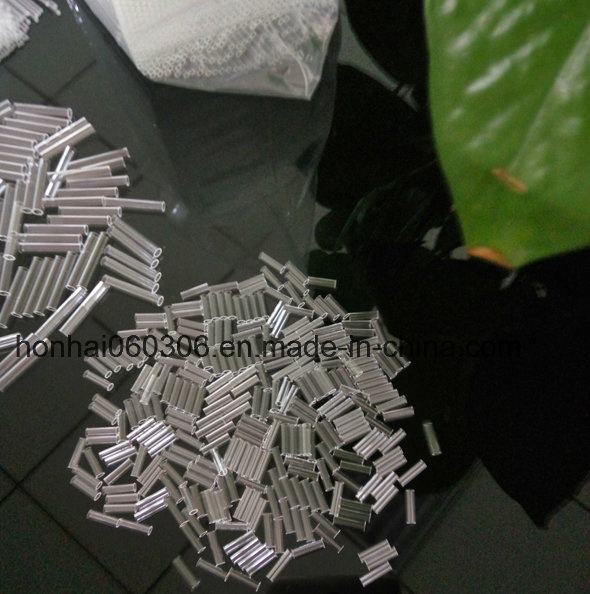

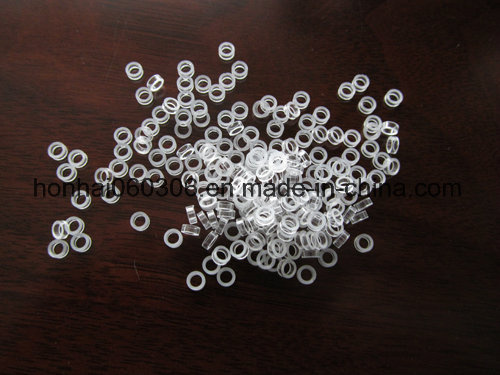

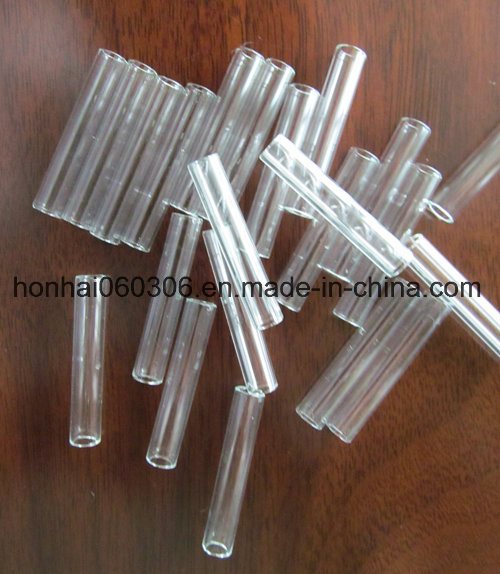

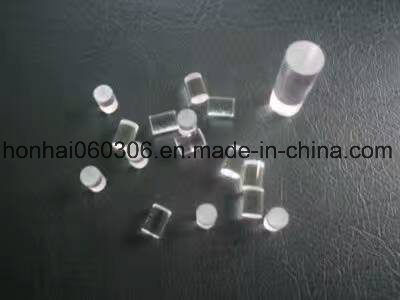

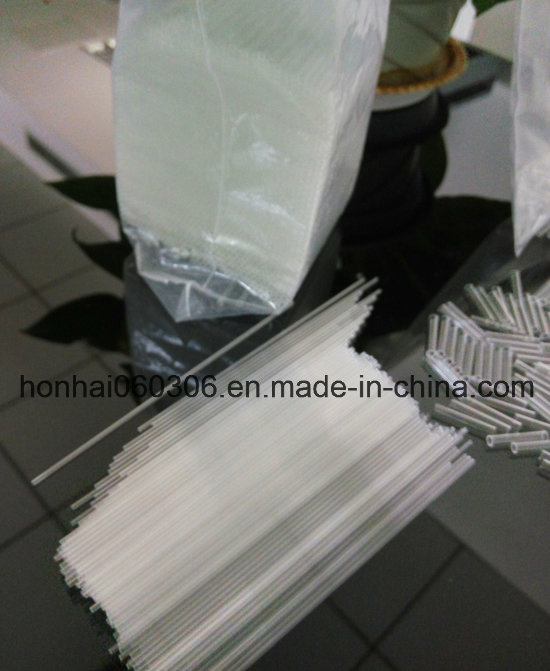

insulating glass Beads
Small glass tubes are used in numerous electronic applications where discrete electronic components must be protected, isolated from the environment or sealed. Some applications include reed switch bodies, fuse bodies, diode glass sleeve packages, lamps, transponders, flat panel displays and thermistors. The function of the glass varies by application, however, it is used many times to electrically insulate, passivate components or as a hermetic seal.
Glass is an ideal material for hermetically sealed packages because of its high dielectric rating, attachment properties to metal surfaces, and mechanical stability over a wide range of operating temperatures. These features provide high electrical insulation, hermetic sealing of glass to metal, and high resistance to cracking as a result of thermal stress.
Examples include:
Specialty shaped reed switch bodies, fuse bodies, glass diode packages, glass RFID transponder bodies, and thermistor bodies
Glass diode bodies, diode glass sleeves, and Glass Sleeves for Encapsulating Semiconductor (for Diodes)
Reed switch encapsulation using a glass composition (IR absorbing glass) which can be laser sealed
| SN | OD(mm) | ID(mm) | Length(mm) |
| 1 | 1.01±0.03 | 0.31±0.04 | 11.2±0.1 |
| 2 | 1.6+0.01 | 1.005+0.01 | 4±0.1 |
| 3 | 1.796±0.005 | 0.95±0.05 | 4.9±0.1 |
| 4 | 1.8±0.01 | 1.025±0.005 | 4.0±0.1 |
| 5 | 2.2±0.01 | 1.025±0.005 | 4.0±0.1 |
| 6 | 2.2±0.005 | 1.6±0.01 | 4.0±0.1 |
| 7 | 2.76±0.01 | 1.81±0.005 | 9.0±0.1 |
| 8 | 2.78±0.01 | 1.81±0.005 | 8.0±0.1 |
| 9 | 2.78±0.03 | 1.885±0.015 | 8.5±0.1 |
| 10 | 2.976±0.01 | 1.808±0.04 | 12±0.1 |
| 11 | 3.0±0.1 | 2.0±0.03 | 19±0.1 |
| 12 | 3.0±0.05 | 1.8+0.05 | 4±0.1 |
| 13 | 3.05±0.01 | 1.81±0.005 | 8.0±0.1 |
| 14 | 3.2±0.02 | 1.812±0.005 | 9.0±0.1 |
| 15 | 3.3±0.1 | 1.81±0.005 | 3.0±0.1 |
| 16 | 3.3±0.05 | 2.07±0.06 | 7.5±0.02 |
| 17 | 3.37±0.02 | 2.812±0.005 | 9.0±0.1 |
| 18 | 3.5±0.02 | 1.81±0.005 | 4.7±0.1 |
| 19 | 3.5±0.1 | 2.5+0.05 | 3.5±0.1 |
| 20 | 3.6±0.05 | 3.0+0.05 | 9±0.1 |
| 21 | 3.7±0.02 | 1.81±0.005 | 4.7±0.1 |
| 22 | 3.7±0.05 | 2.607±0.005 | 4.7±0.1 |
| 23 | 4.0±0.01 | 2.415±0.005 | 11.5±0.02 |
| 24 | 4.1±0.05 | 2.807±0.005 | 4.7±0.1 |
| 25 | 4.13±0.03 | 2.88±0.02 | 16±0.1 |
| 26 | 4.1±0.1 | 2.8+0.05 | 3±0.1 |
| 27 | 4.2±0.05 | 2.93±0.01 | 17.0±0.1 |
| 28 | 4.4±0.02 | 1.8±0.02 | 1.9±0.1 |
| 29 | 4.45±0.05 | 3.3±0.01 | 16±0.1 |
| 30 | 4.6±0.02 | 3.05±0.007 | 15±0.1 |
| 31 | 4.6±0.03 | 3.6±0.02 | 19±0.1 |
| 32 | 4.9±0.02 | 3.1±0.02 | 5±0.05 |
| 33 | 6.8±0.03 | 4.04±0.02 | 4±0.1 |
| 34 | 9.9 | 6.84±0.03 | 3±0.1 |
Table3- Application of the electric light sources
(BJ-40 and molybdenum glass group)
| SN | OD(mm) | ID(mm) | Length(mm) |
| 1 | 1.60±0.03 | 0.90±0.03 | 10±0.2 |
| 2 | 2.0±0.05 | 0.8±0.01 | 20 |
| 3 | 2.6±0.05 | 0.8±0.05 | 1000 |
| 4 | 2.94±0.03 | 2.0±0.01 | 20±0.1 |
| 5 | 3.0±0.1 | 0.7±0.02 | 9.1±0.1 |
| 6 | 3.15±0.03 | 2.0±0.01 | 1100 |
| 7 | 4.55±0.1 | 0.7±0.05 | 19.1±0.1 |
| 8 | 5.55±0.1 | 0.75±0.05 | 19.1±0.1 |
| 9 | 6.0±0.05 | 5.0±0.01 | 170 |
| 10 | 3.0±0.03 | 2.0±0.02 | 1000 |
ShanDong HonHai Industrial Group Company Limited who produces and supplies borosilicate glass tube, rod and its related glassblowing articles, glass ceramic, borosilicate glass sheets, borosilicate moulded glassware, pharmaceutical glass packaging, lamp lighting glass shell and daily consumer glassware. Jinan HonHai Glass Company Limited, as a member of ShanDong HonHai Industrial Group Company Limited, is handling international business of the whole group.
Ø Division for borosilicate glass tube, rod and its related glassblowing articles
We started to manufacture borosilicate 3.3 colored and clear glass tubing, rod (Vello & Danner) and its related glassblowing articles since 1994 through importing Japanese NEG's and Germany equipment & technology. Now we have annual capability to draw glass tube over 150, 000 metric tons, which makes us the leading Chinese manufacture in this field. Thanks to our continous process improvements, we have been drawing glass tube with highly precise dimensions in China.
We also redraw (secondary processing on tubing) high precision bore glass & quartz tube for optoelectronic, fibre optics telecommunication, medical and other special applications.
Besides, we make scientific laboratory glassware, heat resistant glass tea & coffee sets, glass bong water pipes, glass baby feeding bottles, lamp glass shell and others glassblowing products.
Ø Division for borosilicate moulded glassware
Due to our expertise in electrically melted glass furnaces control technology, we set up a new factory in the year 2001 to make heat resistant baking dishes, Casseroles, food storage glass jars and others that are oven, microwave, freezer (refrigerator), dishwasher free.
Now we have annual capability around 5, 000 metric tons.
Ø Division for pharmaceutical glass packaging
From the year 1996 we enter into pharmaceutical glass packaging industry, produce neutral borosilicate pharmaceutical glass tube USP TYPE I, tubular glass vial & ampoule, glass cartridge, glass prefillable syringes.
Now we have annual turnover around US dollar thirty million.
Ø Division for lamp lighting glass
In the year 1999 we set up factory for making lamp lighting glass including soda lime glass tube, lead glass tube, lead free glass tube, lamp & lantern glass cover/shade/shell/globe/chimney
Ø Division for daily consumer glassware
In the year 2005 we expanded our production to make glass cosmetic containers, glass kitchenware and Tableware.
Particularly, we've successfully developed flat borosilicate 3.3 floated glass sheet and glass ceramic which enjoys a good reputation in the United States and Europe.
Our factories are equipped with advanced machinery with production know-how, strict and complete quality management and supervision system as well as friendly customer service. Holding a business principle of "Honesty, Cooperation, Win-Win", we concentrate on continuous quality improvement and upgrade. We take it as our responsibility to satisfy customers' requirements, and innovate market demand.
We well know about glass and respect customers' requests. We will improve, upgrade and innovate products all the time.
Let us rethink, rediscover and reinvent glass!
