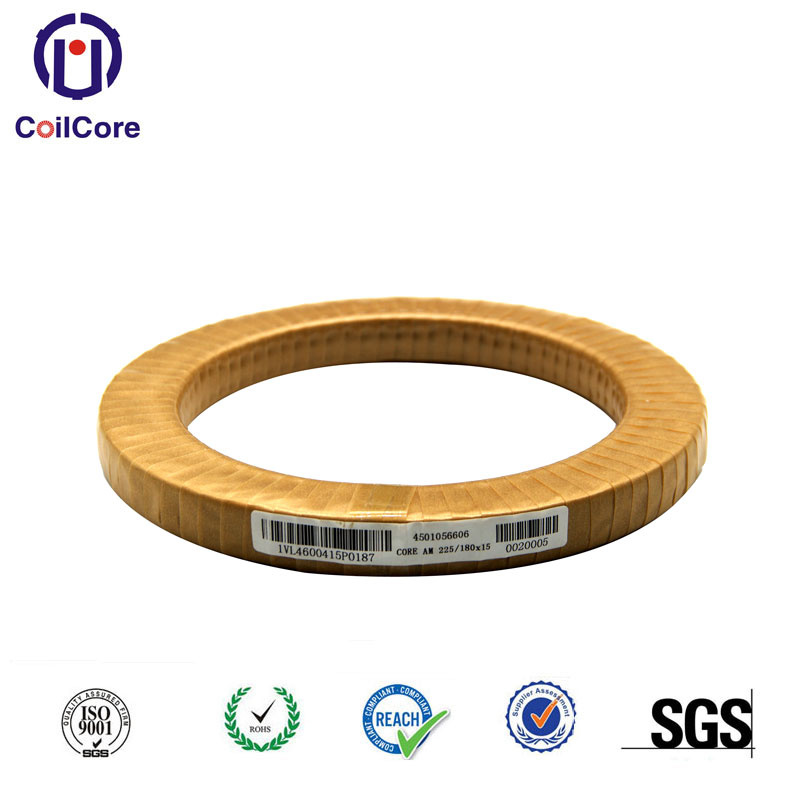

Instrument Current Transformer Cores

Name: Instrument Current Transformer Cores
Brand: all-electronics-online.com
SKU: 833217325
Availability: InStock
Rating: 4.6 (77 reviews)

Price:	US $ 15/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Application:	Lighting
Type:	Voltage Transformer
Phase:	Single
Installation:	According to Customer Demand

Product Description

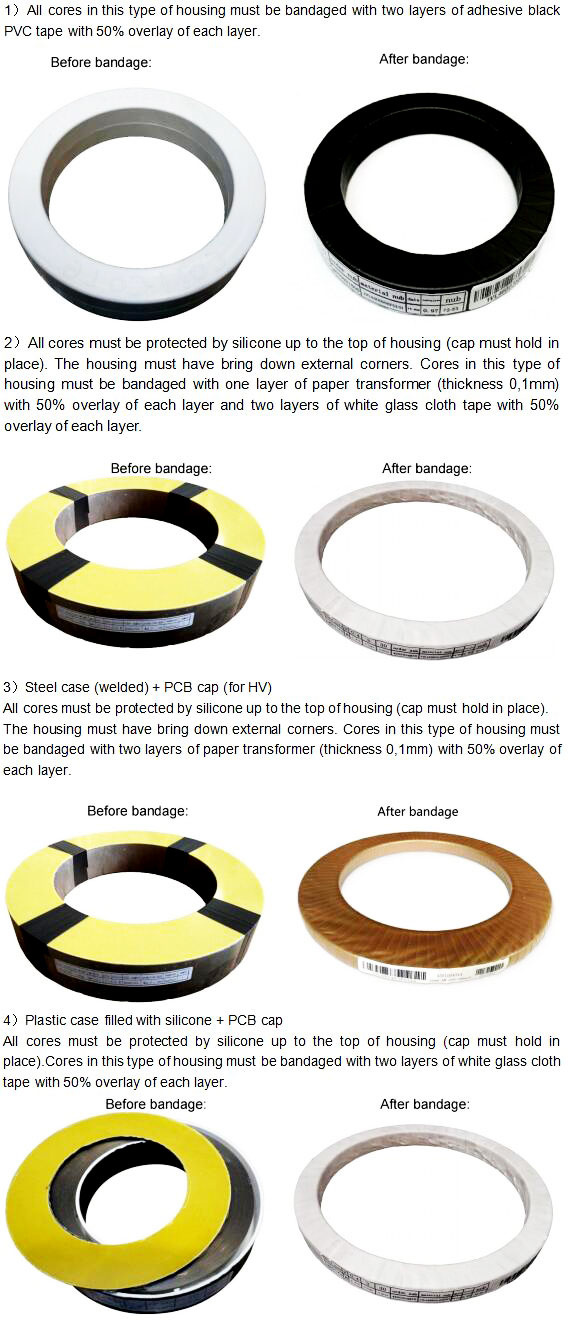

Core Size	Core Caps	(,) Specification					Packing Requirements
Core Size	Core Caps	I(MA)	55	230	700	7000	Packing Requirements
115/95x10	120/90x15	V(MV)	0.32	4.8	11.7	15.0	DMC two plastic cases
115/95x15	120/90x20		0.48	7.2	17.6	22.5	DMC two plastic cases
115/95x20	120/90x25		0.64	9.6	23.4	30.0	DMC two plastic cases
115/95x25	120/90x30		0.8	12	29.3	37.5	DMC two plastic cases
115/95x30	120/90x35		0.96	14.4	35.1	45.0	DMC two plastic cases
120/80x10	125/75*16	I(MA)	48	220	660	6600	DMC two plastic cases
120/80x10	125/75*16	V(MV)	0.65	9.5	23.5	29.5	DMC two plastic cases
120/80x20	125/75*26	V(MV)	1.3	19	47	59	DMC two plastic cases
120/90x10	125/85*17	I(MA)	52	230	700	7000	DMC two plastic cases
120/90x10	125/85*17	V(MV)	0.48	7.1	17.5	23	DMC two plastic cases
120/90x15	125/85*22		0.72	10.7	26.3	34.5	DMC two plastic cases DMC two plastic cases
120/90x20	125/85*26		0.96	14.2	35.0	46	DMC two plastic cases DMC two plastic cases
120/90x25	125/85*31		1.2	17.8	43.8	57	DMC two plastic cases
120/90x30	125/85*36		1.44	21.3	52.5	69	DMC two plastic cases
120/95x10	125/90*16	I(MA)	52	240	720	7200	DMC two plastic cases
120/95x10	125/90*16	V(MV)	0.4	6	14.6	19	DMC two plastic cases
120/95x15	125/90*21		0.6	9	21.9	28.5	DMC two plastic cases
120/95x20	125/90*26		0.8	12	29.2	38	DMC two plastic cases
125/105x20	100/130*26	I(MA)	55	260	770	7700	DMC two plastic cases DMC two plastic cases
125/105x20	100/130*26	V(MV)	0.65	9.5	23.5	30.5
125/60x55	130/55*62	I(MA)	45	210	610	6100
125/60x55	130/55*62	V(MV)	5.7	85	210	270
125/90x10	130/85*16	I(MA)	52	240	720	7200	DMC two plastic cases
125/90x10	130/85*16		0.55	8.30	20.5	26.5	DMC two plastic cases

125/90x15	130/85*21	V(MV)	0.83	12.0	30.8	39.8	DMC two plastic cases
125/90x20	130/85*26		1.10	17.0	41.0	53	DMC two plastic cases
125/90x50	130/85*56		2.75	42.0	102.5	132.5	DMC two plastic cases
130/80x20	135/75*26	I(MA)	52	230	700	7000
130/80x20	135/75*26	V(MV)	1.60	23.00	59.00	76.00
130/85x10	135/80*16	I(MA)	52	240	720	7200
130/85x10	135/80*16	V(MV)	0.70	10.50	26.50	34.00
130/85x15	135/80*21		1.05	15.75	39.75	51.00
130/85x20	135/80*26		1.40	21.00	53.00	68.00
130/90x10	135/85*16	I(MA)	52	240	720	7200	DMC two plastic cases
130/90x10	135/85*16	V(MV)	0.65	9.50	23.50	30.50	DMC two plastic cases
130/90x15	135/85*21		0.98	14.25	35.25	45.50
130/90x20	135/85*26		1.30	19.00	47.00	61.00	DMC two plastic cases DMC two plastic cases
140/100x10	145/95*16	I(MA)	55	260	800	8000
140/100x10	145/95*16	V(MV)	0.64	9.5	23.5	30.5
140/100x20	145/95*26	V(MV)	1.28	19	47	61	DMC two plastic cases DMC two plastic cases
140/105x10	145/100*16	I(MA)	60	270	820	8200
140/105x10	145/100*16	V(MV)	0.55	8.3	20.5	26.5
140/105x20	145/100*26	V(MV)	1.1	16.6	41	53	DMC two plastic cases
140/110x10	145/105*16	I(MA)	60	280	830	8300	DMC two plastic cases
140/110x10	145/105*16	V(MV)	0.48	7	17.5	23	DMC two plastic cases
140/110x15	145/105*21		0.72	10.5	26.25	34.5	DMC two plastic cases
140/110x20	145/105*26		0.96	14	35	46	DMC two plastic cases
140/110x30	145/105*36		1.44	21	52.5	69	DMC two plastic cases
140/115x10	145/110*16	I(MA)	65	280	850	8500
140/115x10	145/110*16	V(MV)	0.4	6	14.5	19
140/120x10	145/115*16	I(MA)	65	290	870	8700	DMC two plastic cases
140/120x10	145/115*16	V(MV)	0.32	4.8	11.8	15.2	DMC two plastic cases

140/85x20	145/80*26	I(MA)	55	250	760	7600
140/85x20	145/80*26	V(MV)	1.8	26	65	83
145/105x10	150/100*17	I(MA)	60	280	820	8200	DMC two plastic cases
145/105x10	150/100*17	V(MV)	0.66	9.6	23.5	30.2	DMC two plastic cases
145/105x15	150/100*22		0.99	14.4	35.3	45.3	DMC two plastic cases
145/105x20	150/100*27		1.32	19.2	47	60.4	DMC two plastic cases
145/105x30	150/100*36		1.98	28.8	70.5	90.6	DMC two plastic cases DMC two plastic cases
150/100x10	155/95*15	I(MA)	60	280	830	8300
150/100x10	155/95*15	V(MV)	0.8	11.8	29.5	38
150/100x15	155/95*21		1.2	17.7	44.3	57	DMC two plastic cases DMC two plastic cases
150/100x30	155/95*35		2.4	35.4	88.5	114	DMC two plastic cases DMC two plastic cases
150/110*15	155/105*21.5	I(MA)	60	290	870	8700	DMC two plastic cases DMC two plastic cases
150/110*15	155/105*21.5	V(MV)	0.95	14	35.5	45.5
150/120*15	155/115*21.5	I(MA)	65	300	900	9000
150/120*15	155/115*21.5	V(MV)	0.75	10.5	26.5	34
150/86*10	155/81*16	I(MA)	55	270	790	7900
150/86*10	155/81*16	V(MV)	1	15	37.5	48
150/86*20	155/81*21	V(MV)	2	30	75	96	DMC two plastic cases
155/95*20	160/90*26	I(MA)	60	280	840	8400	DMC two plastic cases
155/95*20	160/90*26	V(MV)	2.5	26	75	91	DMC two plastic cases
155/95*50	160/90*56	V(MV)	6.4	65	195	230	DMC two plastic cases
160/125*10	165/120*16	I(MA)	70	310	950	9500	DMC two plastic cases
160/125*10	165/120*16	V(MV)	0.56	8	20.6	26.5	DMC two plastic cases
160/125*15	165/120*21		0.84	12	30.9	39.8	DMC two plastic cases
160/125*20	165/120*26		1.12	16	41.2	59.7	DMC two plastic cases
170/130*15	175/125*21	I(MA)	75	330	1000	10000
170/130*15	175/125*21	V(MV)	1	14	35	45
175/125*10	180/120*16	I(MA)	75	330	1000	10000	DMC+ plastic case + pcb cap
175/125*10	180/120*16		0.8	11.8	29.4	38	DMC+ plastic case + pcb cap

175/125*15	180/120*21	V(MV)	1.2	17.7	44.1	57	DMC+ plastic case + pcb cap
175/125*20	180/120*26	V(MV)	1.6	23.6	58.8	76	DMC+ plastic case + pcb cap
175/145*60	180/140*67	I(MA)	75	350	1070	10700	+ steel case + pcb cap
175/145*60	180/140*67	V(MV)	3	42	105	136	+ steel case + pcb cap
175/155*10	180/150*16	I(MA)	80	360	1100	11000	+ steel case + pcb cap
175/155*10	180/150*16	V(MV)	0.35	4.7	11.7	15	+ steel case + pcb cap
180/115*10	185/110*16	I(MA)	70	330	990	9900	DMC+ plastic case + pcb cap
180/115*10	185/110*16	V(MV)	1	15.4	38	49	DMC+ plastic case + pcb cap
180/115*15	185/110*21		1.5	23.1	57	73.5	DMC+ plastic case + pcb cap
180/115*20	185/110*26		2	30.8	76	98	DMC+ plastic case + pcb cap
180/115*30	185/110*36		3	46.2	114	147	+ steel case + pcb cap
180/140*15	185/135*21	I(MA)	80	350	1070	10700	+ steel case + pcb cap
180/140*15	185/135*21	V(MV)	0.95	14	35	45	+ steel case + pcb cap
190/171*10	195/166*16	I(MA)	90	410	1200	12000	DMC+ plastic case + pcb cap
190/171*10	195/166*16	V(MV)	0.3	4.2	11.2	14.3	DMC+ plastic case + pcb cap
190/171*15	195/166*21		0.45	6.3	16.8	21.5	+ steel case + pcb cap
190/171*20	195/166*26		0.6	8.4	22.4	28.6	+ steel case + pcb cap
200/160*10	205/155*16	I(MA)	90	410	1200	12000	+ steel case + pcb cap
200/160*10	205/155*16	V(MV)	0.65	9.5	23.5	30	+ steel case + pcb cap
205/85*50	210/80*56	I(MA)	70	330	960	9600	+ steel case + pcb cap
205/85*50	210/80*56	V(MV)	9.5	140	350	450	+ steel case + pcb cap
205/85*55	210/80*61	V(MV)	10.5	154	385	495	+ steel case + pcb cap
210/175*10	215/170*16	I(MA)	100	420	1300	13000	+ steel case + pcb cap
210/175*10	215/170*16	V(MV)	0.55	8.2	20.5	26.5	+ steel case + pcb cap
220/130*10	227/123*16	I(MA)	85	390	1200		+ steel case + pcb cap
220/130*10	227/123*16	V(MV)	1.4	21	53	68	+ steel case + pcb cap
220/130*15	227/123*21		2.1	31.5	79.5	102	+ steel case + pcb cap
220/130*20	227/123*26		2.8	42	106	136	+ steel case + pcb cap
		I(MA)	80	380	1150	11500

230/115*10	237/108*16	V(MV)	1.8	27	68	87	steel case + pcb cap
230/115*15	237/108*21	V(MV)	2.7	40.5	102	130.5	+ steel case + pcb cap
230/140*50	237/133*56	I(MA)	90	420	1250	12500	+ steel case + pcb cap
230/140*50	237/133*56	V(MV)	7	105	265	340	+ steel case + pcb cap
230/185*20	237/178*26	I(MA)	100	460	1400	14000	+ steel case + pcb cap
230/185*20	237/178*26	V(MV)	1.4	21	53	68	+ steel case + pcb cap
235/155*40	242/148*46	I(MA)	95	430	1300	13000	+ steel case + pcb cap
235/155*40	242/148*46	V(MV)	5	75	187	241	+ steel case + pcb cap
240/200*20	247/193*26	I(MA)	110	500	1500	15000	+ steel case + pcb cap
240/200*20	247/193*26	V(MV)	1.3	19	47	61	+ steel case + pcb cap
240/205*10	247/198*16	I(MA)	110	500	1500	15000	+ steel case + pcb cap
240/205*10	247/198*16	V(MV)	0.55	8.3	20.5	26.5	+ steel case + pcb cap
245/220*40	252/213*46	I(MA)	110	500	1550	15500	+ steel case + pcb cap
245/220*40	252/213*46	V(MV)	1.6	23.5	59	75	+ steel case + pcb cap
260/190*10	267/183*16	I(MA)	110	500	1500	15000	+ steel case + pcb cap
260/190*10	267/183*16	V(MV)	1.1	16.5	41	53	+ steel case + pcb cap
265/185*40	272/178*46	I(MA)	110	500	1500	15000	+ steel case + pcb cap
265/185*40	272/178*46	V(MV)	5	75	187	242	+ steel case + pcb cap
265/230*30	272/223*36	I(MA)	120	550	1650	16500	+ steel case + pcb cap
265/230*30	272/223*36	V(MV)	1.6	25	62	79	+ steel case + pcb cap
285/265*10	292/258*16	I(MA)	140	600	1800	18000	+ steel case + pcb cap
285/265*10	292/258*16	V(MV)	0.31	4.4	11.5	15	+ steel case + pcb cap
290/260*10	297/253*16	I(MA)	140	650	1800	18000	+ steel case + pcb cap
290/260*10	297/253*16	V(MV)	0.47	11.5	17.5	22.5	+ steel case + pcb cap
305/280*20	312/273*26	I(MA)	140	650	1950	18000	+ steel case + pcb cap
305/280*20	312/273*26	V(MV)	0.8	11.5	29.5	38	+ steel case + pcb cap
310/245*10	317/238*16	I(MA)	140	620	1850	18000	+ steel case + pcb cap
310/245*10	317/238*16	V(MV)	1	15	38	49	+ steel case + pcb cap
310/245*30	317/238*36	V(MV)	3	45	114	147	+ steel case + pcb cap
		I(MA)	180	830	2500	18000

385/363*10	392/356*16	V(MV)	0.35	5	13	16.5	steel case + pcb cap
385/363*15	392/356*21		0.53	7.5	19.5	24.8	+ steel case + pcb cap
385/363*30	392/356*36		1.05	15	39	49.5	+ steel case + pcb cap
405/325*40	413/317*46	I(MA)	180	820	2500	18000	+ steel case + pcb cap
405/325*40	413/317*46	V(MV)	5	72	188	242	+ steel case + pcb cap
410/375*20	418/367*25	I(MA)	180	900	2700	18000	+ steel case + pcb cap
410/375*20	418/367*25	V(MV)	1.1	16	42	52.5	+ steel case + pcb cap
420/120*50	428/115*56	I(MA)	130	600	1800	18000	+ steel case + pcb cap
420/120*50	428/115*56	V(MV)	24	350	880	1130	+ steel case + pcb cap
440/363*10	448/355*16	I(MA)	200	900	2700	18000	+ steel case + pcb cap
440/363*10	448/355*16	V(MV)	1.2	17	45	58	+ steel case + pcb cap
440/363*15	448/355*21	V(MV)	1.8	25.5	67.5	87	+ steel case + pcb cap
460/363*10	468/355*16	I(MA)	200	900	2700	18000	+ steel case + pcb cap
460/363*10	468/355*16	V(MV)	1.5	22	56	73	+ steel case + pcb cap
460/363*15	468/355*21	V(MV)	2.25	33	84	109.5	+ steel case + pcb cap
460/363*10	493/355*16	I(MA)	210	950	2850	18000	+ steel case + pcb cap
460/363*10	493/355*16	V(MV)	2	28	72	92	+ steel case + pcb cap
460/363*15	493/355*21	V(MV)	3	42	108	138	+ steel case + pcb cap
510/480*10	517/473*16	I(MA)	240	1100	4650	18000	+ steel case + pcb cap
510/480*10	517/473*16	V(MV)	0.48	7	19	22.5	+ steel case + pcb cap
510/480*15	517/473*21	V(MV)	0.72	10.5	29.5	>33.8 <44	+ steel case + pcb cap
560/480*10	567/472*16	I(MA)	250	1150	3500	18000	+ steel case + pcb cap
560/480*10	567/472*16	V(MV)	1.25	17	47	60	+ steel case + pcb cap
560/480*15	567/472*21	V(MV)	1.9	25.5	70.5	90	+ steel case + pcb cap
630/480*10	638/472*16	I(MA)	270	1250	3700	18000	+ steel case + pcb cap
630/480*10	638/472*16	V(MV)	2.4	34.5	88	113	+ steel case + pcb cap
630/480*15	638/472*21	V(MV)	3.6	51.8	132	169.5	+ steel case + pcb cap
80/55*30	85/50*35	I(MA)	35	150	450	4500	+ steel case + pcb cap
80/55*30	85/50*35	V(MV)	1.2	18	45	57	+ steel case + pcb cap

In future , we will put forward more and more new styles and service .
We sincerely welcome all circles to supplysamplesfordesign and process .

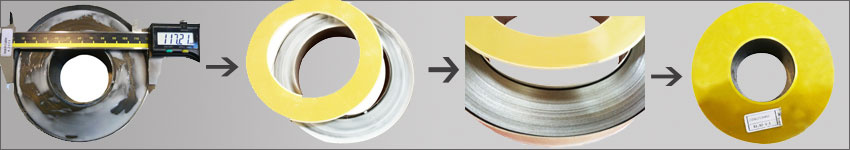

Craftsmanship

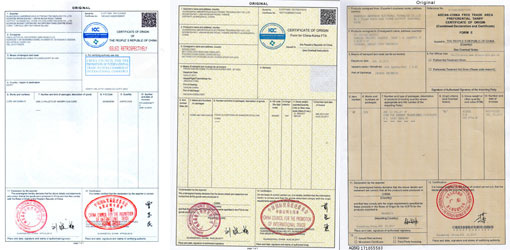

Our export certification

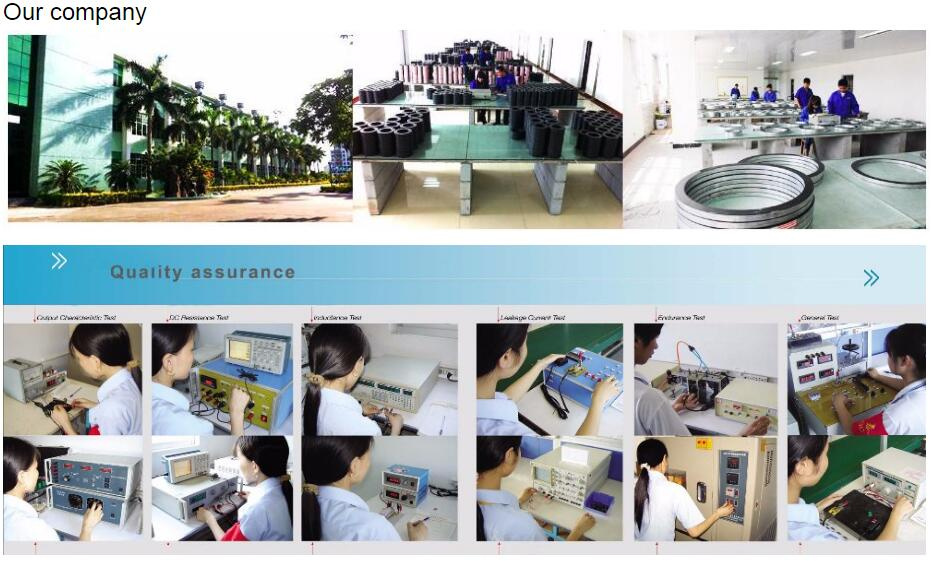

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

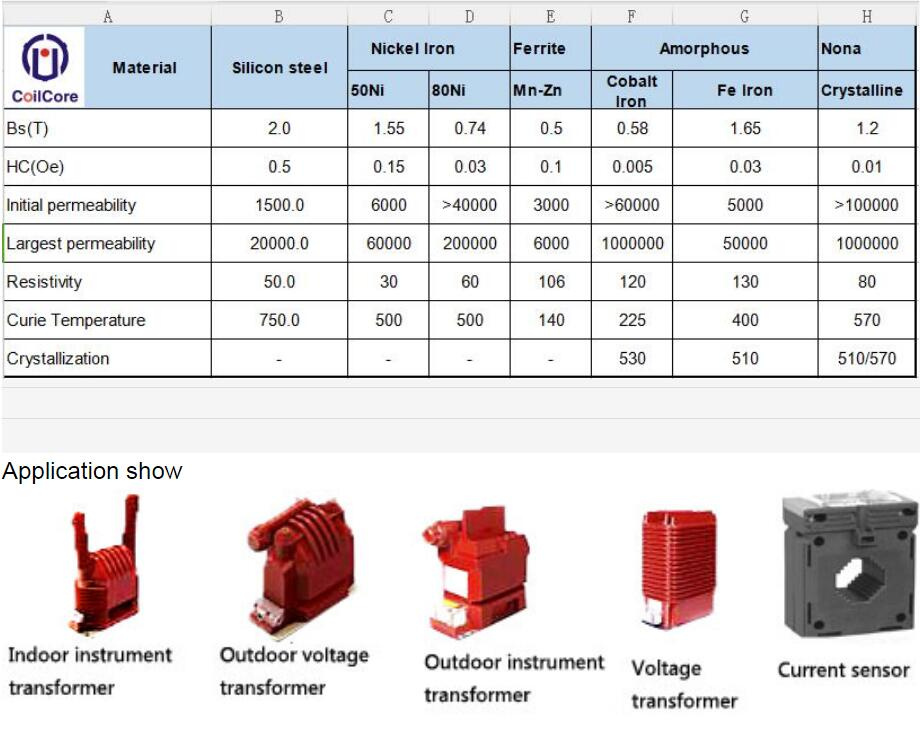

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
