Product Description

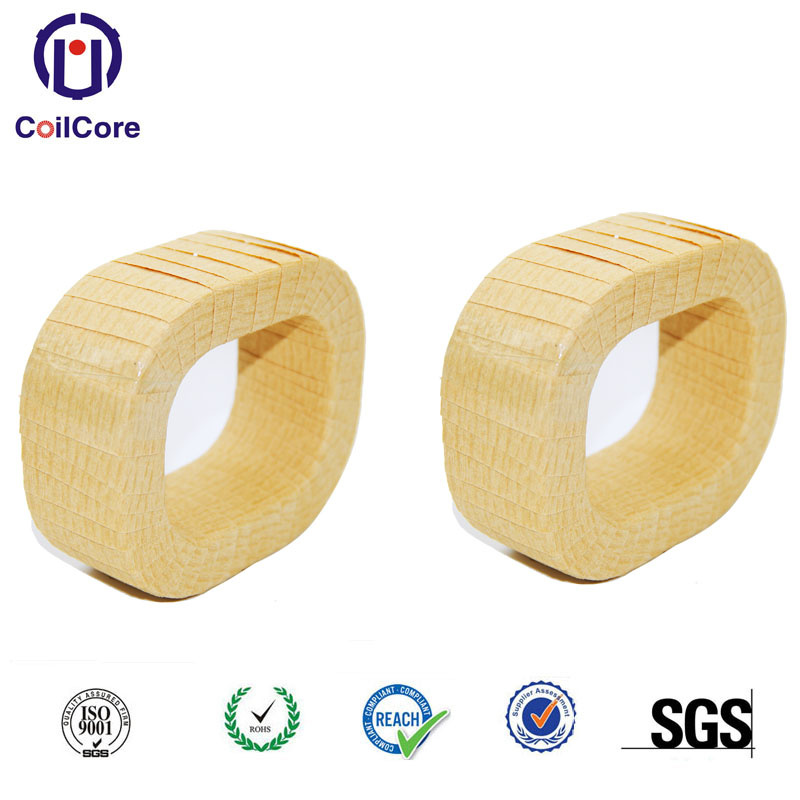

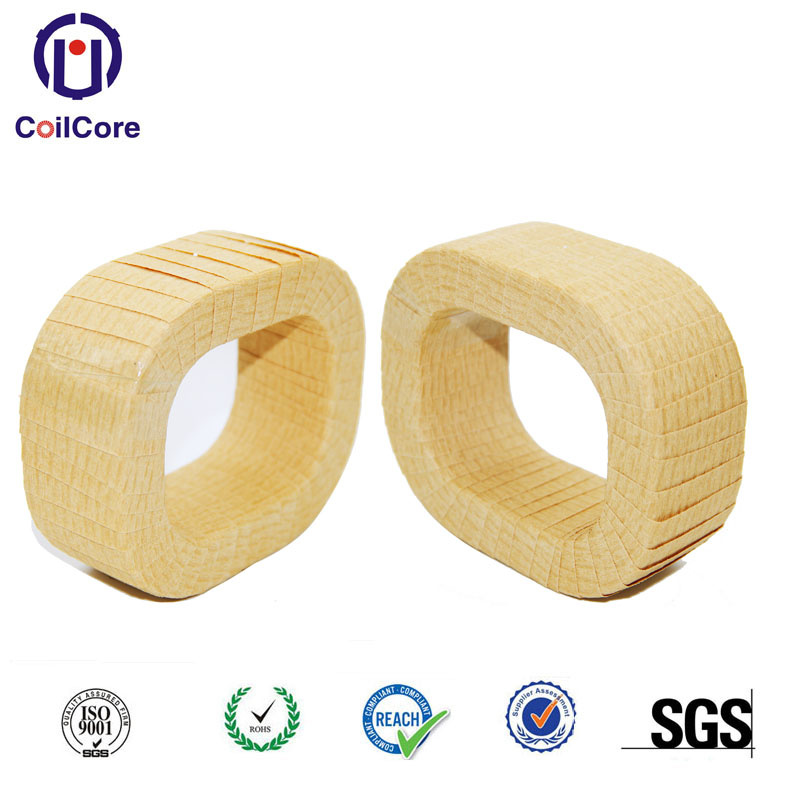

The part No:(NR20X90-15X20-P)![](/proimages/44f3j00RGdtfKJyrwqr/instrument-current-transformer-cores.jpg)
![](/proimages/44f3j00fRATGNwnLdcp/instrument-current-transformer-cores.jpg)
Core Size | Core Caps | (,) Specification |
Packing Requirements |
I(MA) | 55 | 230 | 700 | 7000 |
115/95x10 | 120/90x15 |
V(MV) | 0.32 | 4.8 | 11.7 | 15.0 | DMC two plastic cases |
115/95x15 | 120/90x20 | 0.48 | 7.2 | 17.6 | 22.5 | DMC two plastic cases |
115/95x20 | 120/90x25 | 0.64 | 9.6 | 23.4 | 30.0 | DMC two plastic cases |
115/95x25 | 120/90x30 | 0.8 | 12 | 29.3 | 37.5 | DMC two plastic cases |
115/95x30 | 120/90x35 | 0.96 | 14.4 | 35.1 | 45.0 | DMC two plastic cases |
120/80x10 | 125/75*16 | I(MA) | 48 | 220 | 660 | 6600 | DMC two plastic cases |
V(MV) | 0.65 | 9.5 | 23.5 | 29.5 |
120/80x20 | 125/75*26 | 1.3 | 19 | 47 | 59 | DMC two plastic cases |
120/90x10 | 125/85*17 | I(MA) | 52 | 230 | 700 | 7000 | DMC two plastic cases |
V(MV) | 0.48 | 7.1 | 17.5 | 23 |
120/90x15 | 125/85*22 | 0.72 | 10.7 | 26.3 | 34.5 | DMC two plastic cases DMC two plastic cases |
120/90x20 | 125/85*26 | 0.96 | 14.2 | 35.0 | 46 |
120/90x25 | 125/85*31 | 1.2 | 17.8 | 43.8 | 57 | DMC two plastic cases |
120/90x30 | 125/85*36 | 1.44 | 21.3 | 52.5 | 69 | DMC two plastic cases |
120/95x10 | 125/90*16 | I(MA) | 52 | 240 | 720 | 7200 | DMC two plastic cases |
V(MV) | 0.4 | 6 | 14.6 | 19 |
120/95x15 | 125/90*21 | 0.6 | 9 | 21.9 | 28.5 | DMC two plastic cases |
120/95x20 | 125/90*26 | 0.8 | 12 | 29.2 | 38 | DMC two plastic cases |
125/105x20 | 100/130*26 | I(MA) | 55 | 260 | 770 | 7700 | DMC two plastic cases
DMC two plastic cases |
V(MV) | 0.65 | 9.5 | 23.5 | 30.5 |
125/60x55 | 130/55*62 | I(MA) | 45 | 210 | 610 | 6100 |
V(MV) | 5.7 | 85 | 210 | 270 |
125/90x10 | 130/85*16 | I(MA) | 52 | 240 | 720 | 7200 | DMC two plastic cases |
| 0.55 | 8.30 | 20.5 | 26.5 |
125/90x15 | 130/85*21 | V(MV) | 0.83 | 12.0 | 30.8 | 39.8 | DMC two plastic cases |
125/90x20 | 130/85*26 | 1.10 | 17.0 | 41.0 | 53 | DMC two plastic cases |
125/90x50 | 130/85*56 | 2.75 | 42.0 | 102.5 | 132.5 | DMC two plastic cases |
130/80x20 | 135/75*26 | I(MA) | 52 | 230 | 700 | 7000 | |
V(MV) | 1.60 | 23.00 | 59.00 | 76.00 |
130/85x10 | 135/80*16 | I(MA) | 52 | 240 | 720 | 7200 | |
V(MV) | 0.70 | 10.50 | 26.50 | 34.00 |
130/85x15 | 135/80*21 | 1.05 | 15.75 | 39.75 | 51.00 | |
130/85x20 | 135/80*26 | 1.40 | 21.00 | 53.00 | 68.00 | |
130/90x10 | 135/85*16 | I(MA) | 52 | 240 | 720 | 7200 | DMC two plastic cases |
V(MV) | 0.65 | 9.50 | 23.50 | 30.50 |
130/90x15 | 135/85*21 | 0.98 | 14.25 | 35.25 | 45.50 | |
130/90x20 | 135/85*26 | 1.30 | 19.00 | 47.00 | 61.00 | DMC two plastic cases
DMC two plastic cases |
140/100x10 | 145/95*16 | I(MA) | 55 | 260 | 800 | 8000 |
V(MV) | 0.64 | 9.5 | 23.5 | 30.5 |
140/100x20 | 145/95*26 | 1.28 | 19 | 47 | 61 | DMC two plastic cases
DMC two plastic cases |
140/105x10 | 145/100*16 | I(MA) | 60 | 270 | 820 | 8200 |
V(MV) | 0.55 | 8.3 | 20.5 | 26.5 |
140/105x20 | 145/100*26 | 1.1 | 16.6 | 41 | 53 | DMC two plastic cases |
140/110x10 | 145/105*16 | I(MA) | 60 | 280 | 830 | 8300 | DMC two plastic cases |
V(MV) | 0.48 | 7 | 17.5 | 23 |
140/110x15 | 145/105*21 | 0.72 | 10.5 | 26.25 | 34.5 | DMC two plastic cases |
140/110x20 | 145/105*26 | 0.96 | 14 | 35 | 46 | DMC two plastic cases |
140/110x30 | 145/105*36 | 1.44 | 21 | 52.5 | 69 | DMC two plastic cases |
140/115x10 | 145/110*16 | I(MA) | 65 | 280 | 850 | 8500 | |
V(MV) | 0.4 | 6 | 14.5 | 19 |
140/120x10 | 145/115*16 | I(MA) | 65 | 290 | 870 | 8700 | DMC two plastic cases |
V(MV) | 0.32 | 4.8 | 11.8 | 15.2 |
140/85x20 | 145/80*26 | I(MA) | 55 | 250 | 760 | 7600 | |
V(MV) | 1.8 | 26 | 65 | 83 |
145/105x10 | 150/100*17 | I(MA) | 60 | 280 | 820 | 8200 | DMC two plastic cases |
V(MV) | 0.66 | 9.6 | 23.5 | 30.2 |
145/105x15 | 150/100*22 | 0.99 | 14.4 | 35.3 | 45.3 | DMC two plastic cases |
145/105x20 | 150/100*27 | 1.32 | 19.2 | 47 | 60.4 | DMC two plastic cases |
145/105x30 | 150/100*36 | 1.98 | 28.8 | 70.5 | 90.6 | DMC two plastic cases
DMC two plastic cases |
150/100x10 | 155/95*15 | I(MA) | 60 | 280 | 830 | 8300 |
V(MV) | 0.8 | 11.8 | 29.5 | 38 |
150/100x15 | 155/95*21 | 1.2 | 17.7 | 44.3 | 57 | DMC two plastic cases DMC two plastic cases |
150/100x30 | 155/95*35 | 2.4 | 35.4 | 88.5 | 114 |
150/110*15 | 155/105*21.5 | I(MA) | 60 | 290 | 870 | 8700 | DMC two plastic cases
DMC two plastic cases |
V(MV) | 0.95 | 14 | 35.5 | 45.5 |
150/120*15 | 155/115*21.5 | I(MA) | 65 | 300 | 900 | 9000 |
V(MV) | 0.75 | 10.5 | 26.5 | 34 |
150/86*10 | 155/81*16 | I(MA) | 55 | 270 | 790 | 7900 | |
V(MV) | 1 | 15 | 37.5 | 48 |
150/86*20 | 155/81*21 | 2 | 30 | 75 | 96 | DMC two plastic cases |
155/95*20 | 160/90*26 | I(MA) | 60 | 280 | 840 | 8400 | DMC two plastic cases |
V(MV) | 2.5 | 26 | 75 | 91 |
155/95*50 | 160/90*56 | 6.4 | 65 | 195 | 230 | DMC two plastic cases |
160/125*10 | 165/120*16 | I(MA) | 70 | 310 | 950 | 9500 | DMC two plastic cases |
V(MV) | 0.56 | 8 | 20.6 | 26.5 |
160/125*15 | 165/120*21 | 0.84 | 12 | 30.9 | 39.8 | DMC two plastic cases |
160/125*20 | 165/120*26 | 1.12 | 16 | 41.2 | 59.7 | DMC two plastic cases |
170/130*15 | 175/125*21 | I(MA) | 75 | 330 | 1000 | 10000 | |
V(MV) | 1 | 14 | 35 | 45 |
175/125*10 | 180/120*16 | I(MA) | 75 | 330 | 1000 | 10000 | DMC+ plastic case + pcb cap |
| 0.8 | 11.8 | 29.4 | 38 |
175/125*15 | 180/120*21 | V(MV) | 1.2 | 17.7 | 44.1 | 57 | DMC+ plastic case + pcb cap |
175/125*20 | 180/120*26 | 1.6 | 23.6 | 58.8 | 76 | DMC+ plastic case + pcb cap |
175/145*60 | 180/140*67 | I(MA) | 75 | 350 | 1070 | 10700 | + steel case + pcb cap |
V(MV) | 3 | 42 | 105 | 136 |
175/155*10 | 180/150*16 | I(MA) | 80 | 360 | 1100 | 11000 | + steel case + pcb cap |
V(MV) | 0.35 | 4.7 | 11.7 | 15 |
180/115*10 | 185/110*16 | I(MA) | 70 | 330 | 990 | 9900 | DMC+ plastic case + pcb cap |
V(MV) | 1 | 15.4 | 38 | 49 |
180/115*15 | 185/110*21 | 1.5 | 23.1 | 57 | 73.5 | DMC+ plastic case + pcb cap |
180/115*20 | 185/110*26 | 2 | 30.8 | 76 | 98 | DMC+ plastic case + pcb cap |
180/115*30 | 185/110*36 | 3 | 46.2 | 114 | 147 | + steel case + pcb cap |
180/140*15 | 185/135*21 | I(MA) | 80 | 350 | 1070 | 10700 | + steel case + pcb cap |
V(MV) | 0.95 | 14 | 35 | 45 |
190/171*10 | 195/166*16 | I(MA) | 90 | 410 | 1200 | 12000 | DMC+ plastic case + pcb cap |
V(MV) | 0.3 | 4.2 | 11.2 | 14.3 |
190/171*15 | 195/166*21 | 0.45 | 6.3 | 16.8 | 21.5 | + steel case + pcb cap |
190/171*20 | 195/166*26 | 0.6 | 8.4 | 22.4 | 28.6 | + steel case + pcb cap |
200/160*10 | 205/155*16 | I(MA) | 90 | 410 | 1200 | 12000 | + steel case + pcb cap |
V(MV) | 0.65 | 9.5 | 23.5 | 30 |
205/85*50 | 210/80*56 | I(MA) | 70 | 330 | 960 | 9600 | + steel case + pcb cap |
V(MV) | 9.5 | 140 | 350 | 450 |
205/85*55 | 210/80*61 | 10.5 | 154 | 385 | 495 | + steel case + pcb cap |
210/175*10 | 215/170*16 | I(MA) | 100 | 420 | 1300 | 13000 | + steel case + pcb cap |
V(MV) | 0.55 | 8.2 | 20.5 | 26.5 |
220/130*10 | 227/123*16 | I(MA) | 85 | 390 | 1200 | | + steel case + pcb cap |
V(MV) | 1.4 | 21 | 53 | 68 |
220/130*15 | 227/123*21 | 2.1 | 31.5 | 79.5 | 102 | + steel case + pcb cap |
220/130*20 | 227/123*26 | 2.8 | 42 | 106 | 136 | + steel case + pcb cap |
| | I(MA) | 80 | 380 | 1150 | 11500 | |
230/115*10 | 237/108*16 | V(MV) | 1.8 | 27 | 68 | 87 | steel case + pcb cap |
230/115*15 | 237/108*21 | 2.7 | 40.5 | 102 | 130.5 | + steel case + pcb cap |
230/140*50 | 237/133*56 | I(MA) | 90 | 420 | 1250 | 12500 | + steel case + pcb cap |
V(MV) | 7 | 105 | 265 | 340 |
230/185*20 | 237/178*26 | I(MA) | 100 | 460 | 1400 | 14000 | + steel case + pcb cap |
V(MV) | 1.4 | 21 | 53 | 68 |
235/155*40 | 242/148*46 | I(MA) | 95 | 430 | 1300 | 13000 | + steel case + pcb cap |
V(MV) | 5 | 75 | 187 | 241 |
240/200*20 | 247/193*26 | I(MA) | 110 | 500 | 1500 | 15000 | + steel case + pcb cap |
V(MV) | 1.3 | 19 | 47 | 61 |
240/205*10 | 247/198*16 | I(MA) | 110 | 500 | 1500 | 15000 | + steel case + pcb cap |
V(MV) | 0.55 | 8.3 | 20.5 | 26.5 |
245/220*40 | 252/213*46 | I(MA) | 110 | 500 | 1550 | 15500 | + steel case + pcb cap |
V(MV) | 1.6 | 23.5 | 59 | 75 |
260/190*10 | 267/183*16 | I(MA) | 110 | 500 | 1500 | 15000 | + steel case + pcb cap |
V(MV) | 1.1 | 16.5 | 41 | 53 |
265/185*40 | 272/178*46 | I(MA) | 110 | 500 | 1500 | 15000 | + steel case + pcb cap |
V(MV) | 5 | 75 | 187 | 242 |
265/230*30 | 272/223*36 | I(MA) | 120 | 550 | 1650 | 16500 | + steel case + pcb cap |
V(MV) | 1.6 | 25 | 62 | 79 |
285/265*10 | 292/258*16 | I(MA) | 140 | 600 | 1800 | 18000 | + steel case + pcb cap |
V(MV) | 0.31 | 4.4 | 11.5 | 15 |
290/260*10 | 297/253*16 | I(MA) | 140 | 650 | 1800 | 18000 | + steel case + pcb cap |
V(MV) | 0.47 | 11.5 | 17.5 | 22.5 |
305/280*20 | 312/273*26 | I(MA) | 140 | 650 | 1950 | 18000 | + steel case + pcb cap |
V(MV) | 0.8 | 11.5 | 29.5 | 38 |
310/245*10 | 317/238*16 | I(MA) | 140 | 620 | 1850 | 18000 | + steel case + pcb cap |
V(MV) | 1 | 15 | 38 | 49 |
310/245*30 | 317/238*36 | 3 | 45 | 114 | 147 | + steel case + pcb cap |
| | I(MA) | 180 | 830 | 2500 | 18000 | |
385/363*10 | 392/356*16 |
V(MV) | 0.35 | 5 | 13 | 16.5 | steel case + pcb cap |
385/363*15 | 392/356*21 | 0.53 | 7.5 | 19.5 | 24.8 | + steel case + pcb cap |
385/363*30 | 392/356*36 | 1.05 | 15 | 39 | 49.5 | + steel case + pcb cap |
405/325*40 | 413/317*46 | I(MA) | 180 | 820 | 2500 | 18000 | + steel case + pcb cap |
V(MV) | 5 | 72 | 188 | 242 |
410/375*20 | 418/367*25 | I(MA) | 180 | 900 | 2700 | 18000 | + steel case + pcb cap |
V(MV) | 1.1 | 16 | 42 | 52.5 |
420/120*50 | 428/115*56 | I(MA) | 130 | 600 | 1800 | 18000 | + steel case + pcb cap |
V(MV) | 24 | 350 | 880 | 1130 |
440/363*10 | 448/355*16 | I(MA) | 200 | 900 | 2700 | 18000 | + steel case + pcb cap |
V(MV) | 1.2 | 17 | 45 | 58 |
440/363*15 | 448/355*21 | 1.8 | 25.5 | 67.5 | 87 | + steel case + pcb cap |
460/363*10 | 468/355*16 | I(MA) | 200 | 900 | 2700 | 18000 | + steel case + pcb cap |
V(MV) | 1.5 | 22 | 56 | 73 |
460/363*15 | 468/355*21 | 2.25 | 33 | 84 | 109.5 | + steel case + pcb cap |
460/363*10 | 493/355*16 | I(MA) | 210 | 950 | 2850 | 18000 | + steel case + pcb cap |
V(MV) | 2 | 28 | 72 | 92 |
460/363*15 | 493/355*21 | 3 | 42 | 108 | 138 | + steel case + pcb cap |
510/480*10 | 517/473*16 | I(MA) | 240 | 1100 | 4650 | 18000 | + steel case + pcb cap |
V(MV) | 0.48 | 7 | 19 | 22.5 |
510/480*15 | 517/473*21 | 0.72 | 10.5 | 29.5 | >33.8 <44 | + steel case + pcb cap |
560/480*10 | 567/472*16 | I(MA) | 250 | 1150 | 3500 | 18000 | + steel case + pcb cap |
V(MV) | 1.25 | 17 | 47 | 60 |
560/480*15 | 567/472*21 | 1.9 | 25.5 | 70.5 | 90 | + steel case + pcb cap |
630/480*10 | 638/472*16 | I(MA) | 270 | 1250 | 3700 | 18000 | + steel case + pcb cap |
V(MV) | 2.4 | 34.5 | 88 | 113 |
630/480*15 | 638/472*21 | 3.6 | 51.8 | 132 | 169.5 | + steel case + pcb cap |
80/55*30 | 85/50*35 | I(MA) | 35 | 150 | 450 | 4500 | + steel case + pcb cap |
V(MV) | 1.2 | 18 | 45 | 57 |
In future , we will put forward more and more new styles and service .
We sincerely welcome all circles to supplysamplesfordesign and process .

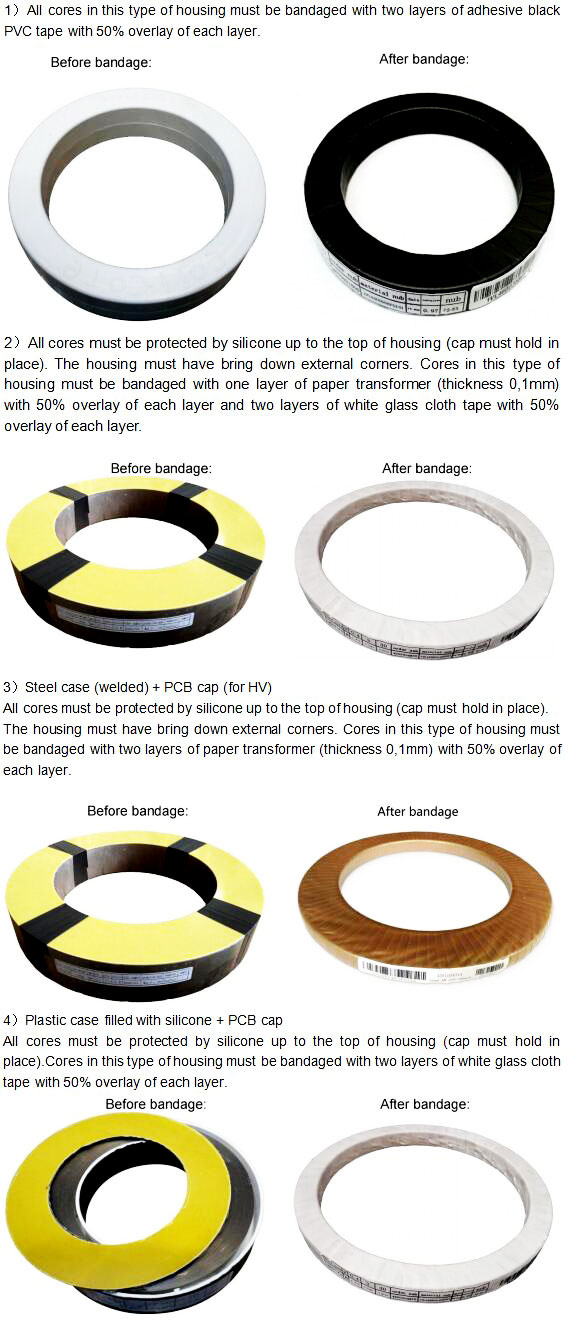

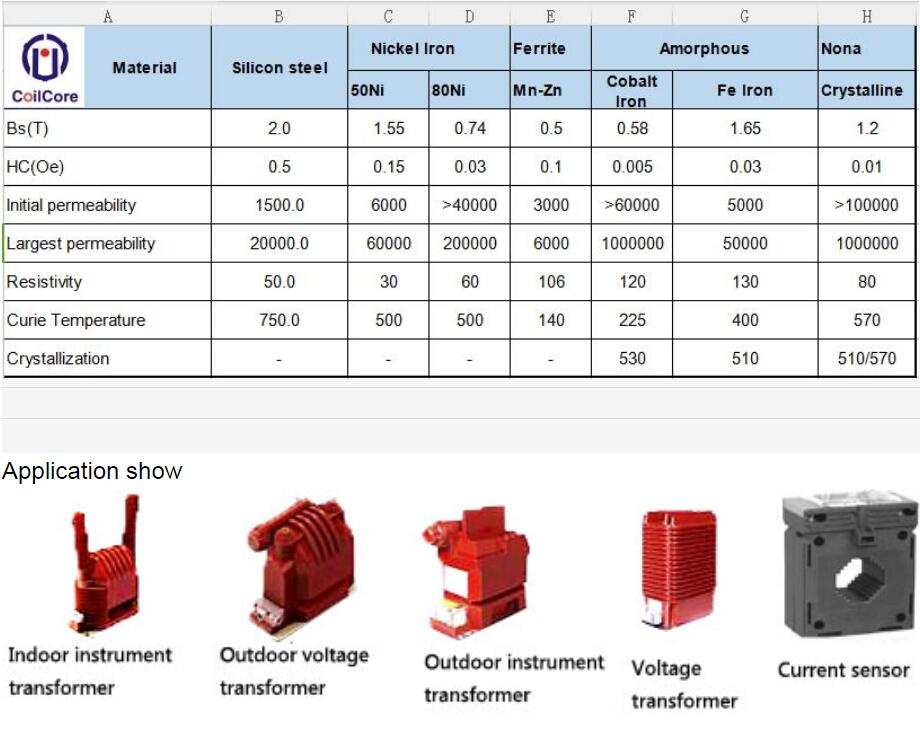

Craftsmanship
![](/proimages/44f3j00drFTyNOJeRcn/instrument-current-transformer-cores.jpg)
![](/proimages/44f3j00mpyQnJOscGbF/instrument-current-transformer-cores.jpg)
![](/proimages/44f3j00apFTNtOrHYkm/instrument-current-transformer-cores.jpg)
More details:
Delivery Terms | EXW,FOB,CIF |
Payment Terms | T/T ,HSBC,PayPal,Western Union,Paypal |
Lead time | Sample time:3-5working days Order time:12-15 working days |
FAQ |
Q: Are you trading company or manufacturer ? |
A: We are factory. |
Q: How long is your delivery time? |
A: Generally it is 3-5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. |
Q: Do you make customized products ? |
A: Yes,we have a prefessional team to make custom products as your requirement. |
Q: What is your terms of payment ? |
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. |
If you have another question, pls feel free to contact us as below: |
The Best Service Comes From: |
Quality and Performance |
Reliability and Durability |
Competitive Price |
Rapid Design and Delivery |
Reliable and Honest Partnership |
Addr :No.1 JiShan BuXia Lu,TianHe District, Guangzhou City, China
Postcod :510655
Tel :+86-20-85649266
Fax :+86-20-85649263
Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:
1. Common Mode Filter Chokes
2. Current Transformer
3. Differential Mode Chokes
4. Automotive Chokes (for car audio)
5. Magnetic Amplifier
6. PFC Chokes
7. ISDN Splitter
8. GFCI (Ground-Fault Circuit Interrupters)
9. ELCB (Earth Leakage Circuit Breaker)
10. ALCI(Appliance Leakage-Current Interrupters)
11. Core and Current Transformer for energy meters (Watt hour -meters )
We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.
Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
