| Prod Model: |
120x90x15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Saturation Magnetic Induction: |
Low Core Loss |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single and Three |
Product Description
Specifications:
High permeability, which lead to low phase and amplitude error
Very high saturation flux density compared with Permalloy, which bring higher measurement current range
Low core loss
Excellent temperature stability
The typical parameters comparison of the common soft magnetic materials used for current transformer cores:
| Basic parameters | Nano-crystalline core | Permalloy (1J85) core | Silicon steel core |
| Saturation magnetic flux density (Bs) | 1.25T | 0.75T | 2.03T |
| Initial permeability (μ0) | 8~12×104 | 5~8×104 | 103 |
| Maximum permeability (μm) | 60×104 | 60×104 | 4×104 |
| Curie Temperature (ºC) | 570 | 400 | 740 |
| Density (g/cm3) | 7.25 | 8.75 | 7.65 |
| Lamination factor | 0.7 | 0.9 | 0.95 |
| Thickness (mm) | 0.03 | 0.15 | 0.3 |

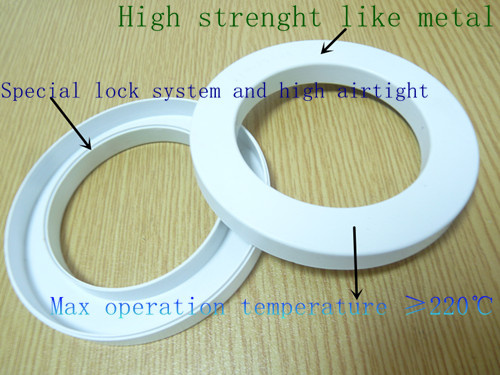

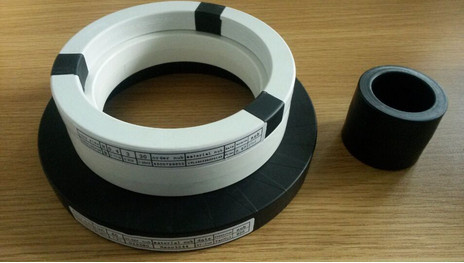

Ring Cores:
| No. | Core Size(mm) | Case size(mm) | Core Weight (kg/pc) | Turns ratio N1: N2 is 1:1; Input current (mA), 50Hz; Output voltage (mV) |
| 1 | 1105/1165×15 | 1095/1175×25 | 8.35 | Excitation current | 450 | 1200 | 2000 | |
| Excitation voltage | 0.59 | 2.36 | 5.28 | |
| 2 | 415/520×15 | 409/526×23 | 6.08 | Excitation current | 50 | 250 | 700 | |
| Excitation voltage | 0.4 | 3 | 11 | |
| 3 | 305/490×15 | 299/496×23 | 9.1 | Excitation current | 350 | 900 | | |
| Excitation voltage | 5 | 20 | | |
| 4 | 315/395×35 | 309/401×43 | 8.2 | Excitation current | 120 | 400 | | |
| Excitation voltage | 3 | 11 | | |
| 5 | 198/248×30 | 192/254×37 | 2.76 | Excitation current | 100 | 200 | 500 | 1000 |
| Excitation voltage | 2 | 6 | 35 | 90 |
| 6 | 198/248×20 | 192/254×27 | 1.84 | Excitation current | 100 | 200 | 500 | 1000 |
| Excitation voltage | 1.5 | 3.5 | 25 | 60 |
| 7 | 155/200×30 | 150/205×36 | 2 | Excitation current | 100 | 190 | 1000 | |
| Excitation voltage | 2.5 | 9.5 | 80 | |
| 8 | 140/180×30 | 135/185×36 | 1.58 | Excitation current | 40 | 80 | 240 | |
| Excitation voltage | 1 | 2.9 | 15 | |
| 9 | 130/190×30 | 125/195×36 | 2.38 | Excitation current | 40 | 80 | 240 | |
| Excitation voltage | 1.2 | 3.8 | 17 | |
| 10 | 100/140×30 | 95/145×36 | 1.19 | Excitation current | 30 | 120 | 500 | |
| Excitation voltage | 0.85 | 6.8 | 68 | |
| 11 | 90/130×30 | 85/135×36 | 1.09 | Excitation current | 30 | 120 | 500 | |
| Excitation voltage | 0.7 | 6 | 55 | |
| 12 | 90/125×25 | 85/130×31 | 0.78 | Excitation current | 30 | 120 | 500 | |
| Excitation voltage | 0.9 | 7 | 70 | |
| 13 | 80/120×30 | 75/125×36 | 0.99 | Excitation current | 200 | 500 | | |
| Excitation voltage | 20 | 65 | | |
| 14 | 85/115×30 | 80/120×36 | 0.74 | Excitation current | 30 | 120 | 500 | |
| Excitation voltage | 0.7 | 6.5 | 55 | |
| 15 | 85/125×20 | 80/130×26 | 0.7 | Excitation current | 30 | 120 | 500 | |
| Excitation voltage | 0.62 | 5.5 | 50 | |
Rectangular Cores:
| Core Size(mm) | Case Size(mm) | Core Weight(kg/pc) | Turns Ratio N1:N2 | Excitation Current (mA) | Excitation Voltage (mV) |
| 55*97/77*119X25 | 50*92/82*114X30 | 0.53 | 1:1 | 25 | 0.45 |
| 1:1 | 95 | 2.2 |
| 1:1 | 1500 | 5.3 |
| 70*90/100*120x30 | 65*85/105*125x36 | 0.81 | 1:1 | 200 | 15 |
| 1:1 | 500 | 50 |
| 75*95/105*125x25 | 70*90/110*130x30 | 0.7 | 1:1 | 70 | 2 |
| 1:1 | 175 | 8 |
| 80*95/120*135x25 | 75*90/125*140x30 | 1.09 | 1:1 | 80 | 1.7 |
| 1:1 | 600 | 41 |
| 90*90/160*160x30 | 85*85/165*165x36 | 2.4 | 1:1 | 100 | 6 |
| 1:1 | 500 | 100 |
| 1:1 | 1000 | 140 |
| 135*135/260*260x10 | 130*130/265*265x16 | 2.3 | 1:1 | 100 | 1.5 |
| 1:1 | 500 | 32 |
| 82*602/138*658x45 | 75*595/145*665x55 | 8.8 | 1:1 | 100 | 1.2 |
| 1:1 | 1000 | 45 |
| 1:1 | 2000 | 120 |
Note: Nanocrystalline cores of other specifications can be provided upon request of users.
