| Prod Model: |
BDV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
450*500*450mm |
| Weight: |
50kgs |
| Working Pressure: |
133PA |
| Power Supply: |
AC220V±10%,50Hz(Optional) |
| Output Voltage: |
60kv,80kv,100kv |
| Capacity: |
1.2kVA,1.6kVA,2.0kVA |
| Breakdown Sensitivity: |
<2kv |
| Time Of Breakdown: |
≤10ms |
| Working Conditions: |
0~40c |
| Structure: |
Post Insulator |
| Material: |
FRP/GRP |
| Type: |
B Type Insulator |
| Application: |
Low-voltage |
| Brand: |
Nakin |
Product Description

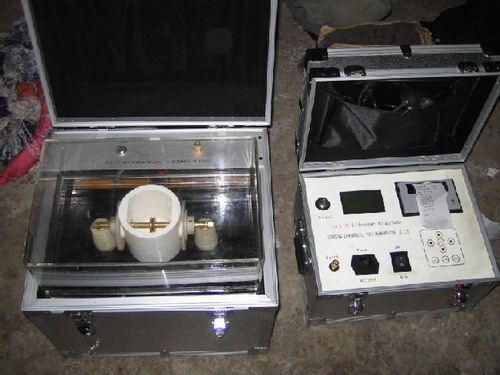

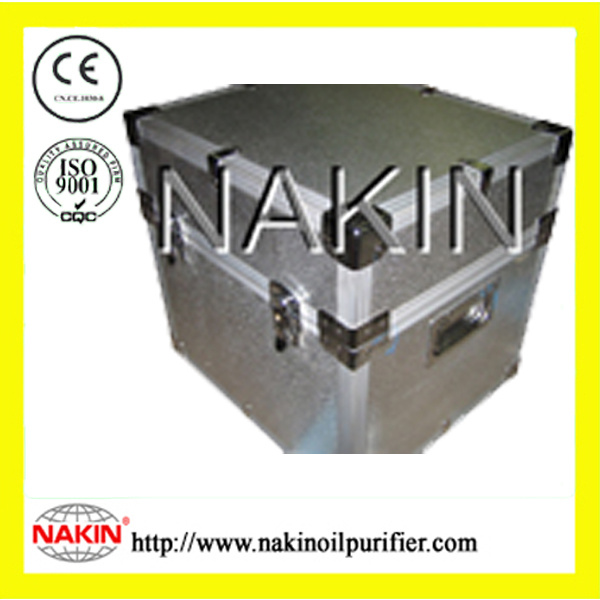

IIJ-II BDV 60~100KV Insulation Oil Sensor
Application:
In the electric power industry, insulating oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil. Series IIJ-II oil tester is special for testing insulating oil's dielectric strength. IIJ-II Automatic oil tester is designed according to international standard of IEC156. Adopt industrial single chip as controller, apply large integrate circuit, new type I/O interface, LCD displayer, combined with special testing and anti-jamming technologies which greatly improve the tester's performance.
Features:
1. Simple operation, high degree of automation (just press a button)
2. Using the menu management, easy to understand the input parameters
3. Can store 99 groups oil sample test data to facilitate future access to and print, test data can be stored in power off state for 10 years.
4. The system clock in the power off state can continue to run.
5. Through the RS232 port with a software upgrade or with the PC, on-line detection.
6. Anti-interference ability
7. Detection with high precision
8. Small size, light weight, easy operations
Technical Parameters:
1. Power supply: AC220V± 10%, 50Hz
2. Output voltage: 0~80KV(60KV\80KV)
3. Capacity: 1.2KVA(1.6KVA\2.0KVA)
4. Speed of pressure rise: About 2KV/S
5. Voltage test precision: ± 3%
6. Breakdown sensitivity: <2KV
7. Wave difference: ≤ 3%
8. Time of breakdown: ≤ 10ms
Working altitude: <1500m (if over 1500m can be designed specially)
11. Dimension: 480mm*460mm*460mm
