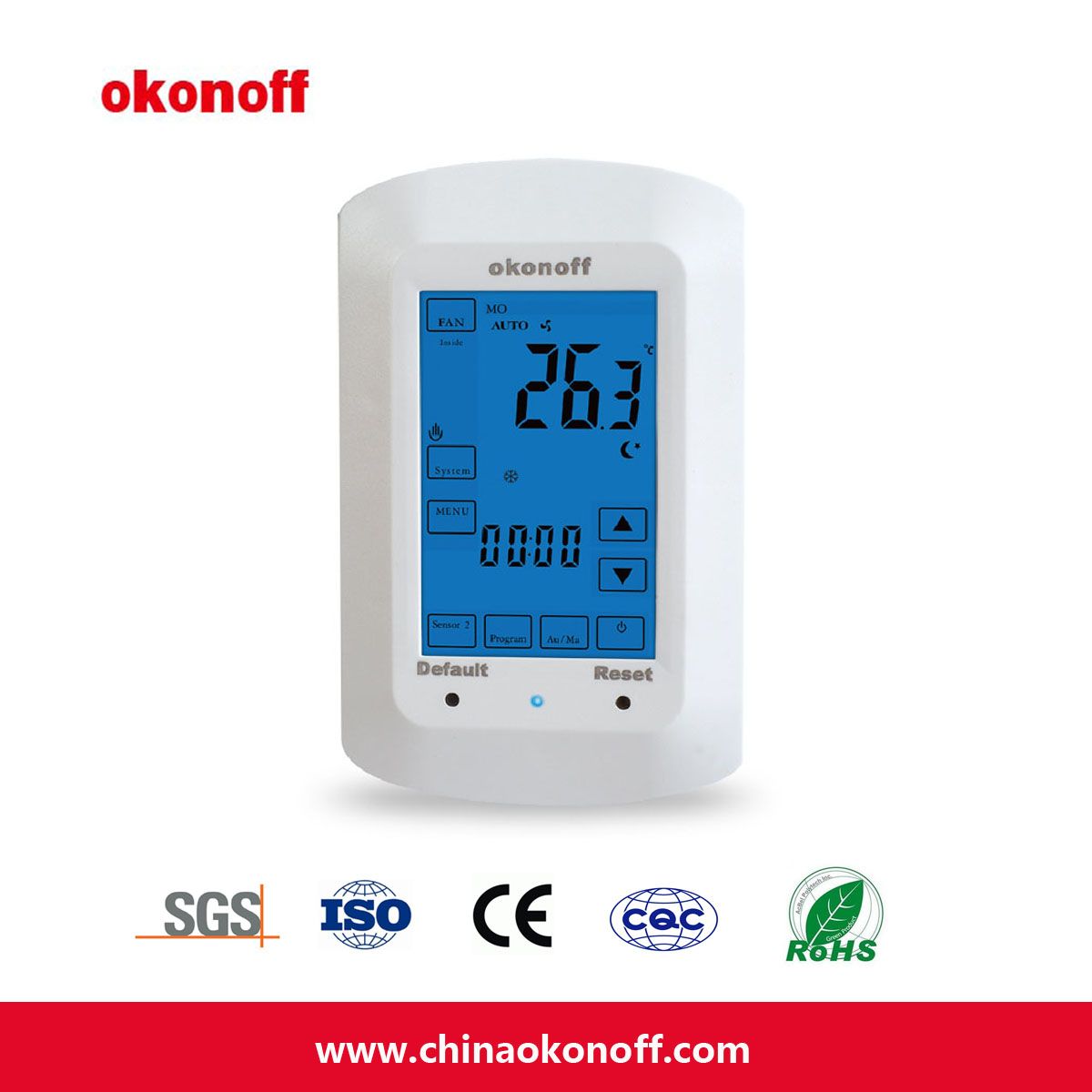

HVAC 2-Pipe Air-Conditioning Room Temperature Controller (TSP750E)
| Price: |
US $ 23-26.06/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
TSP750E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
220VAC± 10% |
| Working Environment: Temperature: |
-10~60ºC |
| Relative Humidity: |
<85% |
| Load Current: |
≤ 3A (Resistive Load ) |
| Temperature Control Range: |
5~35ºC |
| Usage: |
Air Conditioner |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Material: |
PC+ABS Engineer Plastic |
Product Description
TSP750 series of touch screen thermostats are widely applied to controlling the terminals of central air-conditioning system such as fan coil, motorized valve and wind valve in top grade apartments, villas, office buildings and so on. We suggest you combine this product together with our 3-wire & 1-control motorized valves, such as DQ200, CKF7000 or EFOT series of valves. The simple and decent style will stand the test of time.
Feature:
1. Special LCD display, with blue LED backlight, visual effect is better
2. Week of automatic control, can programming temperature and time
3. Temperature resolution: 0.1ºC
4. Power lost memory, recovery the working state after the power resumption
5. With key-lock function, present others misoperation
6. With mainframe linkage function, please refer to model
Model spec:| Model | Apply to equipment | Language | Back light | 5-1-1day programming | Mainframe linkage |
| TSP750BF | Four pipe | English +character | √ | √ | |
| TSP750BFH1 | Four pipe | English +character | √ | √ | √ |
| TSP750E | Two pipe | English +character | √ | √ | |
| TSP750H1 | Two pipe | English +character | √ | √ | √ |

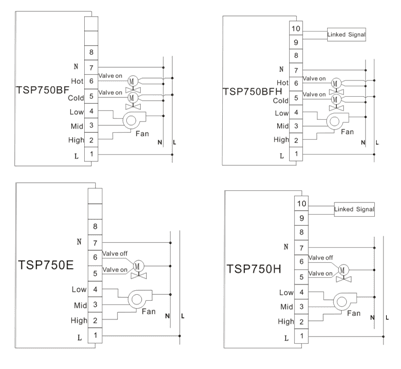

Wiring diagram:
Installation:
