Hottest Products 50kv AC DC Hipot Testing Hv Testing Transformer
Price: |
US $ 1000-2000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
50KV/100KV/120KV/150KV/200KV/250KV/400KV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity Range: |
1.5kVA---250kVA |
High Voltage Range: |
50kv----400kv |
Voltage Booster Type: |
Oil, Dry, Inflatable |
Control Box Type: |
Bench, Box |
Used For: |
Large Generator and Cable Withstand Voltage Test |
Usage Same As: |
Power Frequency Voltage Withstand Tester |
High Frequency Voltage Output Current: |
30mA-2500mA |
Low Frequency Voltage Input Current: |
Low Frequency Voltage Input Current |
Certificate: |
CE ISO |
Delivery Time: |
15-30 Work Days |
Application: |
High Voltage Test |
Phase: |
Three |
Coil: |
Core-type Transformer |
Cooling Method: |
Oil-immersed Type Transformer |
Winding Type: |
Separated Winding Transformer |
Brand: |
Huazheng |
Product Description
Hottest Products 50kv AC DC Hipot Testing Hv Testing Transformer
I.Packaging & Delivery for Hottest Products AC DC Hipot Testing Hv Testing Transformer :
Packaging Details: | 1.HS code is 8504210000; 2.Wooden box with foam inside, 3.No fumigation,not influence the delivery; 4.Standard of CE ISO IEC. 5.Customer OEM packing is also available 6.Can be delivered by air,ship. 5.10 PCS/1*20'ft, too much models and different size. |
Delivery Detail: | Voltage Testing Transformer:15 days after receiving payment |
II.Product Description for Hottest Products AC DC Hipot Testing Hv Testing Transformer :
It is used to test dielectric strength of a variety of electrical products, electrical components, insulation material and other predetermined voltages .
III.Features for Hottest Products AC DC Hipot Testing Hv Testing Transformer :
There are four kinds of high voltage testing transformer according to the medium points:
1. Oil-immersed high voltage transformer test: large capacity, cheap, convenient maintenance, mainstream products.
2. Inflatable high voltage test transformer : interrupter resistance, and light weight.
3. Dry typehigh voltage testing transformer: light weight, light volume, can run backward.
4.Series type high voltage testing transformer: small volume, low voltage, light weight, easy to transport and install.
IV.Parameter for Hottest Products AC DC Hipot Testing Hv Testing Transformer:
1.Technical parameters of HZY series alternating current test transformers
Model | Capacity (KVA) | Output Voltage (KV) | Output Current (mA) | Low Frequency Voltage input | Change | Tempera- ture(ºC)raised/ 30 minute |
V | A |
HZY-1.5 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
HZY -3 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
HZY -5 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
HZY -10 | 10 | 50 | 200 | 220/380 | 50/26 | 500 | 10 |
HZY-20 | 20 | 50 | 400 | 380 | 53 | 500 | 10 |
HZY -30 | 30 | 50 | 600 | 380 | 79 | 500 | 10 |
HZY -40 | 40 | 50 | 800 | 380 | 105 | 500 | 10 |
HZY -50 | 50 | 50 | 1000 | 380 | 132 | 500 | 10 |
HZY -5 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
HZY -10 | 10 | 100 | 100 | 200/380 | 50/26 | 1000 | 10 |
HZY -20 | 20 | 100 | 200 | 380 | 53 | 1000 | 10 |
HZY -30 | 30 | 100 | 300 | 380 | 79 | 1000 | 10 |
HZY -40 | 40 | 10 | 400 | 380 | 105 | 1000 | 10 |
HZY -50 | 50 | 100 | 500 | 380 | 132 | 1000 | 10 |
HZY -100 | 100 | 100 | 100 | 500 | 263 | 1000 | 10 |
HZY -150 | 150 | 100 | 1500 | 500 | 300 | 1000 | 10 |
HZY -200 | 200 | 100 | 2000 | 500 | 400 | 1000 | 10 |
HZY -250 | 250 | 100 | 2500 | 380 | 500 | 1000 | 10 |
HZY -20 | 20 | 150 | 133 | 380 | 53 | 1500 | 10 |
HZY -30 | 30 | 150 | 200 | 380 | 79 | 1500 | 10 |
HZY -50 | 50 | 150 | 333 | 380 | 132 | 1500 | 10 |
HZY -100 | 100 | 150 | 666 | 500 | 263 | 1500 | 10 |
HZY -150 | 150 | 150 | 1000 | 500 | 300 | 1500 | 10 |
HZY -200 | 200 | 150 | 1333 | 500 | 400 | 1500 | 10 |
HZY -250 | 250 | 150 | 1666 | 380 | 500 | 1500 | 10 |
HZY -30 | 30 | 200 | 150 | 380 | 79 | 2000 | 10 |
HZY -50 | 50 | 200 | 250 | 380 | 132 | 2000 | 10 |
HZY -100 | 100 | 200 | 500 | 380 | 263 | 2000 | 10 |
HZY -150 | 150 | 200 | 750 | 500 | 300 | 2000 | 10 |
HZY -200 | 200 | 200 | 1000 | 500 | 400 | 2000 | 10 |
HZY -250 | 250 | 200 | 1250 | 500 | 500 | 2500 | 10 |
HZY -30 | 30 | 250 | 120 | 380 | 79 | 2500 | 10 |
HZY -50 | 50 | 250 | 200 | 380 | 132 | 2500 | 10 |
HZY -100 | 100 | 250 | 400 | 380 | 263 | 2500 | 10 |
HZY -150 | 150 | 250 | 600 | 500 | 300 | 2500 | 10 |
HZY -200 | 200 | 250 | 800 | 500 | 400 | 2500 | 10 |
HZY -250 | 250 | 250 | 1000 | 500 | 500 | 2500 | 10 |
Note: 100KVA and the above input voltage may enhance to 3000V or proposed by the users.
2. Technical parameters of TDM alternating and direct current test transformers
Model | Capacity (KVA) | Output (KV) | Current (Ma) | Low voltage input | Change | Tempera- ture(ºC)raised/ 30 minute |
AC | DC | AC | DC | V | A |
TDM -1.5 | 1.5 | 50 | 70 | 30 | 15 | 200 | 7.5 | 500 | 10 |
TDM -3 | 3 | 50 | 70 | 60 | 15 | 200 | 15 | 500 | 10 |
TDM -5 | 5 | 50 | 70 | 100 | 15 | 200/380 | 25 | 500 | 10 |
TDM -10 | 10 | 50 | 70 | 200 | 100 | 380 | 50/26 | 500 | 10 |
TDM -20 | 20 | 50 | 70 | 400 | 100 | 380 | 53 | 500 | 10 |
TDM -30 | 30 | 50 | 70 | 600 | 100 | 380 | 79 | 500 | 10 |
TDM -40 | 40 | 50 | 70 | 800 | 100 | 380 | 105 | 500 | 10 |
TDM -50 | 50 | 50 | 70 | 1000 | 100 | 380 | 132 | 500 | 10 |
TDM -5 | 5 | 100 | 140 | 100 | 50 | 200/380 | 25 | 1000 | 10 |
TDM -10 | 10 | 100 | 140 | 200 | 100 | 380 | 50/26 | 1000 | 10 |
TDM -20 | 20 | 100 | 140 | 300 | 100 | 380 | 53 | 1000 | 10 |
TDM -30 | 30 | 100 | 140 | 400 | 100 | 380 | 79 | 1000 | 10 |
TDM -40 | 40 | 100 | 140 | 600 | 100 | 380 | 105 | 1000 | 10 |
TDM -50 | 50 | 100 | 140 | 1000 | 100 | 380 | 132 | 1000 | 10 |

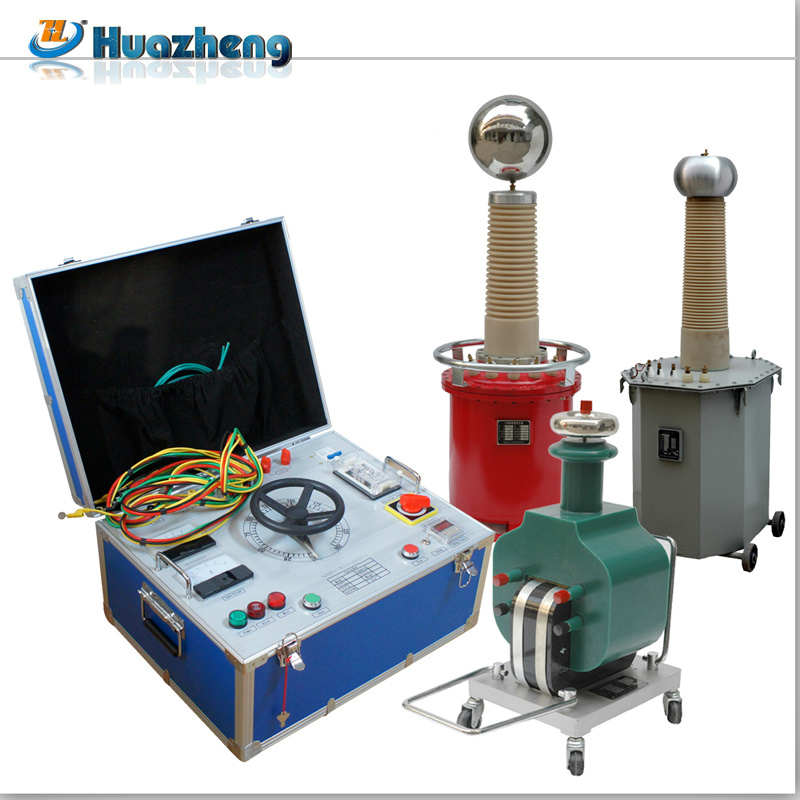

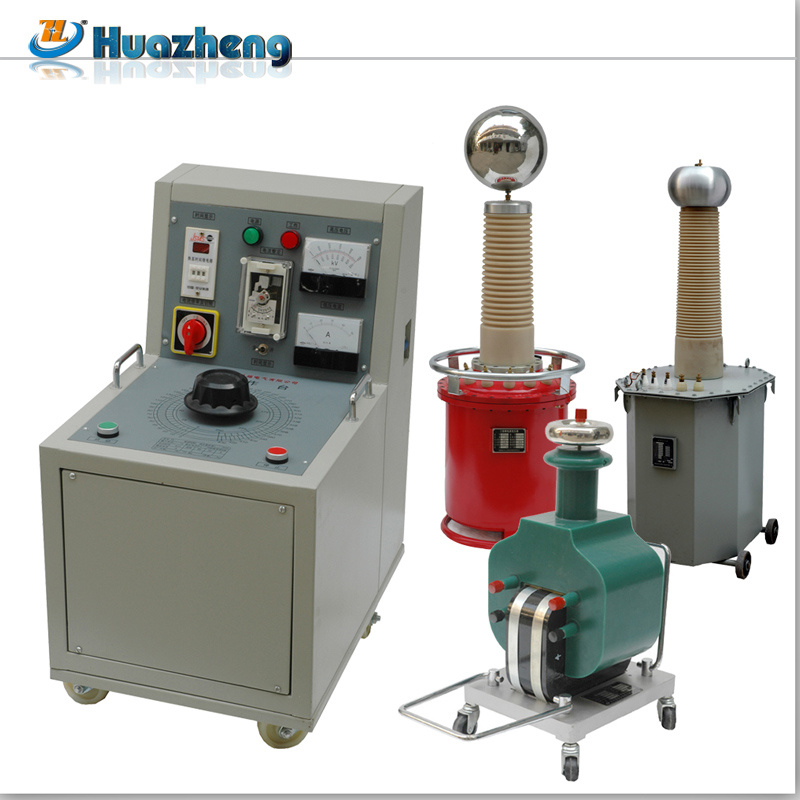

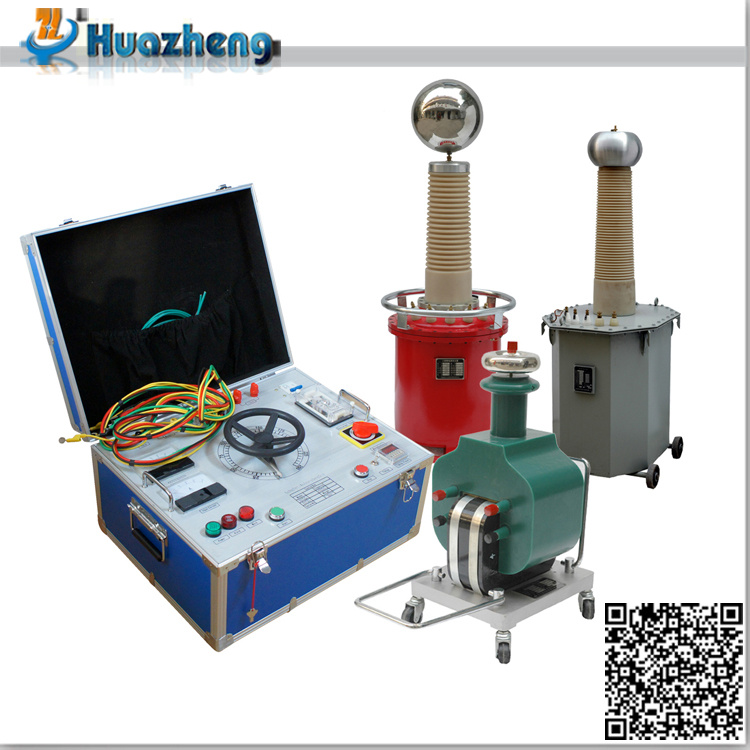

V.Detailed Photos for AC DC Hipot Testing HV Testing Transformer :
