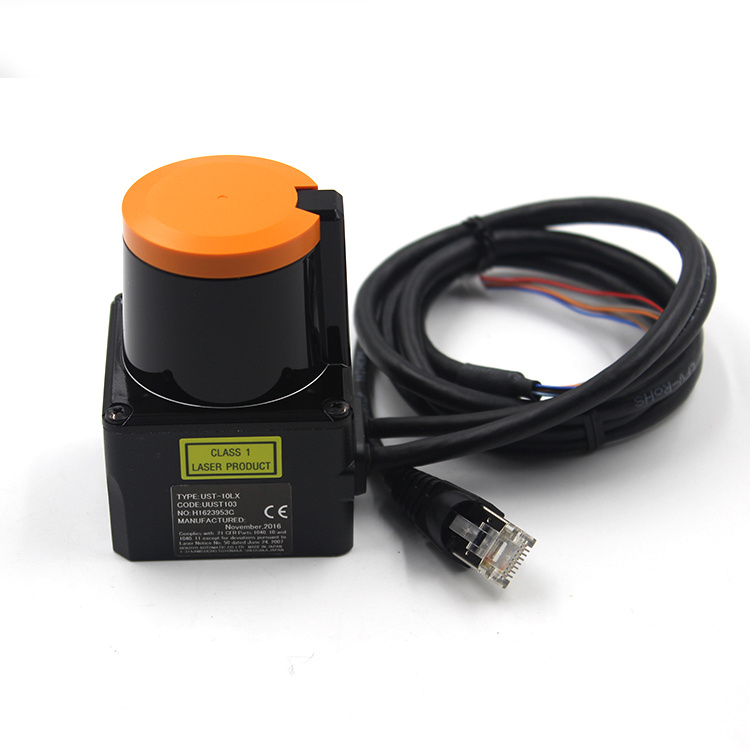

Hokuyo Ust-10lx 10m Laser Range Finder
| Price: |
US $ 1700-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
UST-10LX |
| Part No.: |
Ust-10lx |
| Brand: |
Hokuyo |
| Detectable Range: |
0.06-10m |
| Speed: |
25ms |
| Voltage: |
10-30VDC |
| Interface: |
Ethernet 100base-Tx |
| Angular Resolution: |
0.25degree |
| Protection IP: |
IP65 |
| Scan Angle: |
270degree |
| Accuracy: |
+/-40mm*1 |
| Type: |
Infrared Sensor Switch |
| Principle: |
Photoelectric |
| Standard: |
Standard |
| Application: |
Warehouse |
| Certification: |
CE |
Product Description
Hokuyo UST-10LX 10M distance Scanning Laser Rangefinder
Features
-> The smallest and the lightest of its kind, 130g
-> Mid-detection range 10m/20m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.25°
-> It is possible to detect size, position and the moving direction of objects.

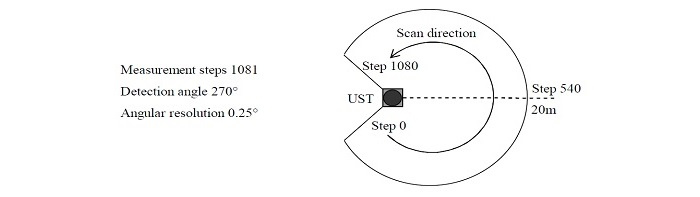

Laser scanning image
Technical Parameter
| Product name | Scanning Laser Range Finder |
| Model | UST-10LX | UST-10LX-H01 | UST-20LX | UST-20LX-H01 |
| Supply voltage | DC 12V/DC 24V (operation range 10 to 30V ripple within 10%) |
| Supply current | 150mA or less (during start up 450mA is necessary.) |
| Light source | Laser semiconductor (905nm), Laser class 1(IEC60825-1:2007) |
| Detection range | 0.06m to 10m (white Kent sheet)
0.06m to 4m (diffuse reflectance 10% )
Max. detection distance : 30m | 0.06m to 20m (white Kent sheet)
0.06m to 8m (diffuse reflectance 10% )
Max. detection distance : 60m |
| Accuracy | ±40mm*1 |
| Repeated accuracy | σ<30mm*1 |
| Scan angle | 270° |
| Scan speed | 25ms (Motor speed 2400rpm) |
| Angular resolution | 0.25° | 0.125° | 0.25° | 0.125° |
| Start up time | Within 10 sec (start up time differs if malfunction is detected during start up) |
| Input | IP reset input, photo-coupler input(current 4mA at ON) |
| Output | Synchronous Output, photo coupler open collector output 30VDC 50mA MAX. |
| Interface | Ethernet 100BASE-TX |
| LED display | Power supply LED display(Blue) : Blinks during start up and malfunction state. |
| Surrounding intensity | Less than 15,000lx
Note : Avoid direct sunlight or other illumination sources as it may cause sensor malfunction |
| Ambient temperature and humidity | -10°C to +50°C, below 85%RH(without dew, frost) |
| Storage temperature and humidity | -30°C to +70°C, below 85%RH(without dew, frost) |
| Vibration resistance | 10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction
55 to 200Hz 98m / s2 sweep of 2min for 1hr in each X,Y and Z direction |
| Vibration resistance(Operating) | 55 to 150Hz 19.6m/s2 sweep of 2min for 30min in each X,Y and Z direction |
| Shock resistance | 196m/s2 (20G) X,Y and Z direction 10 times. |
| EMC standards | (EMI)
EN61326-1:2013
EN55011:2009 + A1:2010
(EMS)
EN61326-1:2013
EN61000-4-2:2009
EN61000-4-3:2006 + A1:2008 + A2:2010
EN61000-4-4:2012
EN61000-4-6:2009
EN61000-4-8:2010 |
| Protective structure | IP65 |
| Weight | 130g(Excluding cable) |
| Material | Front case: Polycarbonate, Rear case: Aluminum |
| Dimensions (W×D×H) | 50×50×70mm(sensor only) |
Dimension
