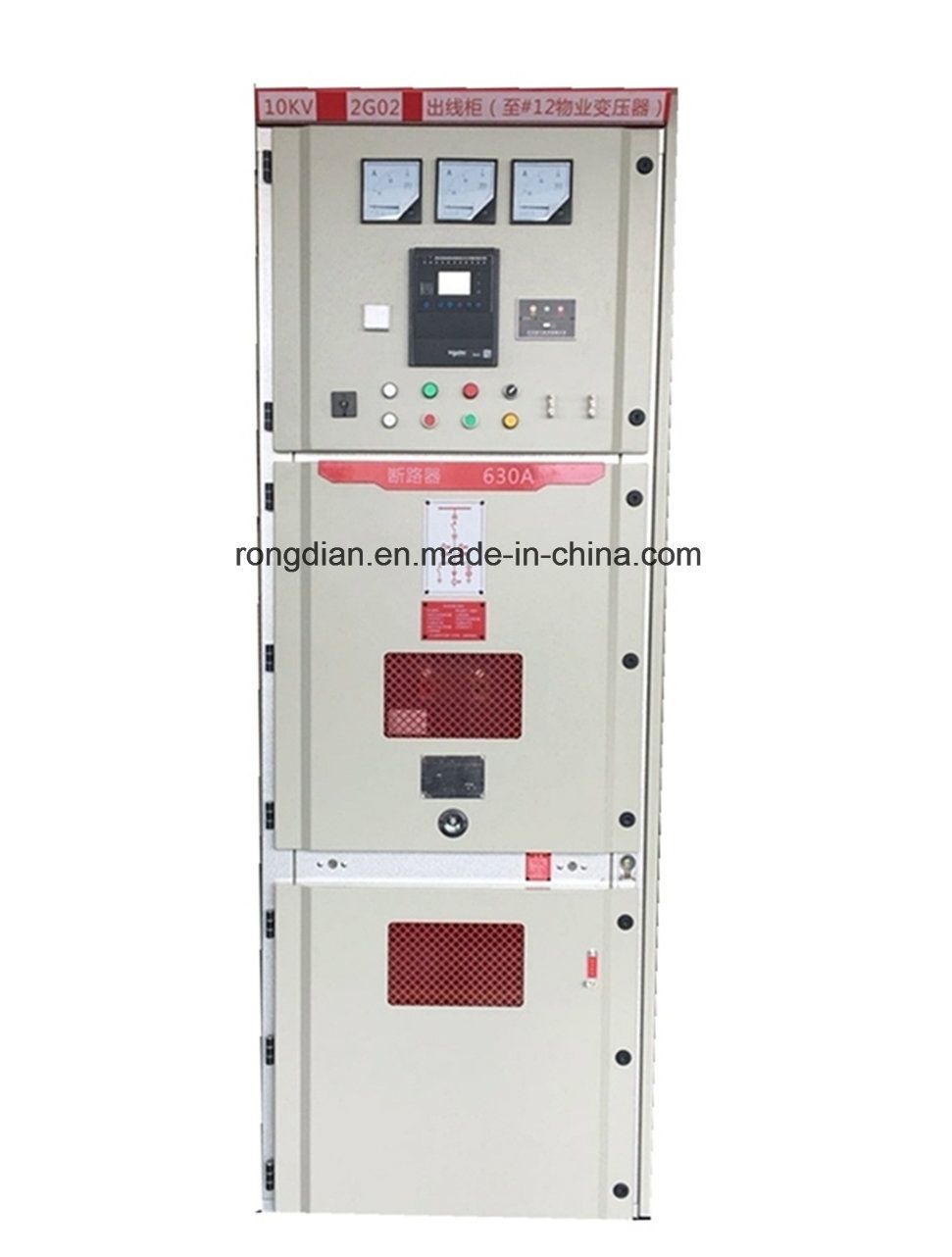

1. Product Name: Hihg Voltage 10 KV Metal Clad Outing Wire Switchgear
2. Product description:
Hihg Voltage 10 KV Metal Clad Outing Wire Switchgearis metal-enclosed combined type 10KV switch device, being applied to various distribution post,sub-section post and transformer substation as high voltage device of secondary distribution with its excellent performance, all performance parameters of which reach to and exceed domestic similar products' standard. GN15-12 series high voltage Ring Main Unit Switchgear is used intensively in the electronic power system in recent years and is promoted preferentially as high voltage product. It has completely replaced by the similar imported products.

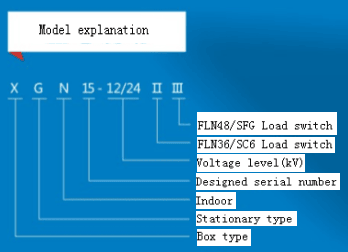

3. Model explanation
4. Performance features:
(1)Hihg Voltage 10 KV Metal Clad Outing Wire Switchgear is a new generation full cabinet of SF6 switchgear, which is applied in distribution automation, compact and extensible metal sealed switch equipment, which has those features of simple structure, flexible operation, reliable inter-lock and convenient installation and so on. It can provide satisfied technology solution for various applied places according to different users' demand. Added the advanced technology parameters, portable and flexible assemble solution, the sensor technology and the newest protective relay is used and then it can fully meet the demand of market changing.
(2)Hihg Voltage 10 KV Metal Clad Outing Wire Switchgear use FLN36/FLN48 model SF6 load switch, Schneider SC6 series load switch, ABB original SFG model, SF6 load switch/GN30 model isolated switch respectively and also it can assemble VS1 breaker or ABB original VD4 breaker and various fixed type breaker according to users' demand.
5. Main application:
XGN15-12/24 type modular SF6 ring main unit is applied in electricity system of alternative current 50Hz,12/24KV and widely is used in cable ring of industrial and civil and power supply terminal engineering project.
6. Technology Parameters:
| Incoming line cabinet | | |
| Item | Unit | Parameters |
| Rated voltage | kV | 12/24 |
| Rated current | A | 630/630 |
| Rated active load breaking current | A | 630/630 |
| Rated short time power frequency tolerant voltage 1 min | kV | 42/65 |
| Rated tolerant voltage by lightning impulse(Peak value) | kV | 75/125 |
| Rated short time tolrant current 3S | kA | 20/20 |
| Rated short time closing current(peak) | kA | 50/63 |
| Mechanical endurance | Time | ≥2000/2000 |
| Protection level of shell | - | IP3X / IP3X |
| Outing line cabinet | | |
| Item | Unit | Parameters |
| Rated voltage | kV | 12/24 |
| Rated current | A | 125/630 |
| Rated closed loop breaking current | A | 630/630 |
| Rated short circuit breaking current | kV | 31.5/ Limited fuse |
| Rated short-circuit closing current(peak) | kV | 80/ Limited fuse |
| Rated transfer current | A | 1700/1400 |
| Rated short time power frequency tolerant voltage 1 min | kA | 42/65 |
| Rated tolerant voltage by lightning impulse(Peak value) | kA | 75/125 |
| Mechanical endurance | Time | ≥2000/2000 |
| Protection level of shell | - | IP3X / IP3X |
