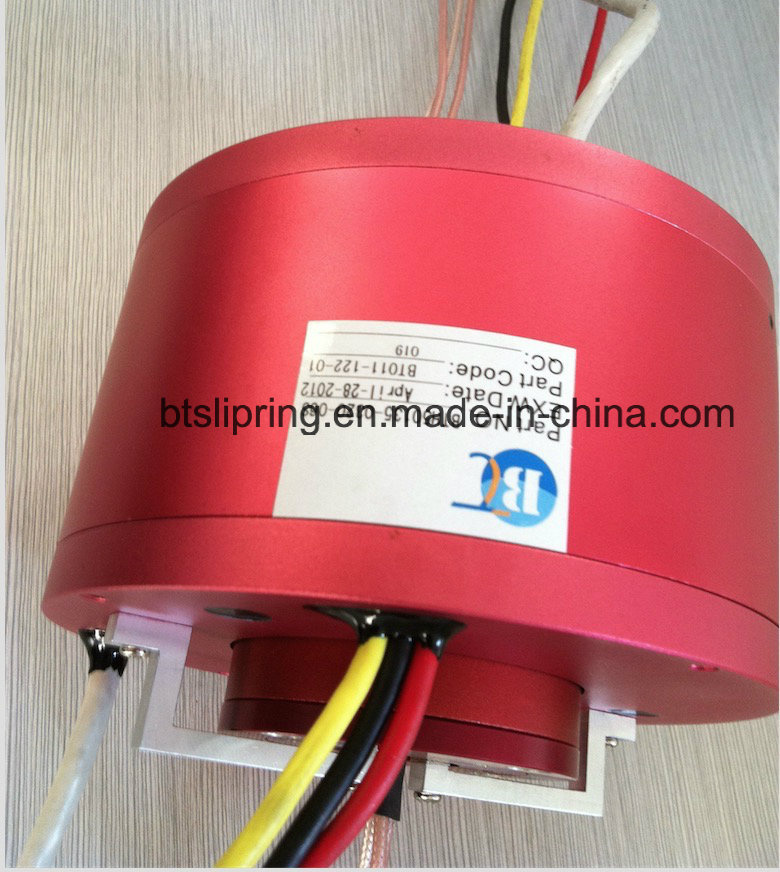

High Speed Slip Ring Compatible with Sensitive Signal
Price: |
US $ 500/Piece |
Min Order: |
3/Piece |
Pay Type: |
T/T,Western Union |
Prod Model: |
BTHGS |
Working Speed: |
Max 10,000 Rpm |
Life-Span: |
80,000,000round |
Dimension: |
Flexible |
Other: |
Hybrid Electrical with 3G-HDMI |
Contacting Material: |
Gold to Gold |
Connect Way: |
Fly Wires |
Product Description
High Speed Slip Ring Compatible with Sensitive Signal Apart from the standard slip rings, we offer our unique slip rings in tailor-made structures as per your special application requirements. The engineering staff utilizes its 20 years of expertise in slip rings to offer you what you have been looking for. A wide range of high speed slip rings are produced in different sizes, shapes, volumes metal types and applications. High speed slip ring Slip ring work at very high speed with the specified life span and without signal losing is always a challenge for slip ring designer & manufacturer, our RD team accumulate their 20 years experience in high speed slip ring researching, and they find good solutions on it such as contactless, adopt special contacting material , use special bearing or change the traditional configuration ,etc, the solutions proved to be very successfully and our high speed slip ring are widely used in military and industry.
Parameters:Mechanical :Working speed | High to 10,000rpm |
Operating temperature | -40ºC~ +100ºC |
Contact material | Precious metal |
IP Grade | IP54 |
Electrical:Circuit | 2 ~50 |
Current | 2A, 5A, 10,15A,20A,30A optional |
Signal | As per requested |
Voltage | ≤380V, 600V optional |
Dielectric strength | ≥1000V@50Hz between each circuit |
Insulation resistance | 1000MΩ@ 500VDC |
Electric noise | ≤7mΩ |
Lead wire size | As per requested Wire or Metal Pin |
Lead wire length | Standard in 200mm |
Features of high speed slip rings :- Speed can be high to 10,000rpm
- Wear-resistance
- Conduct safe and reliable
- Data transfer reliable at high speed rotating
- Easy installation and convenient delivery
- Workable in hostile environment(-40°C~ +100°C)
- Low torque
Alternatives of high speed slip rings:- Working speed
- Circuits
- Loading of each circuit
- Higher IP grade
- Connect way
- Different signal compatible
- Dimension
Benefit of high speed slip rings from ByTune:- Singal transfer reliable
- Long life-span
- Keep cool at high speed working
- Prompt delivery
- Affordable price
- Solution flexible
- Superior after-service
ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...
ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.
At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.
ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
