High Sensitivity Weighing Load Cell

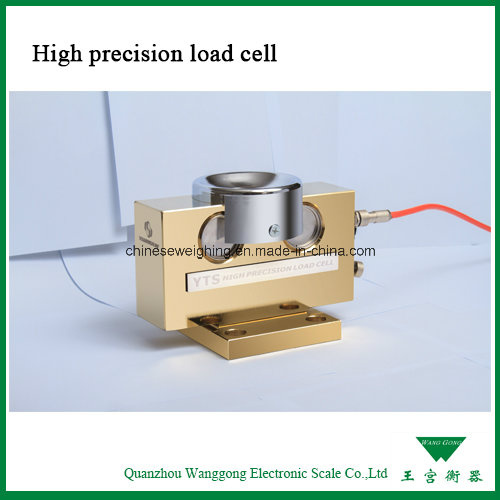

Name: High Sensitivity Weighing Load Cell
Brand: all-electronics-online.com
SKU: 685098021
Availability: InStock
Rating: 5 (77 reviews)

Price:	US $ 600-1200/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YTS
Product Name:	High Sensitivity Weighing Load Cell
Rated Load:	10t, 20t, 30t, 40t, 50t
Sensitivity:	2.0 Mv/V
Combined Error:	0.015mv/V
Zero Balance:	1.0 of Rated Output
Safe Overload:	150% of Rated Capability
Ultimate Oveload:	300% of Rated Capability
Material Elastomer:	Alloy Steel/Stainless Steel
Recommend Excitation:	12V (AC or DC)
Protection Class:	IP67/IP68

Product Description

High Sensitivity Weighing Load Cell

The main features of the load cell

Technology Specification
Item/Parameter	C2	C3	Unit
Rated load	10. 20. 30. 40. 50. 60		T
Max number of load cell verification intervals	2000	3000	d
Min load cell verification intervals	0.02	0.01	% of rated load
Sensitivity	2.0±0.1%		mV/V
Combined error	0.027	0.015	±% of rated output
Temperature effect on sensitivity	0.0024	0.0012	±% of rated output
Zero balance	1.0		±% of rated output
Input resistance	775±5		Ω(Ohms)
Out resistance	701±2		Ω(Ohms)
Insulation resistance	≥5000		MΩ(Mega-Ohms)
Safe overload	150		% of rated capacity
Ultimate overload	300		% of rated capacity
Operating temperature range	-30~+70/-20~+160		C/F
Recommend excitation	12		V(AC or DC)
Maximum excitation	24		V(AC or DC)
Material of elastomer	Alloy steel/Stainless steel
Protection class	IP67/IP68
Citation	OIML R60/GB7551-1997

Advantage:

Integrated style self balancing structure, improve raw material recovery after deformation performance
Adopt the most advanced elastic composite material, and improve the fatigue resistance and stability and revolutionary prolong service life
The weighing accuracy meet the C3 standards, fully meet user demand for large weighing high degree value
Antirust materials susceptible to oxidation corrosion defects
The patent waterproof technology, completely suitable for use in high humidity environment
High interchangeability, do not need to change the user habit of installation
Strong compatibility, can satisfy with the use of different digital agreement, digital product applies to be calibration without weight and other efficient setup program.
Personalization and flexible, customizable double circuit, without connection box, derivation model, tailored for the user, safeguard the rights and interests of users

Company profile:

Quanzhou Wanggong Electronic scales Co., Ltd is a leading ISO accredited manufacturer and supplier of weighing instruments, such as truck scales, electronic truck scales, weighbridge, floor scales, hopper weighing scales, platform scales, crane scales and all kinds of weighing system with 40 years experience in this field since 1976.

Our commitment to you

As an experienced manufacturer, we are committed to satisfying our customers' needs for-

* Quality products

* Reasonable prices

* Efficient and speedy deliveries

And last but not least,

* Professional customer service team to handle all your enquiries within 24 hours!

Our products:

As experts in this field, we are able to offer a wide range of weighing scales to our customers, including tailor-made products. Our products include, but not limited to the following:

Truck scales

Weighbridge

Electronic platform scales

Floor scales

Livestock scales

Hopper weighing scales

Belt scales

Unmanned automatic weighing system

Explosion-proof weighing products

Our machines

38 sets modern electronic testing equipment

800T Bending machine

Auto-welding machine

Cutting machine, max length 8 meters

Pre-arch machine
