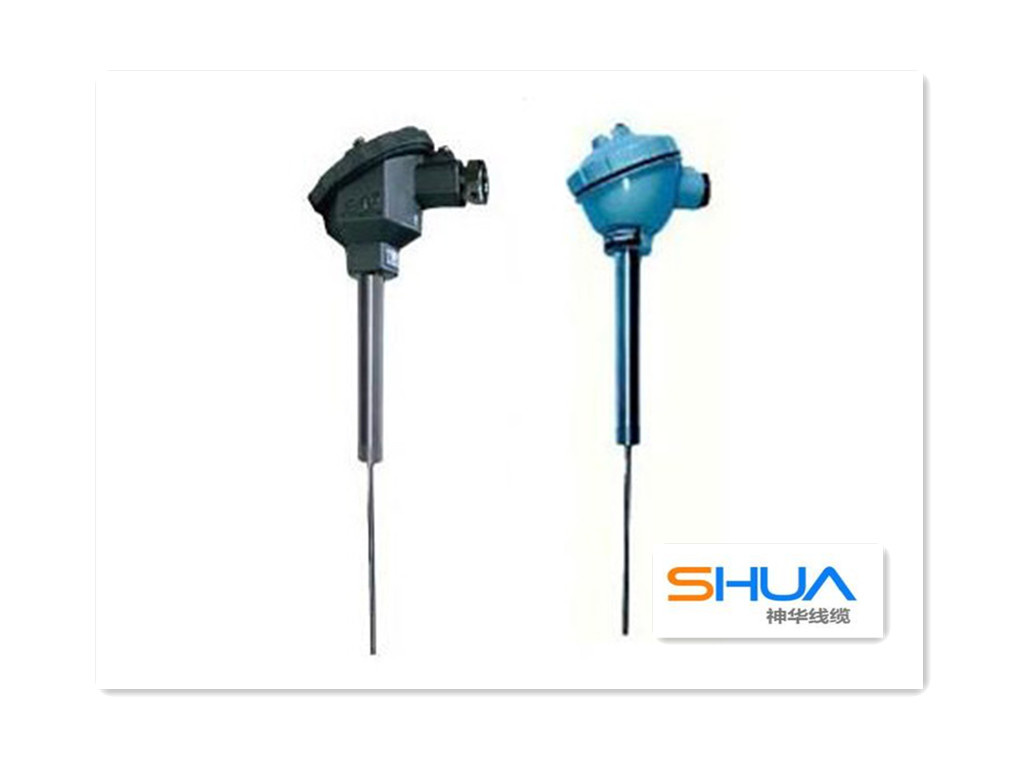

High Quality K Thermocouple

Name: High Quality K Thermocouple
Brand: all-electronics-online.com
SKU: 757041105
Availability: InStock
Rating: 5 (144 reviews)

Price:	US $ 0.1-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHUA0180
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Clients' Requirement
Measuring Medium:	Temperature
Site Display:	Site Display
Accuracy:	1.0
IP Rating:	IP65
Customized:	Customized
Certification:	ISO
Display Type:	LED
Type:	Wall-Mounted Current Type

Product Description

Specifications

Direct measurement of the production process of -200-800 range of liquid, steam and gas and solid medium surface temperature

Working condition
Flameproof heat resistance is the use of physical gap explosion-proof junction box and othercomponents of the design principles, with sufficient strength, all can produce a spark, arc and dangerous temperature components are sealed in the junction box cavity, when the cavity when the explosion occurred, can through a combination of surface gap flameout and cooling, so that the explosion flame and temperature sensor. To the outside of the cavity,
Characteristic
1. Response time of less heat, reduce the dynamic error ;
2. Without compensation wire, cost saving ;
3. High precision measurement ;
4. High mechanical strength, good pressure resistance;
5. Imported film resistance element, reliable and stable performance
Main Technical Parameters
The implementation of product standards IEC584 IEC751 JB/T16839-1997 JB/T8622-1997 JB/T8623-1997
Cold insulation resistance
Thermal resistance at ambient temperature is 15 degrees -35 degrees Celsius, relative humidity of not more than 80%, the test voltage is 10-100V (D.C) insulation resistance between the electrodes and the jacket tube ≥100MΩ
The temperature range and temperature

Type	Division No.	Tolerance
		I		II
		Permissible difference	Measuring Range	Permissible difference	Measuring Range
WRN	K	±1.5°C	-40-375	±2.5°C	-40-333
		±0.004t	375-1000	±0.0075t	333-1200
WRE	E	±1.5°C	-40-375	±2.5°C	-40-333
		±0.004t	375-800	±0.0075t	333-900

Remarks: T are measured temperature element of absolute value

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
