High Precision Standard Mini Clamp-on Current Sensor CT

Prod Model:	XQ20
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%
Primary Current:	0 - 200A AC
Secondary Current:	0 - 200mA AC (Customized)
Max. Cont. Input Current:	240A
Load Capacity:	≤4Ω
Over Voltage Category:	Cat III 600V
Output Signal (AC Current):	From 0 to 200mA AC at Nominal Input Current
Output Signal (AC Voltage):	From 0 to 2V AC at Nominal Input Current
Frequency Range:	40Hz-2000Hz
Application:	Lighting
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Gfuve

Product Description

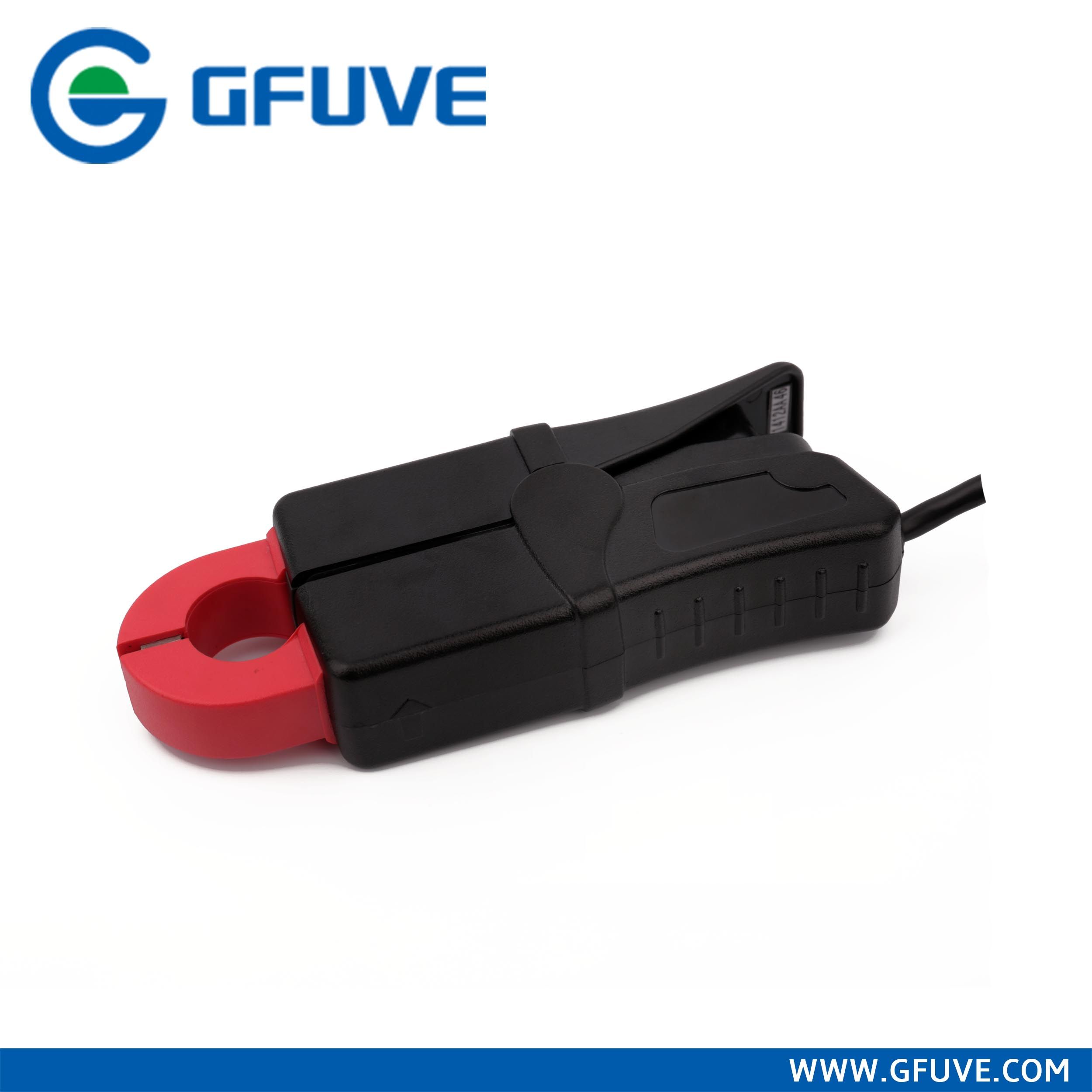

XQ20 High Precision Standard Mini Clamp-on Current Sensor Ct
The model XQ20 clamp on current sensor is suitable for 200A cable online measurement,
the user friendly shape make It easily clamp onto cables or bus bars.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 200A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC (customized)
Max. Cont. Input current	240A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 200mA AC at nominal input current
Output signal (AC voltage)	From 0 to 2V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	52.5 x 137.5 x 28
Weight (g)	400
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
Jaw color	Red, yellow, blue, green, black
Material	PC+ABS+Polycarbonate, UL94 V0
