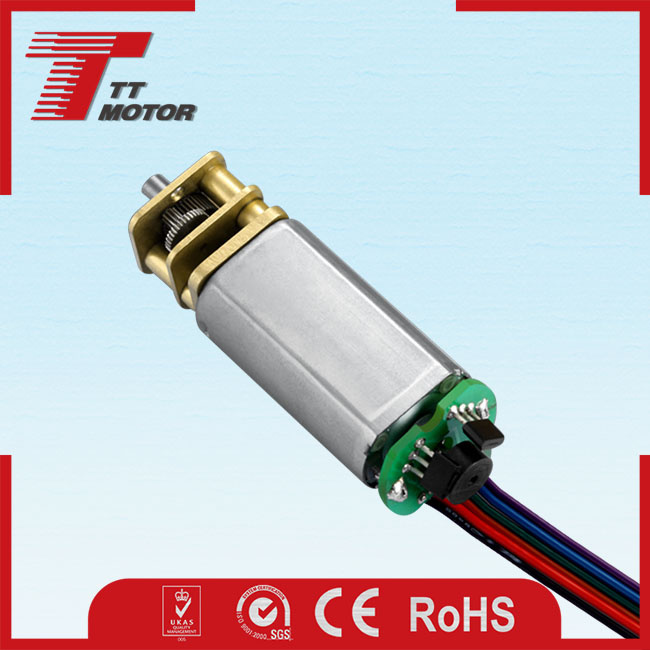

High precision instrument electric DC gear motor with RoHS/CE

Prod Model:	DC Gear motor GM13-050SH-EN
Product Name:	DC Gear motor GM13-050SH-EN
Rated Voltage:	6V
No-load Speed:	12500r/min
No-load Current:	45mA
Rated Speed:	10000r/min
Rated Torque:	10g.cm
Rated Current:	255mA
Output Power:	1.03W
Stall Torque:	50G.cm
Stall Current:	1.30A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Type:	DC Gear motor
Certification:	RoHS CE
Brand:	TT motor

Product Description

High precision instrument electric dc gear motor with ROHS/CE

Main Features
1.OEM/ODM 13*12 mm gearbox plus 030&050 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.13mm gear motor provide 0.05Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.DC Gear motors can match encoder, 3ppr
6.Reduction ratio:3,10,17,20,35,63,86,115,250,360


Model:GM13-050SH-EN
TFF-050SH-13120	Rated voltage:6V DC	Rated speed:10000r/min	Output power:1.03W
	No-load speed:12500r/min	Rated torque:10g.cm	Stall torque:50g/cm
	No-load current:45mA	Rated current:255mA	Stall current:1.30A
TFF-050SH-07360	Rated voltage:12V DC	Rated speed:5700r/min	Output power:0.6W
	No-load speed:8000r/min	Rated torque:10g.cm	Stall torque:33g/cm
	No-load current:30mA	Rated current:110mA	Stall current:0.29A
TFF-050SH-08240	Rated voltage:12V DC	Rated speed:9500r/min	Output power:0.99W
	No-load speed:128000r/min	Rated torque:10g.cm	Stall torque:43g/cm
	No-load current:35mA	Rated current:150mA	Stall current:0.55A


Gear motor technical data : GM13-050SH-13120-XXX-EN

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	4000	1200	600	340	190	140	105	80	50	35
Rated speed rpm	3300	1000	500	285	158	116	92	73	46	33
Rated torque kg.cm	0.024	0.08	0.14	0.25	0.44	0.5	0.5	0.5	0.5	0.5
Max.momentary tolerance torque kg.cm	0.12	0.4	0.7	1.1	1.9	2.6	3.0	3.0	3.0	3.0

Gear motor technical data : GM13-050SH-07360-XXX-EN

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	2500	750	380	220	120	90	68	52	32	22
Rated speed rpm	1900	570	285	160	90	65	53	43	28	20
Rated torque kg.cm	0.024	0.08	0.14	0.25	0.44	0.5	0.5	0.5	0.5	0.5
Max.momentary tolerance torque kg.cm	0.08	0.26	0.46	0.7	1.2	1.7	2.1	2.7	3.0	3.0

Gear motor technical data : GM13-050SH-08240-XXX-EN

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	4100	1230	620	350	200	145	110	85	50	36
Rated speed rpm	3150	950	475	270	150	110	82	73	46	33
Rated torque kg.cm	0.024	0.08	0.14	0.25	0.44	0.5	0.5	0.5	0.5	0.5
Max.momentary tolerance torque kg.cm	0.1	0.34	0.6	0.9	1.6	2.2	2.7	3.0	3.0	3.0

Product Application

Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.
