Product Description
High Power Transformer Cores:
Having high permeability, high saturation induction, low loss, and good temperature stability; widely used for the main transformer cores of uni-polar,
push-pull or bi-polar type high frequency and high power inverter power supply and switched mode power supply.
Applications:
Inverter welding machines
X-ray and laser source power supplies
UPS and high frequency heating systems
Charging power supply
Electrolytic and plating power supply
Frequency conversion power supply
Characteristics:
High saturate induction-minimizing the volume of transformers
High permeability and low coercivity-increasing efficiency and reducing the exciting
power of transformers
Low core loss-minimizing the temperature rise of transformers
Excellent stability-serving from -55oC to 130oC for a long time

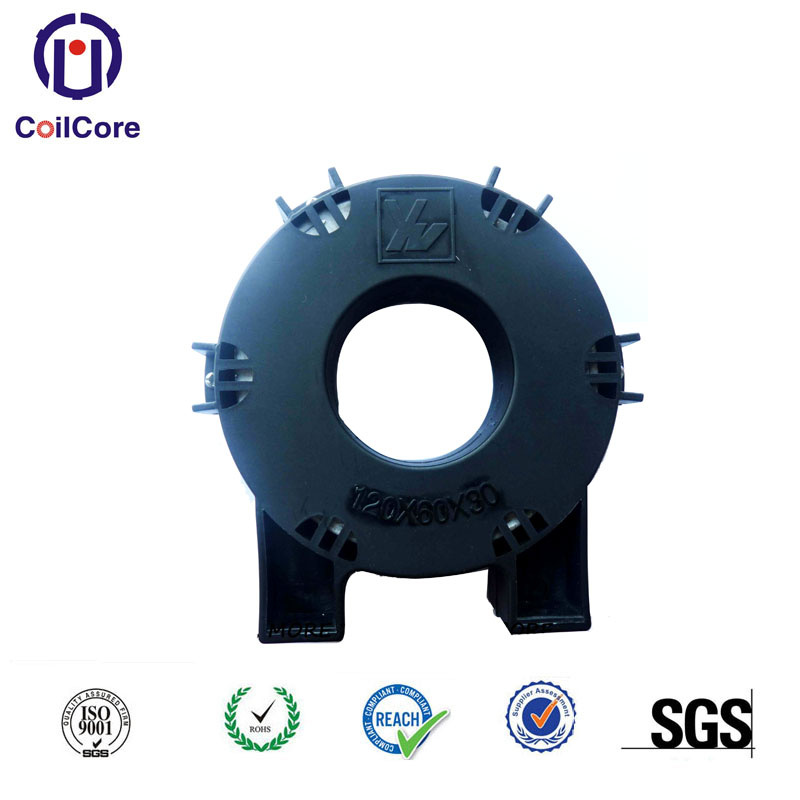

![](/proimages/44f3j00UfMQjJLthNoV/high-power-current-transformer-cores-for-welding-machine.jpg)
![](/proimages/44f3j00YUltqhRsOibM/high-power-current-transformer-cores-for-welding-machine.jpg)
![](/proimages/44f3j00GYVEocfhvWkM/high-power-current-transformer-cores-for-welding-machine.jpg)

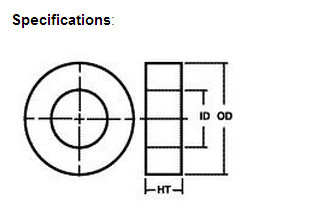

Core Type | Core dimension(mm) OD*ID*HT | Case Dimension(mm) OD*ID*HT | Case Color | Case Matrial | Installation | Ac(cm2) | Lm(cm) | Application Power(kw) | Welding Machince Current |
NH002 | 50*32*20 | 53.2*28.5*23.9 | Black | PA6 | | | | | |
NH039 | 59*40*20 | 63.1*36.6*24.5 | White | PA6 | ring case | | | | |
NH003 | 64*40*20 | 67.8*36.9*24 | Black | PA6 | ring case | 1.72 | 16.3 | 1~2 | |
NH004 | 70*40*20 | 74*40.8*24.5 | Black | PA6 | 2 feets 2 installation holes | 2.25 | 17.3 | 2 | |
NH005 | 70*40*25 | 72.6*37.1*29 | Black | PA6 | 2 feets 2 installation holes | 2.81 | 17.3 | 2~3 | |
NH006 | 80*50*25 | 85.9*44.7*30 | Black | PA6 | 2 feets 2 installation holes | 2.70 | 20.4 | 4~5 | 120, 160 |
NH007 | 80*50*25 | 85.9*44.7*30 | Black | PA6 | 2 feets 4 installation holes | | | | |
NH010 | 100*50*25 | 105.9*45.2*30 | Black | PA6 | 2 feets 4 installation holes | | | | |
NH011 | 100*60*20 | 105.9*55.6*25.1 | Black | PA6 | 2 feets 2 installation holes | 2.88 | 25.1 | 4~5 | 160, 200 |
NH012 | 100*60*20 | 105.2*54.7*26.6 | Silver | Aluminum | 2 feets 2 installation holes | | | | |
NH015 | 105*60*40 | 110.3*56.9*46.4 | Black | PA6 | 2 feets 4 installation holes | | | | |
NH014 | 105*60*30 | 110.8*57*35.5 | Black | PA6 | 2 feets 4 installation holes | 5.00 | 25.9 | 8~10 | |
NH018 | 110*60*20 | 115.7*54.9*25.4 | Black | PA6 | Horizontal type, 3 feets, 3 holes | | | | |
NH019 | 110*60*25 | 114.5*53.3*30.2 | Black | PA6 | Horizontal type, 3 feets, 3 holes | | | | |
NH020 | 110*60*30 | 115.2*54.5*35.5 | Black | PA6 | Horizontal type, 3 feets, 3 holes | | | | |
NH021 | 120*60*30 | 125.3*56.8*35.3 | Black | PA6 | 2 feets 4 installation holes | 6.75 | 28.2 | 12~15 | 315, 400 |
NH022 | 120*70*20 | 127.1*67.2*25 | Black | PA6 | 2 feets 4 installation holes | 3.75 | 29.8 | 8~10 | 200, 250 |
NH023 | 120*70*25 | 125.2*67.2*30 | Black | PA6 | 2 feets 4 installation holes | 4.69 | 29.8 | 10~12 | 315, 400 |
NH024 | 120*70*30 | 125.3*67.2*34.9 | Black | PA6 | 2 feets 4 installation holes | | | | |
NH025 | 120*70*40 | 125*68.2*46 | Black | PA6 | 2 feets 4 installation holes | | | | |
NH026 | 130*80*40 | 137.1*77.9*46.3 | Black | PA6 | 4 feets 8 installation holes | 7.50 | 32.9 | 15~20 | 400, 500 |
NH027 | 130*80*50 | 136.8*77.1*56 | Black | PA6 | 4 feets 8 installation holes | 9.38 | 32.9 | 20~22 | |
NH028 | 130*90*30 | 136*85*36 | | | | 4.30 | 34.5 | 500, 630 | |
NH029 | 130*90*50 | 135*85*55 | | | | 7.50 | 34.5 | 15~20 | |
