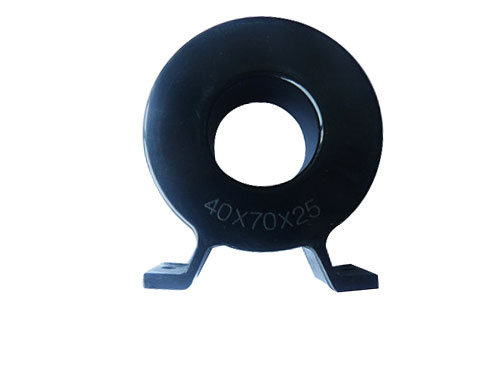

High Permeability Amorphous and Nanocrystalline Cores Use for Welding Machine

Name: High Permeability Amorphous and Nanocrystalline Cores Use for Welding Machine
Brand: all-electronics-online.com
SKU: 783252095
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	40x70x25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Phase:	Single and Three
Brand:	Coilcore

Product Description

Features:

high saturation magnitical induction;
Low coercive force;
High permeability;
Low loss;
Goog temperature stability (-55~130°C);

Application Fields:
Various high frequency switching mode power supplies such as inverter welding machine,

x-ray power supplies,

laser power supplies,

communication power supplies,

UPS,high frequency induction heating power supplies,

charging power supplies,

electrolytic plating power supplies etc.

Common toroidal core specifications:

Type No.	Core Size (mm)			Case size (mm)			Cross-sectional area (cm2 )	Magnetic length (cm)	weight(g)	Power for inverter welding machine(Kw)	Output current for inverter welding machine
Type No.	OD	ID	HT	OD	ID	HT	Cross-sectional area (cm2 )	Magnetic length (cm)	weight(g)	Power for inverter welding machine(Kw)	Output current for inverter welding machine
JSONL-644020	64	40	20	66	37	23	1.8	16.34	213	2-5
JSONL-704025	70	40	25	72	37	28	2.81	17.28	352	3
JSONL-755025	75	50	25	77	47	28	2.34	19.63	334	4.5
JSONL-805020	80	50	20	82	46	23	2.25	20.42	333	4
JSONL-805025	80	50	25	85	44	30	2.81	20.42	416	5	120A 160A
JSONL-1005025	100	50	25	105	44	30	4.69	23.56	801	12
JSONL-904020	90	40	20	/	/	/	3.75	20.42	555	10
JSONL-1006020	100	60	20	105	56	23	3	25.13	547	8	160A 200A
JSONL-1206030	120	60	30	125	57	35	6.75	28.27	1384	15	315A
JSONL-1207020	120	70	20	125	67	25	3.75	29.85	812	10
JSONL-1207025	120	70	25	125	67	30	4.69	29.85	1014	12	200A 250A
JSONL-1207030	120	70	30	125	67	35	5.63	29.85	1217	15	315A 400A
JSONL-1308040	130	80	40	136	76	45	7.5	32.99	1793	25	400A 500A
JSONL-1308050	130	80	50	136	76	55	9.38	32.99	2242	30	500A 630A
JSONL-1309050	130	90	50	136	85	56	7.5	34.56	1880	30	630A
JSONL-1308060	130	80	60	136	85	66	11.25	32.99	2690	40	630A
JSONL-18011060	180	110	60	186	105	66	15.75	45.55	5202	60	1250A

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
