| Prod Model: |
Q20B |
| Ratio: |
1000: 1 or 2000:1 (Customized) |
| Accuracy Class: |
0.1%, 0.2%, 0.5% |
| Primary Current: |
0 - 200A AC |
| Secondary Current: |
0 - 200mA AC or 0 - 200mv AC (Customized) |
| Max. Cont. Input Current: |
240A |
| Over Voltage Category: |
Cat III 600V |
| Frequency Range: |
40Hz-2000Hz |
| Standards: |
En 61010-1, En 61010-2-032, IEC60044-1 |
| Dimensions (L X W X H) (mm): |
56 X 168 X 27 |
| Weight (G): |
350 |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

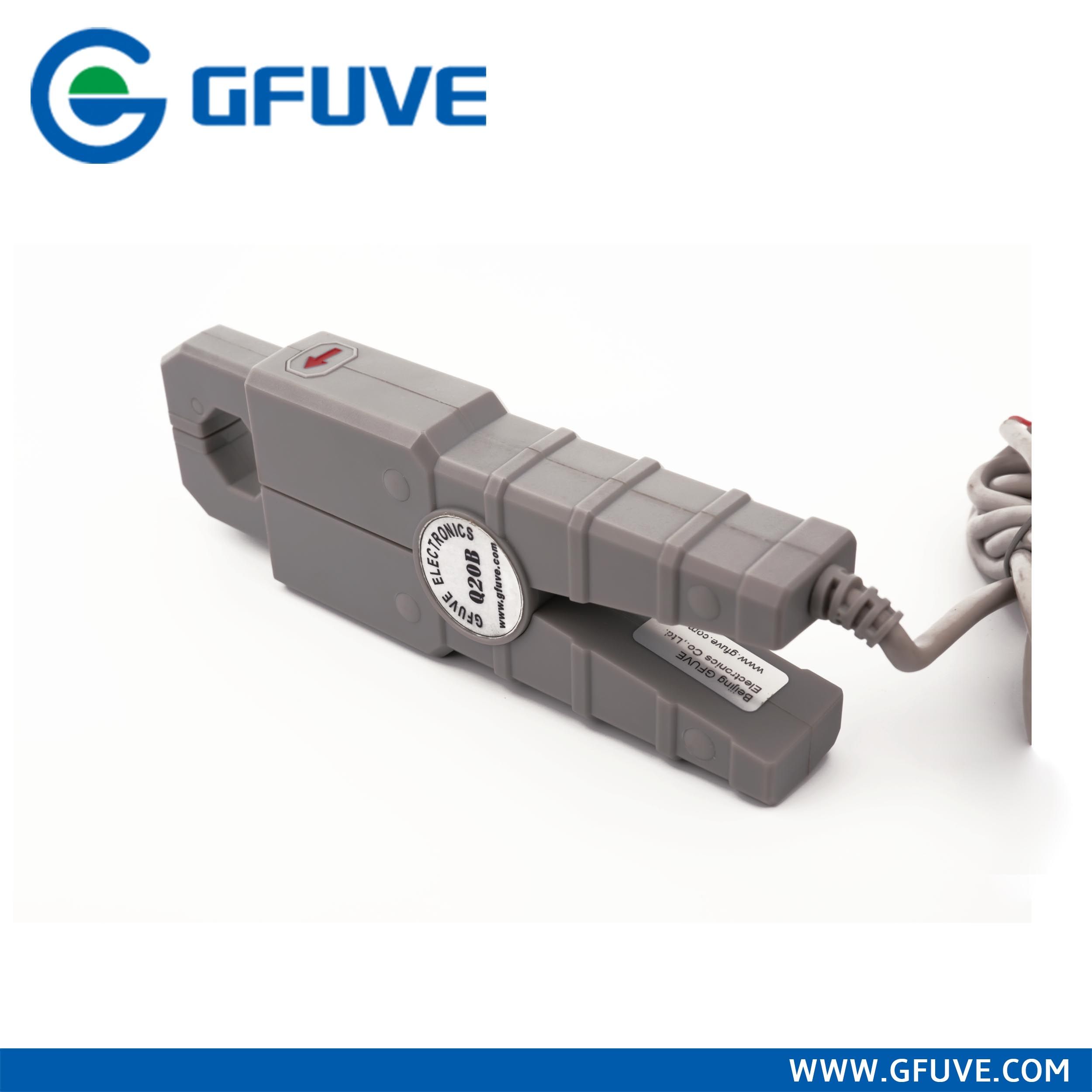

The model Q20B openable jaw AC current clamp on cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
| Applications | Features |
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
| 1. Measurement range of 1mA to 200A AC
2. Small, compact size
3. Improved ergonomic design and easy operation 4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
|
