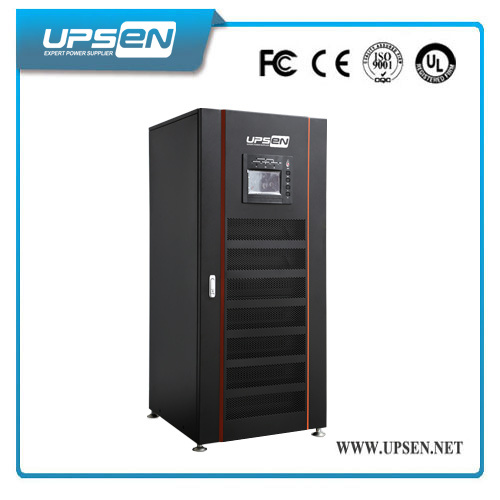

High Efficiency 3 Phase Hybrid Pure Sine Wine Solar Inverter Built-in MPPT Solar Controller with LCD Screen Display
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Money Gram |
Prod Model: |
JS33 Series |
Capacity (kVA): |
10kVA-200kVA |
Power ( Watts): |
8kw-160kw |
Input Frequeny: |
50/60Hz |
Chare Current: |
Max(20A) |
Computer Communicate: |
RS232/RS485 |
Display: |
LCD |
Product Description
3 Phase Hybrid Solar Inverter JS33 SeriesFeatures:
1:Pure sine wave output2: Built-in MPPT solar controller for 10-30Kva, External Mppt Controller for 40-200Kva3: Adopt 4 layer PCB, and SMD technology4: Can choose the AC charger by button: On-off5: With two charging mode: AC charging mode and solar charging mode, solar chargingpriority.6: Can choose two work mode: Solar-Grid-Battery, Solar -battery-Grid, Can choose it by LCD screen7: High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology: The sixth generation lowexhaust and big- power IGBT with excellent high speed switch feature, high voltage feature and large current feature. Drives by electric voltage, only need small control power. The sixth generation with lower saturation voltage, the inverter has high efficiency, low temperature, high reliability.8: Intelligent detecting function : This system microprocessor can continually online detect power status, the breaker status and all the working status of the circuit.9: Excellent load feature : It is completely capable to load from 0-100% while no need to change to bypass,which make sure the output reliable.10: Intelligent communication-URL Based RemoteMonitoringandOperation :With RS232 and RS485 standard collocation, optional SNMP and dry contact.11: Perfect protection :Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.12: Selectable battery inspection module :Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.13: High-powered dynamic feature :Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic adjustment, but also reduce the output voltage distortion.Company details
![](/proimages/44f3j00frgELpRnFGbD/high-efficiency-3-phase-hybrid-pure-sine-wine-solar-inverter-built-in-mppt-solar-controller-with-lcd-screen-display.jpg)
![](/proimages/44f3j00GupTIHfRzUqP/high-efficiency-3-phase-hybrid-pure-sine-wine-solar-inverter-built-in-mppt-solar-controller-with-lcd-screen-display.jpg)
![](/proimages/44f3j00frzQIWRGDYbH/high-efficiency-3-phase-hybrid-pure-sine-wine-solar-inverter-built-in-mppt-solar-controller-with-lcd-screen-display.jpg)
![](/proimages/44f3j00fzpaLcGmuYbD/high-efficiency-3-phase-hybrid-pure-sine-wine-solar-inverter-built-in-mppt-solar-controller-with-lcd-screen-display.jpg)
![](/proimages/44f3j00YupQHBfWFGqL/high-efficiency-3-phase-hybrid-pure-sine-wine-solar-inverter-built-in-mppt-solar-controller-with-lcd-screen-display.jpg)
Technical Specification:Model | JS3310K - JS33200K |
Capacity (KVA) | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 160 | 200 |
kVA | kVA | kVA | kVA | kVA | kVA | kVA | kVA | kVA | kVA | kVA |
Power ( Watts ) | 8 | 16 | 24 | 32 | 40 | 48 | 64 | 80 | 96 | 128 | 160 |
kW | kW | kW | kW | kW | kW | kW | kW | kW | kW | kW |
Grid (AC Input) | |
Max input current (A) | 31 | 41 | 61 | 81 | 101 | 121 | 161 | 201 | 241 | 321 | 401 |
Type | Three Phase ( 3P+N+G ) |
Line-Neutral voltage | 220/230/240VAC±25% (100/110/120VAC is optional) |
line-line voltage | 380/400/4150VAC±25% (200/208/220VAC is optiona |
Input frequeny | 50/60Hz±5% |
Charge voltage | 407V±1% |
Charge current | ON or OFF, Can adjust through panel switch |
PV | |
PV1 | 300VDC~600VDC ( 15pcs 24vdc solar panel in series, then through combiner box) |
PV2 | 300VDC~600VDC ( single group 15pcs 24vdc solar panel in series, or through |
Charge current | 20A ( max ), need more, can add external 20A charge module |
Battery | |
Type | Maintenance free lead-acid battery (other type battery need customize ) |
Battery voltage | 360Vdc ( 2V battery 180pcs in serial or 12V battery 30pcs in serial) |
Battery capacity | According to backup time |
Battery low voltage protection | >315V |
|
Inverter (Output) | |
Inverter (Output) | Pure sine wave, THD<3% (linear load) |
Line-Neutral voltage | 220/230/240VAC±2% (100/110/120VAC is optional) |
Line-line Voltage | 380/400/415VAC±2% (200/208/220VAC is optional) |
Frequency | 50/60Hz±0.5% |
Dynamic feature | Inverter output transient dynamic range less than±5%, recovery time <20mS |
Crest factor | 3:01 |
Overload protection | (Inverter output)125% overload, delay 1mins protect, 150% overload, immediate |
Inverter efficiency | >90% ( 100% load) |
System Parameters | |
Transfer time | <0.5ms ( inverter--bypass ) |
Protection | Output short circuit, overload, overvoltage, under voltage, over temperature etc |
Display | LCD display input and output voltage, output current, the inverter voltage, frequency, |
information |
Operating | Temperature 0-4ºC |
Relative humidity | 30%-95% |
Work sequence | Solar-Grid-Battery or Solar -battery-Grid, Can choose one of the mode via LCD |
Operation altitude | <1000 meters ( per increase 100 meters power decrease 1%, at most 4000 meters ) |
Computer communicate | RS232/RS485 |
|
Cooling method | force-air cooling |
Size W×D×H (unit: | 600*620*1250 | 700*620*1530 | 980*800*1800 | 1380*950*180 |
Weight (kg) | 236 | 265 | 342 | 407 | 485 | 506 | 770 | 913 | 937 | 1440 | 1710 |
Contact information
![](/proimages/44f3j00fugaPSYrjRcD/high-efficiency-3-phase-hybrid-pure-sine-wine-solar-inverter-built-in-mppt-solar-controller-with-lcd-screen-display.jpg)
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
