Product Description

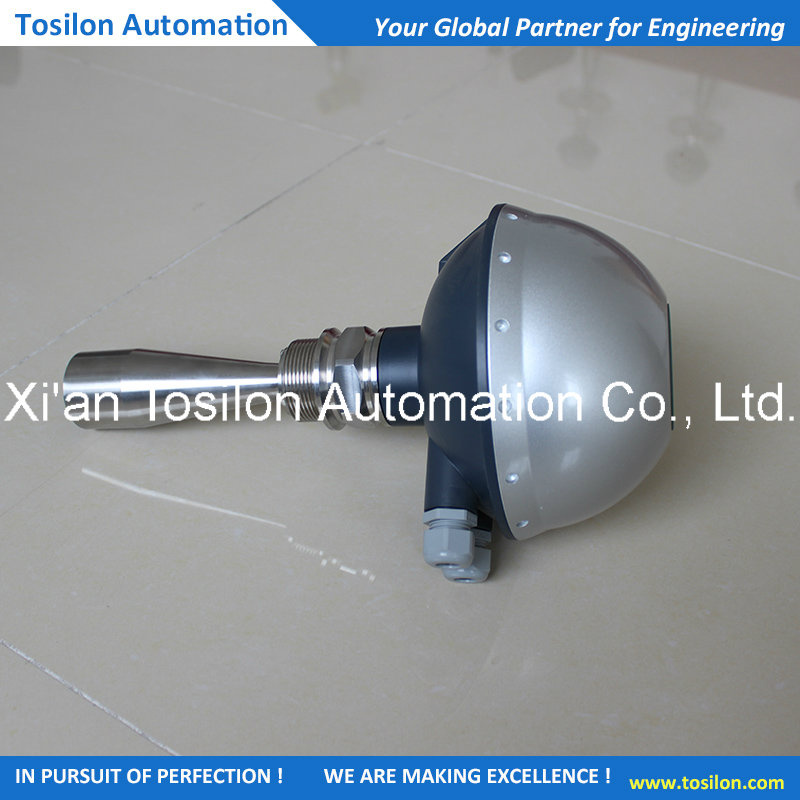

Tosilon Echo Sound Radar Level Sensor for Water (Ex Approved)
Design and Manufacturing according to ATEX Standard
Introduction
TJL series Radar Level Meter adopts advanced system of Microwave Process technology. Extremely short microwave pulses are emitted by the antenna system in the direction of the measured product, reflected by the product surface and received back again by the antenna system. They propagate at the speed of light. The time from emission to reception of the signals is proportional to the level in the vessel.
Features
26GHz Microwave Processing Technology
· Short angular beam-width, Strong anti-interference;
· Short wavelength, Strong penetrability;
· Short blind section, specialized in measurement with small range;
· TCRDSKL Technology, Fast Processing Speed;
· Stable Performance of Output;
· Wide Range of Application;
· Ex Approved
Outline Structure
Technical Specification (For details, please contact Tosilon)
Microwave Frequency Antenna/Material
26GHz 316L/PTFE
Seal Part/Process Tempt.
Viton/-40~150 Degrees Celsius, as required
Process Temperature Accuracy
-60~250 Degrees Celsius 3mm
Output
24VDC 2-wire/4-20mA, as required
Measuring Range Electrical Connection
0~30m NPT 1/2, as required
Application
Liquid, Solid
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Material | Enclosure | Sealed Part (Enclosure) | GND Terminal |
| Aluminum/ plastic/316L | Silicone Rubber | Stainless Steel |
| Power Supply | 2-Wire | Standard Type | 16~36V DC |
| Intrinsic Safety | 21.6~26.4V DC |
| Power Consumption | max.22.5mA |
| Ripple Allowed | _<100Hz , Uss<1V |
| _(<100~<100K)Hz, Uss<10mV |
| 4-Wire | Intrinsic Safety & EXd | 21.6~26.4V DC,198~242V AC |
| Power Consumption | max.1VA,1W |
| Cable | Cable Entry/Plug | M20x1.5 |
| Diameter of the Cable | 5~9mm |
| Spring Terminal Block | cross section of the cable | 2.5mm |
| Output | Signal | 4~20Ma/HART |
| Resolution | 1.6Ua |
| Fault Signal | 20.5mA;22mA;3.9mA |
| 2-wire Load Resistance | See the illustration |
| 4-wire Load Resistance | ≤500Ω |
| Integral Time | 0~99s,adjustable
|
