| Prod Model: |
HXDZ-29 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
48X48X100mm |
| Resolution: |
14bits |
| Usage: |
Refrigerator, Drying Equipment, Ventilation |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Control Method: |
Steam Pressure Type |
| Material: |
Plactis Housing |
| Operating Principle: |
Plastic Extruding, Reflow Oven, T Controller |
Product Description
Overview

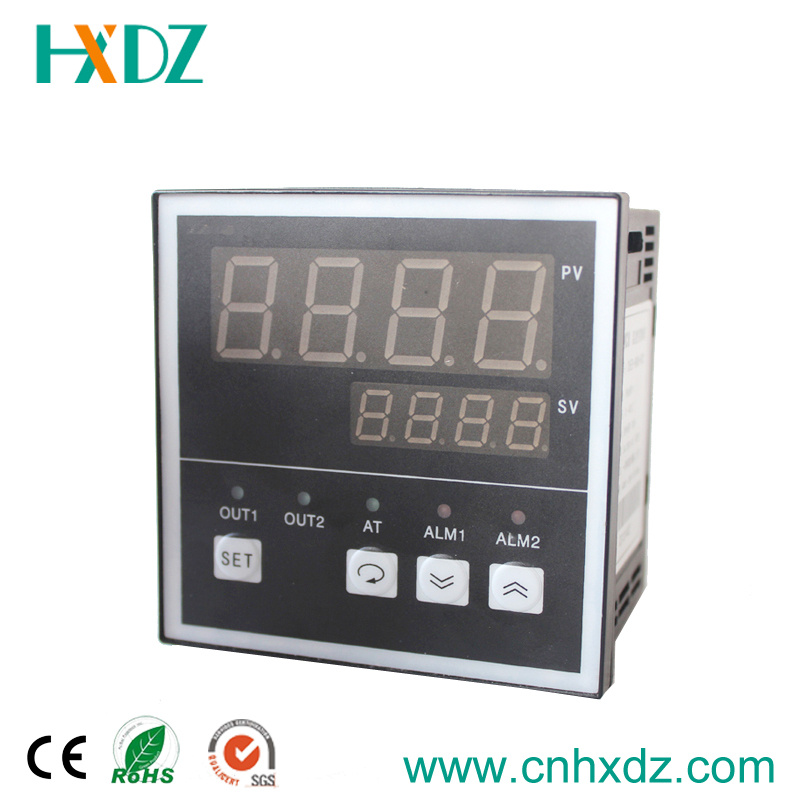

This intelligent temperature controller is an intelligent industrial regulating instrument with high-performance and high-reliability, and is widely used for the automatic control system of temperature, flow, pressure, liquid level, etc. in the industries of machinery, chemicals, ceramics, light industry, metallurgy, petrochemical, heat treatment and so on.
Main Features:
Analog digital multi-filtering
Red and green digital tubes for color separation and display of measured value and set value
Free sensor input, all the parameters are input through the panel program
With a sensor correction function
Zero setting by software, the machine is without potentiometer
With a secondary parametric-lock (LCK) protection function
Self-adaptive and self-tuning
Operation Manual
Before using the product, please read the manual carefully for correct use and proper keeping.
(Before using the product, please read the operation manual carefully for correct use)
Wiring Warning
In order to avoid the instrument damage or failure, please use a proper fuse to protect the power wire and the input/output wire, to prevent current impact.
Instrument Power Supply
In order to prevent electric shock or instrument failure, please connect the power supply after all the wiring work is completed.
Prohibit from Using Around Inflammable Gas
In order to prevent fire, explosion and instrument failure, do not use the instrument in the environment of inflammable or explosive gas, or steam dump places.
Prohibit from Modifying the Instrument
In order to prevent accidents and instrument failure, do not modify the instrument.
Main Technical Indicators
| Measuring Accuracy | ±0.5%FS |
| Cold Junction Compensation Error | ±2ºC (correction by software is available within the range from 0ºC to 50ºC) |
| Resolution | 14 Bit |
| Sampling Period | 0.5 Secretary |
| Power Supply | AC85-AC265V 50Hz |
| Control Mode | using industrial and expert self-tuning PID technology; characterized in rapid temperature control,
fast response, small overshoot and high accuracy and so onwhen compared with the traditional PID controller |
| tuning PID technology | characterized in rapid temperature control, fast response, small overshoot and high accuracy and so on when
compared with the traditional PID controller |
| Insulation Resistance | >50MΩ (500VDC) |
| Insulation Strength | 1500VAC/min |
| Using Environment | 0ºC to 50ºC, 30% to 85% RH, non-corrosive gas conditions |
FAQ:
1.Q:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.
2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.
3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.
4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.
5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
