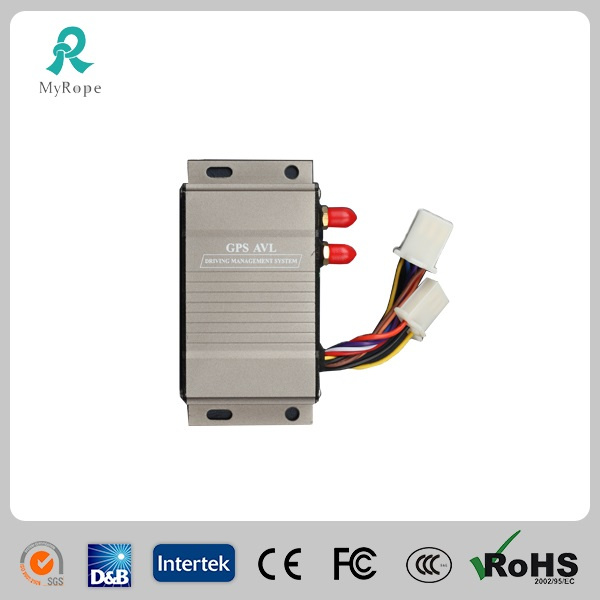

Hidden GPS Tracker with Dual SIM Card GPS Tracker M528d
Price: |
Negotiable/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
M528D |
GSM Module: |
Quectel M35 |
GPS Chipset: |
U-Blox 7020 |
Server: |
Cloud Server |
Platform: |

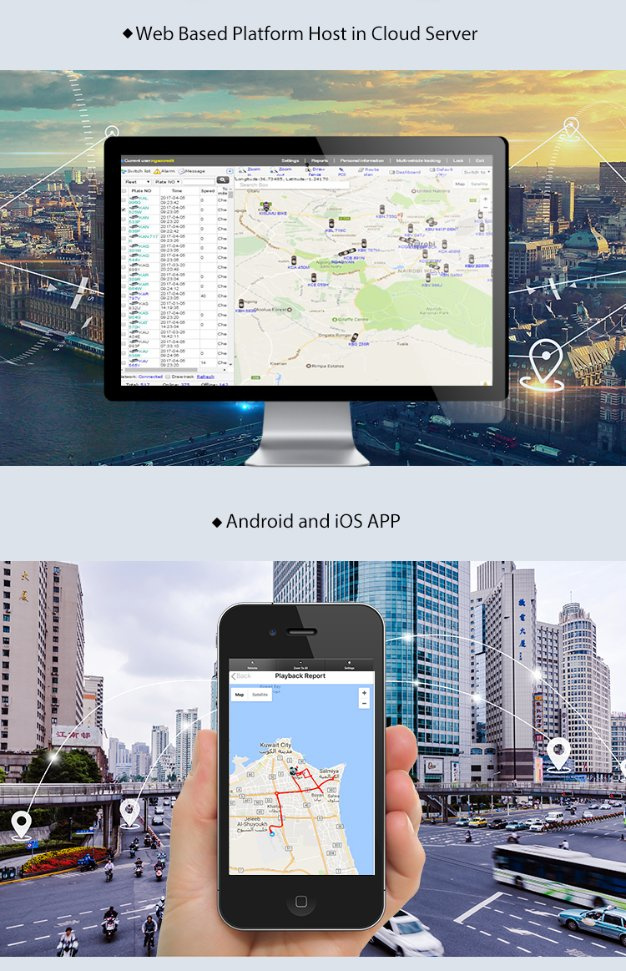

Web Based Platform and APP |
GSM Frequency: |
850/900/1800/1900 MHz |
GPS Positioning Accuracy: |
5m |
Application: |
Vehicle Tracking,Fleet Management,Team Security |
Battery: |
Rechargeable Lithium Polymer Battery 380mAh |
Warranty: |
36 Months |
Product Description
Hidden GPS Tracker with Dual SIM Card GPS Tracker M528d1. FunctionsFunctions | Reports | Alarms |
Realtime gps locating | History playback report | SOS alarm |
ACC detection | Driving records report | Geo-fence alarm |
Cut off engine remotely | Vehicle mileage report | Over-speed alarm |
Voice Monitoring | Alarm records report | Power-off alarm |
Resend data from signal blind area | Parking report | fatigue driving alarm |
Track on Mobile Phone APP | Runnin trip report | Moving alarm |
Track via interval | Fuel consumption report | Idling Alarm |
| Temperature report | Illegal door alarm |
2. Specificationswork voltage | 8VDC~36VDC |
work current | 50mA~160mA |
GSM module | Four Band: GSM 850/900/1800/1900Mhz |
Communication protocol | UDP/TCP(can be customized) |
GPS module | Ublox chipset |
GPS sensitivity | -159dBm |
GPS frequency | L1, 1575.42 MHz |
C/A coding | 1.023 MHz chip rate |
Channels | 20 channels examine track |
Position accuracy | 10 meter, 2D RMS |
Speed accuracy | 0.1 meter/second |
Time accuracy | GPS time synchronization |
Default data | WGS-84 |
Recover | Average 0.1 second |
Hot start | Average 1 second |
Warm boot | Average 38 second |
Cold boot | Average 42 second |
Height limit | 18,000 meter (60,000 feet) max |
Speed limit | 515 kilometer/second (1000 knots)max |
Acceleration limit | Less than 4g |
Work temperature | -20°~ 70° C |
Storage temperature | -30°~ 85° C |
Humidity | 5% ~ 95% noncondensing |
Terminal size | 101 mm × 50mm × 24mm |
Inside battery | Continuous working no less than 4 hours |
LED light | Red: Power status;yellow:GSM module state |
| |
![](/proimages/44f3j00gzOTfLUFREkG/hidden-gps-tracker-with-dual-sim-card-gps-tracker-m528d.jpg)
![](/proimages/44f3j00ruFEflYPjakR/hidden-gps-tracker-with-dual-sim-card-gps-tracker-m528d.jpg)
![](/proimages/44f3j00rpntUkflmTcY/hidden-gps-tracker-with-dual-sim-card-gps-tracker-m528d.jpg)
![](/proimages/44f3j00gpNEGBfqRtkY/hidden-gps-tracker-with-dual-sim-card-gps-tracker-m528d.jpg)
![](/proimages/44f3j00runtGZUgmEof/hidden-gps-tracker-with-dual-sim-card-gps-tracker-m528d.jpg)
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.
Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.
With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.
We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
