Prod Model: |
H509 |
Power Supply: |
12-32VDC |
Output: |
4-20mA with Hart (2-Wire) |
Resolution: |
0.01PF |
Operation Temperature: |
-20°c ~ +70°c |
Measurement Range: |
40PF ~ 5000PF |
Type: |
Capacitance |
Output Signal Type: |
4-20mA with Hart |
Certification: |
Pcec |
Product Description

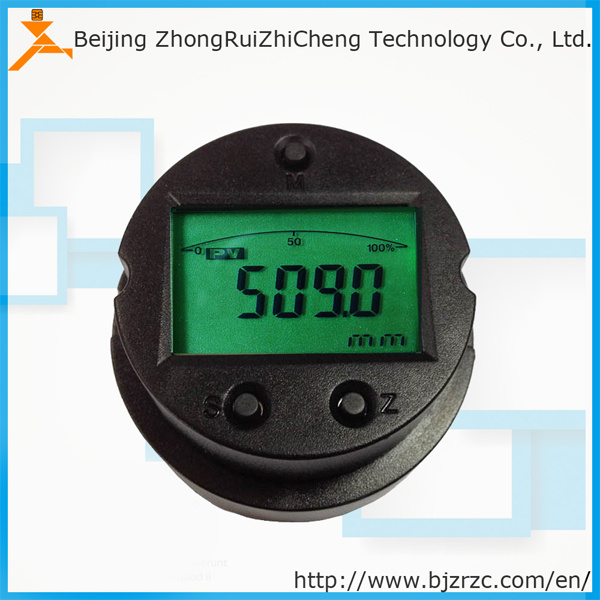

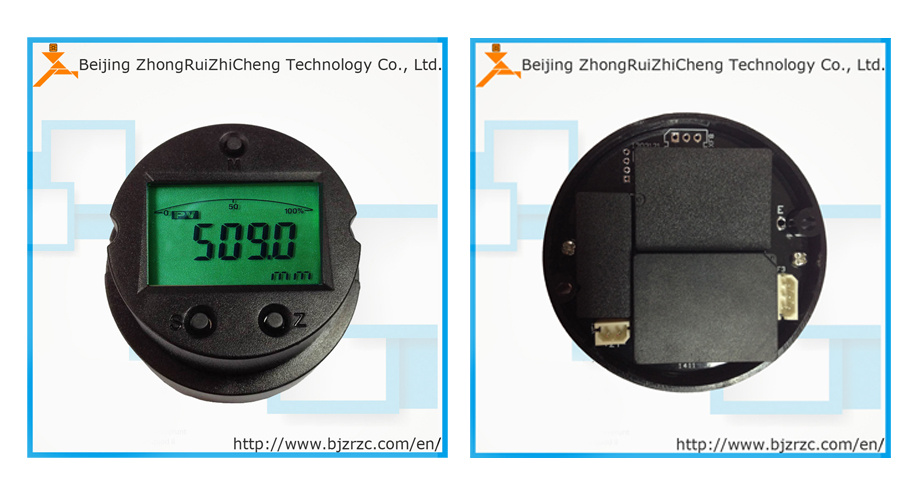

H509 HART 4-20mA Capacitance Level Meter
![](/proimages/44f3j00nEYQPsbhVpgu/hart-4-20ma-capacitance-level-module-capacitance-liquid-level-meter.jpg)
APPLICATION
Used for capacitance measurement
SPECIFICATIONS
Power supply: 12-32VDC
Output: 4~20mA with HART (2-wire)
Capacitance measurement range: 40PF ~ 2500PF
Resolution: 0.01PF
Operating temperature:
-20°C ~ +70°C(with LCD)
-40°C ~ +85°C(without LCD)
Dimension: diameter Φ= 62 mm
Mounting hole pitch D=55 mm
![](/proimages/44f3j00NEGaLObMspru/hart-4-20ma-capacitance-level-module-capacitance-liquid-level-meter.jpg)
FEATURES
1,High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
2,Exceptional stability: Unique direct digital frequency synthesis (DDS) technology ensures exceptional stability and large range turndown.
3,Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.
4,Multiple field adjust functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim and Upper Sensor Trim and Data Restore.
5,Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand.
6, 360o rotation LCD display
7, Multiple variables shown on the LCD: More than one variable displayed on the LCD with backlight for dark environment.
8,Data backup and restore
9,Easy to install and reliable with unique design

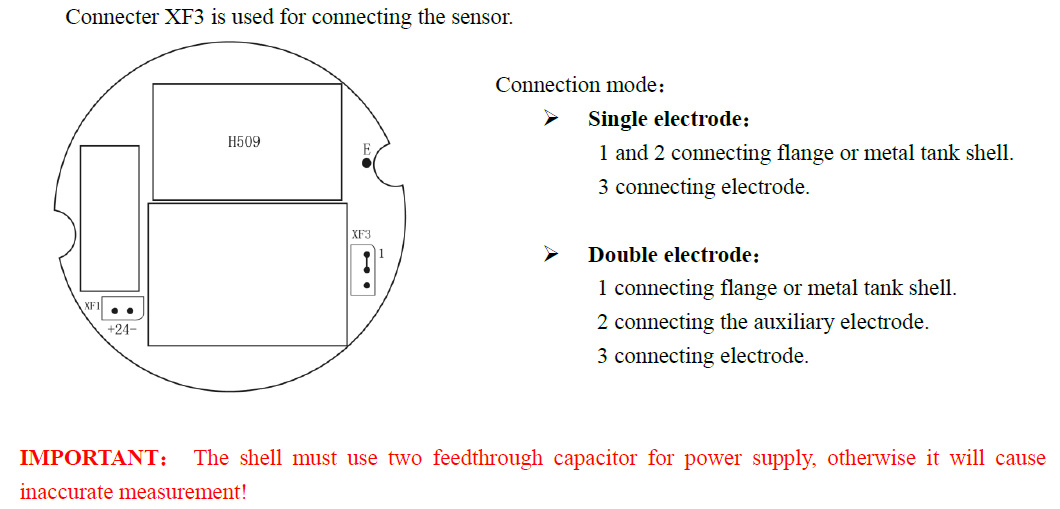

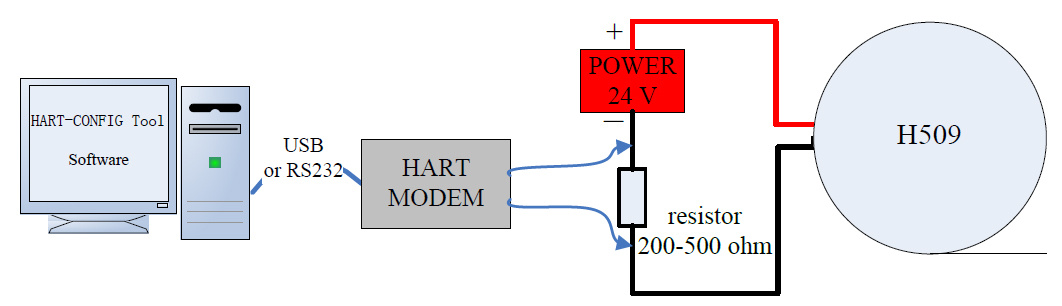

Sensor connection:
![](/proimages/44f3j00NtfQPJcRIzpg/hart-4-20ma-capacitance-level-module-capacitance-liquid-level-meter.jpg)

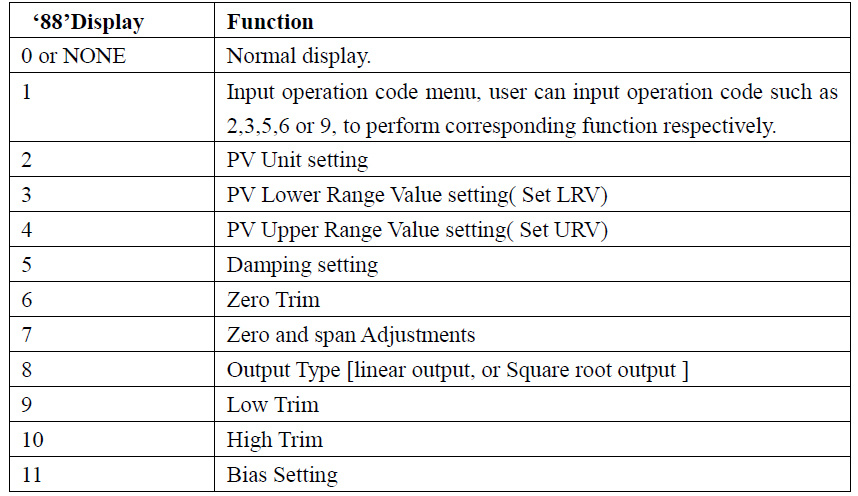

Local Adjustment Operation Code List
![](/proimages/44f3j00daUTLEcIjzpg/hart-4-20ma-capacitance-level-module-capacitance-liquid-level-meter.jpg)
