| Prod Model: |
HA-3200B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen: |
LED Display Screen |
| Certificate: |
CE ISO |
| Mode: |
Pneumatically Powered and Electrically Controlled |
| Circuit: |
Breathing Circuit Integrated Standards |
| Gas Requirement: |
Medical Oxygen and Nitrous Oxide |
| I/E Ratio: |
1:1.5; 1:2.0;1:2.5; 1:3 |
| Tidal Volume: |
0~1500ml |
| Respiratory Rate: |
4~40bpm |
| Flow Meter: |
O2:0.1~10L/Min, N2o:0.1~10L/Min |
| Safety Valve: |
<12.5 Kpa |
| Type: |
Anaesthesia Machine |
| Certification: |
ISO13485 |
| LCD Display: |
With LCD Display |
| Kind: |
Surgical Equipment |
| Group: |
Adult & Child |
| Source: |
Oxygen and Nitrous Oxide |
| Anesthesia: |
Closed; Semi-Closed; Semi-Open |

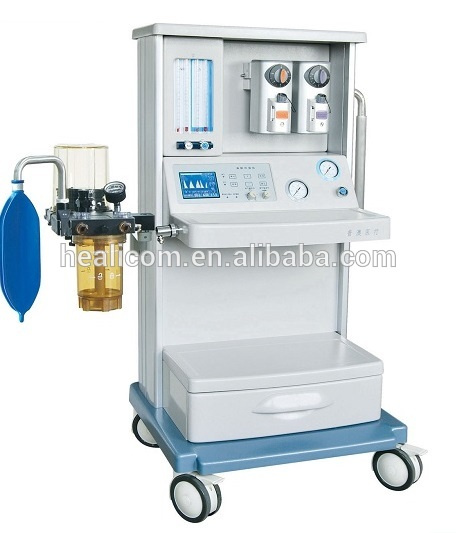

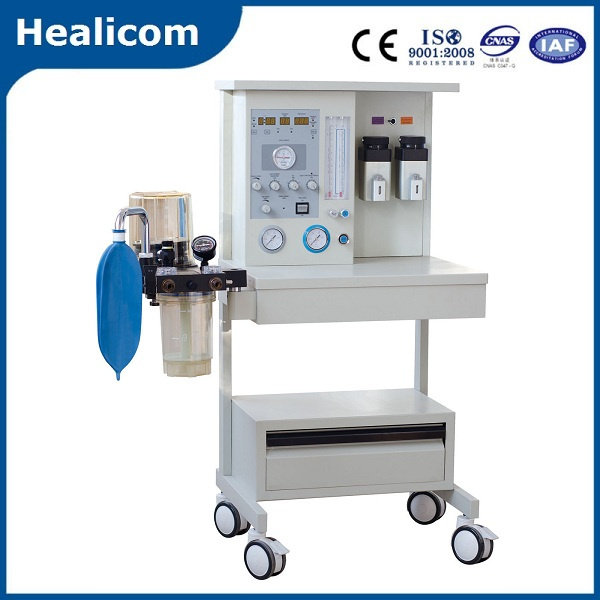

Product Description
Features:
1. Pneumatically driven electronically controlled system

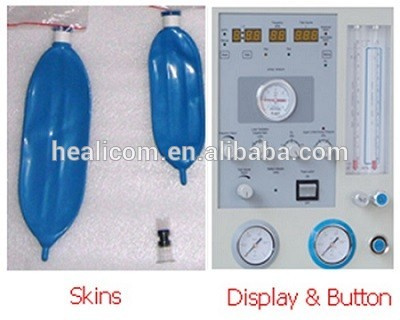

2. Built-in ventilator, LED display screen

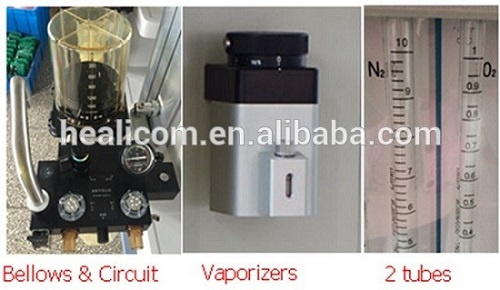

3. With 1 patient circuit for adult (Option: patient circuit for children).
4.4-tube flowmeters, O2 & N2O; 0.1 L/Min ~ 10L/Min;

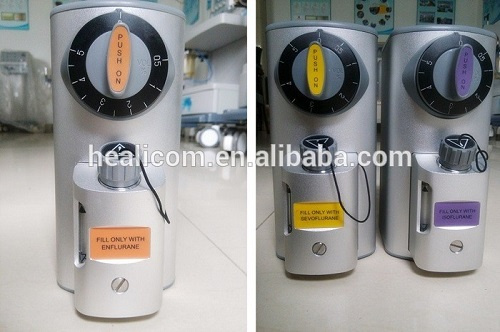

5. Vaporizer: Enflurane/Isoflurane/Sevoflurane;
(Option: Halothane)
6. Ptr: -10~10hPa;
7. Respiration Mode: IPPV, SIPPV, Manu
8. Tidal Volume: 50~1500mL;
9. Respiration Frequency: 4~40bpm;
10. I/E Ratio: 1:1.5~1:3
Prospective service and support
C&F is the trusted partner for professionals who rely on our quality assurance, wide level range and high technology. Today we are very proud to share with you our core products, which are dedicated to providing professional assortment and solutions for ICU and operation room.
We offer a highly professional after-sales support provision and also provide technique supports according to customers' needs. Training courses are available of the service packages, managed by experienced training officers. The after-sale service department
delivers fast response times and cost-effective maintenance programs without fears in the rear.
| TECHNIQUES SPECIFICATIONS |
| Physical specifications |
| Screen | LED Display Screen |
| Suitable | Adult & Child |
| Mode | pneumatically powered and electrically controlled system |
| Working Mode | Closed; Semi-Closed; Semi-Open |
| Circuit | Breathing circuit integrated standards |
| Tube | 2 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min |
| Trolley | Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions |
| Safety | NO2 Automaticlly Cutting while oxygen deficiency |
| Drawer unit | ONE drawer totally extractable |
| Technical Specifications |
| Gas requirement | Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa. |
| safety valve | <12.5 kPa |
| Respiratory Rate | 4~40bpm |
| Flow meter | O2:0.1~10L/Min, N2O:0.1~10L/Min |
| oxygen concentration in the mixed gas N2O/O2 | > 21% |
| Oxygen Flush | 25~75 L/min |
| Maximum error of the pressure testing device | not exceed ± (4% of the full scale reading + 8% of the actual reading) |
| modes of ventilation | A/C,IPPV, SIPPV, MANUAL |
| I/E Ratio | 1:1.5; 1:2.0;1:2.5; 1:3 |
| Tidal Volume | 0~1500ML |
| Controlled ventilation and assisted ventilation switching time | 6s |
| Maximum safety pressure | ≤ 12.5 kPa |
| Pressure limit range | 0 ~ 6.0 kPa |
| Airway pressure alarm: Audible and visual and with yellow and red color indicating | Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa |
| ±0.2 kPa |
| Tidal volume alarm: Audible and visual and with yellow and red color indicating | upper alarm: 50 to 2000ml,lower alarm: 0~1800ml |
| Power Supply Alarm | Ac/dc power supply are after failing to send out alarm immediately
Alarm Time: keep >120s |
| Operating conditions |
| Ambient temperature | 10 ~ 40oC |
| Relative humidity | no higher than 80 % |
| Atmospheric pressure | 860 hPa ~ 1060 hPa |
| Power requirement | 100-120 Vac, 50/60 Hz; |
| Air source requirement: | Medical oxygen and laughing gas with a rated pressure ranging from 0.3 to 0.5MPa. |
| Attention: the AC power supply used for the anesthesia machine must be well grounded. |
| Attention: the anesthesia machine used must be equipped with a carbon dioxide monitor complying with ISO 9918:1993, an oxygen monitor complying with ISO 7767:1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System. |
| Configuration: |
| Vaporizer | Enflurane/ Isoflurane(Option: Halothane) |
| Storage |
| Ambient temperature | -15oC ~ +50oC |
| Relative humidity | no higher than 95 % |
| Atmospheric pressure | 86 kPa ~ 106 kPa. |
| It should be stored in a room without corrosive gas and well ventilated |
| Package |
| packaging box | comply with the requirement of GB/T 15464 |
| | Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation |
| | Moisture protection and rain protection to ensure that product is protected from natural damage. |
| Power |
| Power supply alarm | Audible and visual |
| Battery Power | Typical 30 mins +, upto180mins |
| | lead-acid battery with a rated |
| output voltage of DC 12V |
| | It should be charged at an interval no longer than 12h. |
| STANDARD CONFIGURATIONS |
| QTY | NAME |
| 1 set | Main unit |
| 1 set | ventilator |
| 1 set | 2-tube flow meter |
| 2 set | vaporizer |
| 1 set | Patient circuit |
| 1 set | bellow |
| 1 set | Na lime tank |
| 1 set | Diaphragm electronic sensor |
| 1 pic | Oxygen pressure reducer |
| 2 pics | A leather bag |
| 4 pics | Threaded pipe |
| 2 pics | mask |
| 1 set | Tools with the machine |
| 1 set | User Manual (English Version) |
| Optional | Patient Monitor |
