Prod Model: |
GYFTY Optical Fiber Cable |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |
GYFTY Optical Fiber Cable |
Fiber Count: |
24 Core |
Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
Loose Tube Material: |
PBT |
Loose Tube Filling Material: |
Jerry |
Color Of Loose Tube: |
Orange,Green , Brown,Red etc |
Central Strength Member: |
Non-Metallic |
Strength Material: |
Glass or Aramid Yarn |
Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
Installation Style: |
Aerial |
Application: |
Communication |
Certification: |
Reach,Tlc,etc |
Type: |
GYFTY |
Connection Structure: |
Optical Fiber Cable |
Allowed Lateral Pressure: |
Short Term 1500n; Long Term 600n |
Allowed Tensile Strength: |
Short Term 1000n; Long Term 300n |
Core: |
24 Core |
Brand: |
Tw-Scie or OEM |
Sheath Material: |
MDPE / HDPE / LSZH PE |
Product Description

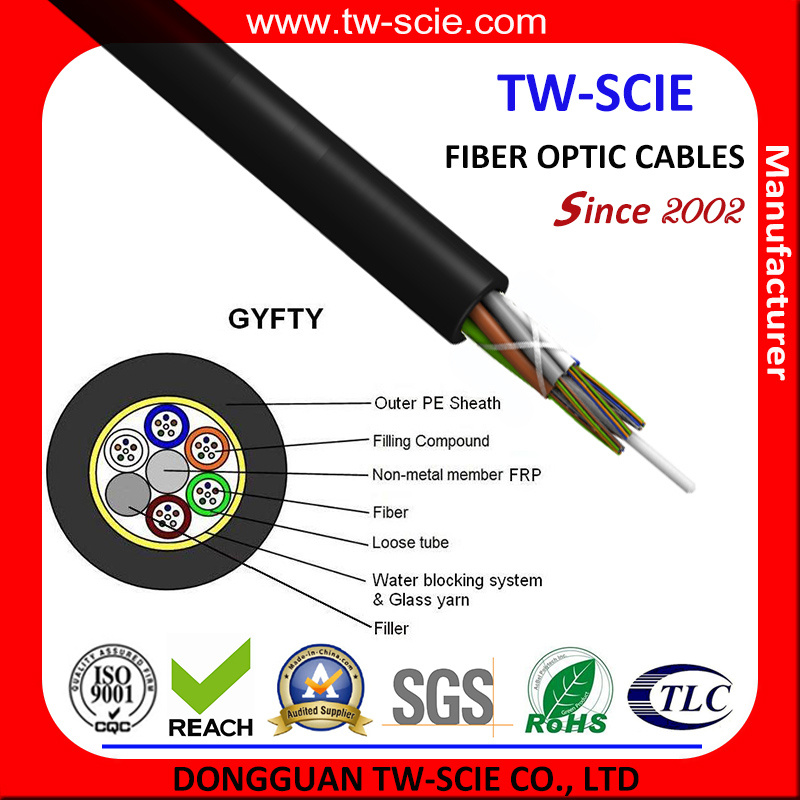

GYFTY 48 core G652D FRP outdoor fiber optic cable Singlemode
Optical Fiber Technical data: Technical data: |
Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
Static | Dynamic | Short term | Long term | Short term | Long term |
2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
38-60 | 10.2 | 110 |
62-72 | 11.7 | 115 |
74-96 | 13.4 | 150 |
98-120 | 15.0 | 190 |
122-144 | 16.6 | 230 |
146-216 | 16.9 | 240 |
218-240 | 19.3 | 305 |
242-288 | 21.5 | 375 |

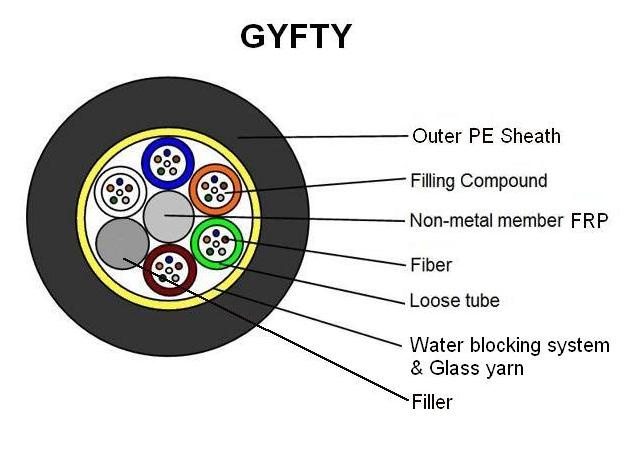

Characteristics:1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5. The following measures are taken to ensure the cable waterlight:
a. Single Fiber Reinforced Plastics as the central strength member
b. Loose tube filling compound
c.100% cable core filling
d. PSP enhancing moisture-proof
e. Water-blocking material
Applicable Fields:1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
Packaging & Delivery:Packaging Details
1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.
Delivery Time
5-7 working days after payment confirmed(depend on the quantity
Our Certificate:REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

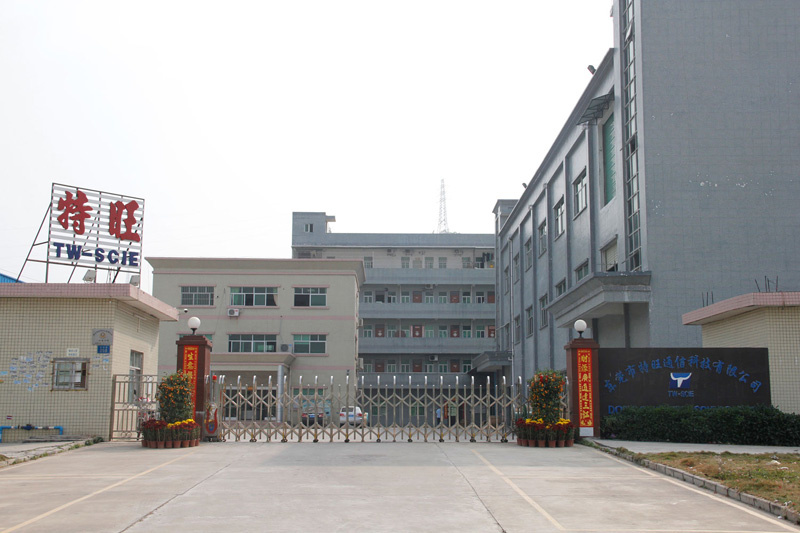

Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
