| Prod Model: |
GPS102 TK102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE FCC |
| GPS Tracker Model: |
Portable Tracking Device for Person |
| Warranty: |
12 Months |
| Battery: |
1000mAh Li-ion Battery |
| Car Charger: |
12V~24V Input, 5V Output |
| Small Size: |
Yes |
| OEM/ODM: |
Support |
| Dual GPRS Communication Protocol: |
TCP /UDP |
| Tracking Solution: |
SMS/Web Platform /APP Software |
| Tracking Map: |
Google Map |
| Type: |
GPS Tracker |
| Use: |
Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multichannel |
| Model: |
Set-real Type |
| Chip: |
SiRF |
| Certification: |
ISO/TS16949 |
| Screen Size: |
No Screen |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Brand: |
Coban |
Product Description

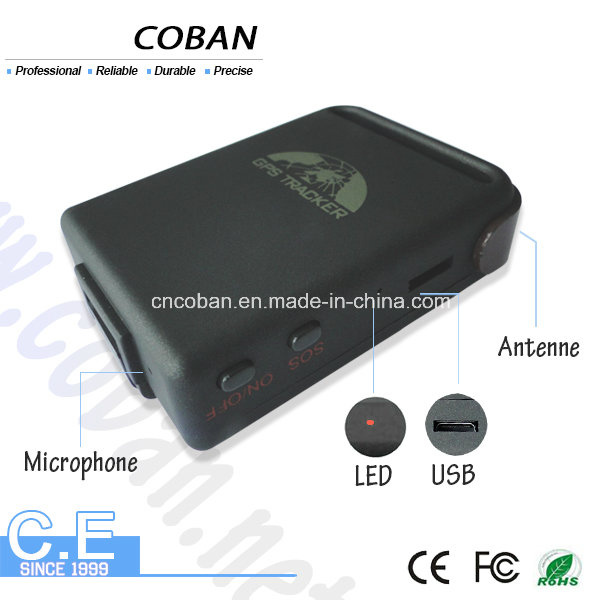

GPS tracker tk102
Mini GPS Tracker TK102 for Persons car, manufacturer price GPS Tracker GPS102
1.cheap GPS Tracker with manufacture price
2.TCP/UDP GPRS protocol
3.real time gps tracking
4.low battery, sos alarms
5.CE FCC certificate
Model: GPS tracker 102
Advantages of products:
*With internal memory,support SD memory
*Quiver/sensor alarm (adjustable)
*Powerful magnet+water proof,adsorbing in the hidden place of car.
*Get location in real street/address name
*Location based service function.
*Multiple tracking ways;Provide monitor software with the global map free,
real-time track by your computer or PDA cell phone or google earth.
*Standby 80hours.
*Small cubage;
Dimension: 46*64*17mm (1.8*2.5*0.65inch)
Weight: 40g
Integration design(antenna and battery inside);easy to hide and take along with you
*Can support platform www.baanool.net or www.gpstrackerxy.com for real time track on map or inquire the target's position by mobile phone.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence.
*Move alarm
*Over speed alarm.
*Low battery and SOS alarm function
*TCP/UDP switch
*Forward the third parties'message
*Configure parameters by USB
Content |
Specifications |
Dim. |
64mm x 46mm x 17mm(1.8"*2.5"*0.65") |
Weight |
50g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS accuracy |
5m |
Time To First Fix |
Cold status 45s
Warm status 35s
Hot status 1s |
Car charger |
12-24V input
5V output |
Wall charger |
110-220V input
5V output |
Battery |
Chargeable changeable 3.7V 1000mAh Li-ion battery |
Standby |
80hours |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +55°C |
Humidity |
5%--95% non-condensing |
Applying directions:
*Vehicle rental/out-door machines and equipments ect. guard tracking
*Protect child / the old / the disabled / pet etc
*Provide peace-of-mind for businessmen
*Manage personnel
*Track criminals secretly
Optional accessories:
*Cigarette light charger
*Hard wire charger
*2GB SD memory card
Delivery and shipping:
We will send the good out in 2-3 working days once received your payment with real time tracking No.
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.coban.net
E >: IOS and Android APP
