| Prod Model: |
Gps303 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
9.6X 5.3 X 1.6cm, 70g |
| Networks: |
GSM/GPRS |
| Main Functions: |
Tracking Motorcycle, Cut Engine |
| Microphone: |
External, for Voice Monitor |
| Relay For Cut Engine: |
Included |
| GSM Antenna: |
Built in |
| GPS Antenna: |
Built in |
| Fuel Sensor: |
Optional |
| Waterproof: |
Yes |
| Tracking Map: |
Real Time Google Maps |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
Motorcycle GPS Tracker |
| Port Number: |
20 Channels |
| Model: |
Tk303f |
| Screen Size: |
No Screen |
| Chip: |
CB900 |
| Brand: |
Coban |
| Certification: |
ISO9001 |

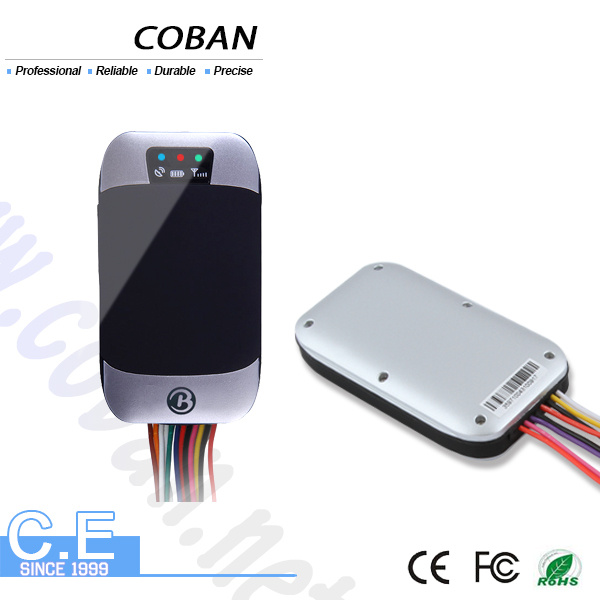

Product Description
Model : GPS303f , GPS303G(with remote )
5 tracking solutions:
SMS tracking by calling, return google map link
Absolute street address by sms
Free software
Free IOS/Android app
Optional web server
Technical specifications:
Size: 9.6x 5.3 x 1.6cm, 70g
Networks: GSM/GPRS
Bands: 850/900/1,800/1,900MHz
GPS sensitivity: -159dBm
GPS accuracy: 5m
Time to first fix:
Cold status: 45 seconds
Warm status: 35 seconds
Hot status: 1 second
Car charger range: 12-24V
Battery: chargeable 3.7V/500mAh Li-ion
Storage temperatures: -40 to +85°C
Operating temperatures: -20 to +70°C
Humidity range: 5-95% RH (non-condensing)
GPS303 Specifications
| Content | Specification |
| DIM | 9.6×5.3×1.6cm |
| Weight | 70g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 700mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Main functions :
1.For all 12-24V vehicles
2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.Multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms : ACC/Shock/Door open alarms
8. Shutdown engine by SMS.
9.Support 2GB MicroSD card
10.Built-in memory for 16,000 positions
11.Built-in 500 mA polymer battery
12.SMS tracking on cell phone with google map link
13. Get absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
Package content :
GPS Unit
12 PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
Optional accessories : Siren ,Remote controller , Fuel sensor
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
