GLS-C60H Distance Laser Sensor

Name: GLS-C60H Distance Laser Sensor
Brand: all-electronics-online.com
SKU: 685939212
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLS-C60H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Analogue Output:	4-20mA
Output:	Analog Sensor
Usage:	Position Sensor

Product Description

Features:
A laser based rangefinder kit suitable for OEM applications.
Measures the distance to most surfaces and objects.
Can detect targets up to 60 meters away with a
resolution of 37.5 centimeters.
Update rate is programmable from 1 to 1000 readings per second.
Includes digital communication interface.
Fully calibrated and ready to run.
Available as single units or in production quantities.

Appendix A :: Specifications:

Power supply voltage	5.0 V ± 0.5 V DC
Power supply current	150 mA (maximum)
Measuring range	80 m (natural targets)
Resolution	37.5 cm
Update rate [readings per second]	1 to 1000 readings per second
Laser power	14 W (peak) <11 mW (average) Class 1M
Weight	185 g (6,53 oz)

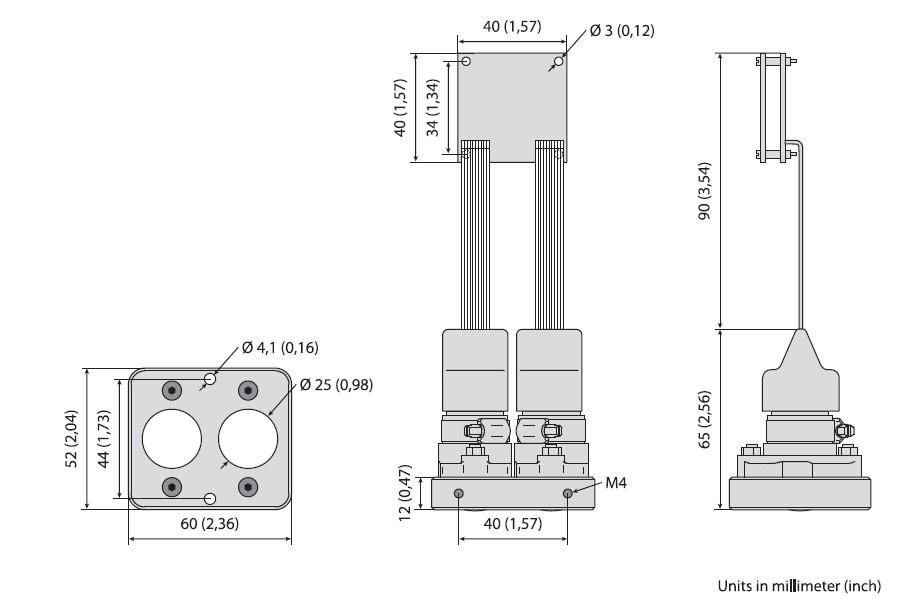

Optical module dimensions	60 mm x 52 mm (front face) 25 mm (laser lens) 25 mm (receiver lens)
Electronic modules dimensions	40 mm (length) x 40 mm (width)
Operating temperature	0 ... 40°C
