GLS-C60 Distance Laser Sensor

Name: GLS-C60 Distance Laser Sensor
Brand: all-electronics-online.com
SKU: 685939202
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLS-C60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Analogue Output:	4-20mA
Output:	Analog Sensor
Usage:	Position Sensor

Product Description

Features:
A laser based rangefinder kit suitable for OEM
applications.
Accurately measures the distance to most surfaces and objects.
Can detect targets over 60 meters away with a resolution of 1 centimeter.
Updates at 8 readings per second.
Includes digital and analog interfaces with programmable capabilities.
Easy to configure using the built-in menus.
Fully calibrated and ready to run.
Accessory cards with standard interfaces speed up embedded development.
Available in single units or production quantities.

Appendix A :: Specifications:

Power supply voltage	5.0 V ± 0.5 V DC
Power supply current	150 mA (maximum)
Measuring range	60 m (natural targets)
Resolution	1 cm
Update rate [readings per second]	8 readings per second
Laser power	14 W (peak) <11 mW (average) Class 1M
Weight	GLS-C60: 185 g (6,53 oz) GLS-C60 INT: 205 g (7,23 oz)

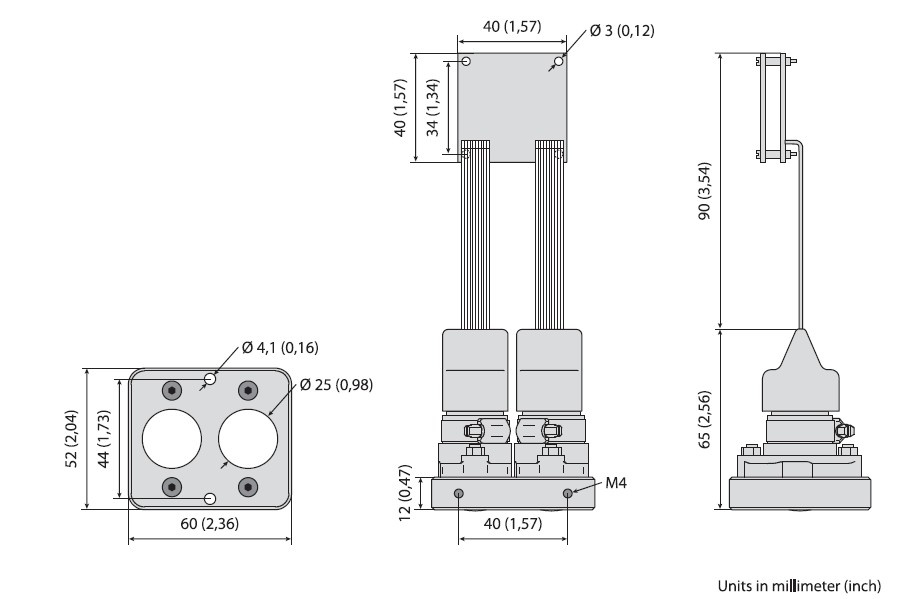

Optical module dimensions	60 mm x 52 mm (front face) 25 mm (laser lens) 50 mm (receiver lens)
Electronic modules dimensions	40 mm (length) x 40 mm (width)
Operating temperature	0 ... 40°C
