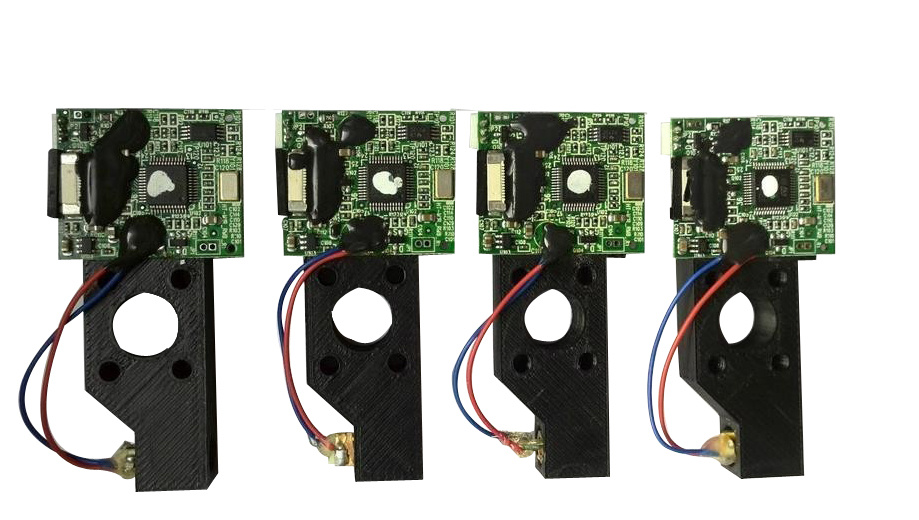

GLS-C5 Distance Laser Sensor Module

Name: GLS-C5 Distance Laser Sensor Module
Brand: all-electronics-online.com
SKU: 685944392
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLS-C5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Analogue Output:	4-20mA
Output:	Analog Sensor
Usage:	Position Sensor

Product Description

Features :
Measuring Range Distance : 0.05-3M ;
Port: RS232 or USB;
Analogue Power Output ;
Consumption Current : 100mA;
Supply Voltage : 4.5 to 5.5V ;
Detection Angle: 0.1 ° ;
Package Size : 53*20*18mm.

Using :
Home care / Household Robot Cleaner Navigation and Positioning ;
General Robot's Navigation and Positioning ;
Intelligent Toys Barrier Positioning Detection ;
Environmental Scanning and 3D Rebuilt ;
General SYNCH and Building Map .

Electrical Data

Processor :	32 Bits ARM
Voltage :	4.5-5.5V DC ±5%
Operation Current :	80-120mA Typical
Stand-b Current:	Not Available
Environment
Temperature-operation:	+32° F to +105 ° F( 0° to +50 °)
Temperature-Storage:	-15° F to +140 ° F( -16 °to +60 °)
Humidity-operation:	10% to 80% RH
Humidity-Storage:	10% to 90% RH
Ambient Light Rejection:	10000 Lux max . ( Fluorescence) 5000 Lux Max.(Sunlight)
Shock Resistance:	Approved by 1.2m drop test on concrete
Warranty:	1 years*
Safety Approval:	FCC Class-B,CE,EMC,U/L,CSA *
IP Level :	IP30
Physical
Case Material :	30% PC +70% ABS
Dimension:	532018mm
Body Material:	ABS
Type of Connector:	ZIP Connector/ 12P
