| Prod Model: |
MPM416W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0~1...200m |
| Output: |
Digital Sensor |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Processing Pressure Measurement |
| Accuracy: |
0.25%Fs |
| Explosion-Proof: |
Intrinsic Safe |
| Key Words: |
Fuel Tank Pressure |
| Operation Temperature: |
-10 ~ 80 C |
| Storage Temperature: |
-40 ~ 100 C |
| Over Pressure: |
1.5 Times Fs |
| Accuracy Grade: |
0.25%Fs(Typ.) |
Product Description

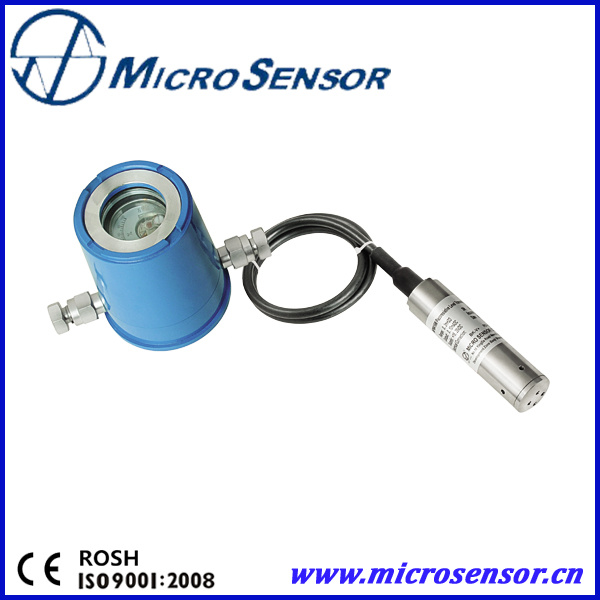

Fuel Tank Level Transmitter MPM416W
Features:
1. Integrated construction
2. Submersible
3. Fuel tank
4. Stainless steel
5. Full welded
Applications:
1. Petroleum
2. Chemical
3. Power plant
4. Urban water supply and drainage
5. Hydropower
Certificates:
1. CE
2. Exia intrinsic safe
3. CCS
Specifications:| Pressure range | MPM416W | 1 2 5 10 20 50 100 200mH2O |
| MPM416WK | 1 2 3 4mH2O |
| MPM416WRK | 1 2 5 10 20mH2O |
| Overpressure | 1.5times FS |
| Accuracy | +0.25%FS(typ.) +0.5%FS(max.) |
| Stability error | +0.1%FS(typ.) +0.2%FS(max.) pressure range>20mH2O |
| +10mmH2O(typ.) +20mmH2O(max.) pressure range≤20mH2O |
| +20mmH2O(typ.) +30mmH2O(max.) only for MPM416WRK |
| Temp. drift | | Zero drift, + %FS/ºC | Sensitivitydrift,+%FS/ºC |
| Rang>10mH2O | 0.005(typ.) | 0.01(max.) | 0.02(max.) |
| Range ≤10mH2O | 0.01(typ.) | 0.02(max.) | 0.02(max.) |
| Range ≤5mH2O | 0.015(typ.) | 0.03(max.) | 0.02(max.) |
| Range ≤2mH2O | 0.025(typ.) | 0.05(max.) | 0.02(max.) |
| Transmitting | 2-wire | 3-wire | 3-wire |
| Power supply | 15~30VDC(Intrinsic safe version is supplied through safe barrier) | 15~28VDC | 15~28VDC |
| Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
| Load(Ω) | <(U-15)/0.02A | <(U-15)/0.02A | >5k |
| Material contacting with media | MPM416W | Housing: stainless steel 1Cr18Ni9Ti | O-ring: Viton |
| Diaphragm: stainless steel 316L | Rubber casing: NBR |
| Cable: Φ7.2mm PVC/Polyurethane cable with vented tube |
| MPM416WK | Stainless steel 1Cr18Ni9Ti, red copper, Viton O-ring |
| MPM416WRK | Stainless steel 1Cr18Ni9Ti |
| Operation temp. | -10ºC~80ºC; Intrinsic safe version: -10ºC~60ºC |
| Storage temp. | -40ºC~100ºC |
| Protection | IP68(sensor part), IP65(connection box) |
| Ex-proof class | ExiaIICT6 |
| | | | | | | | |

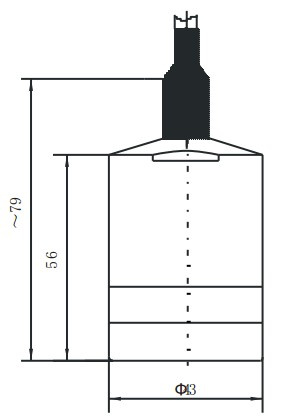

Outline Construction:
