| Prod Model: |
V8-OEM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Diesel /Oil/Fuel |
| Display: |
Mecahnical Type |
| Pressure: |
32bar |
| Flow Range: |
4-200L/H |
| Accuracy: |
<1% |
| Measuring Media: |
Liquid |
| Size: |
8mm |
Product Description
Low fuel consumption diesel generator
Product introduction

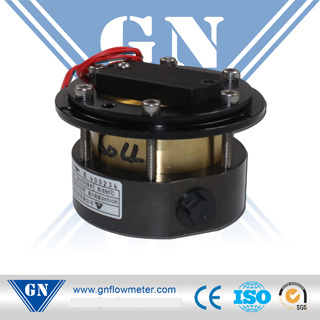

GN Series fuel consumption flow meter, is made by technology from Switzerland. It is most popular Fuel consumption flow meter in the world. It belongs to higher precision in flow instrument field. It has many strongpoints, like: Wide range, high precision, strong reliability, easy to read and easy installation etc. The flow meter is suitable for counting the fuel consumption of the transportation vehicle, like: Truck, passenger car and mobile machinery shop etc. It can local indicate or pulse output output function
Product function
Accurately count the actual fuel consumption, effectively monitor and manage of fuel consumption. Improve the fuel use management tools of the transportation enterprise, it can achieve the single car 's cost count of actual fuel consumption.
Minimize abnormal fuel loss and vehicle maintenance cost.
Technical data
V4 flow sensor data
Data: Connection: M14X1.5 Female screw
Pressure: PN 32 bar.
Repeatability: ± 0.1%
Range: 1~80L/H.
Normal rate: 50L/H
Max. Error: 2.0~80 L/H: ± 1%
1~2 L/H: +1/-2 %
V8 flow sensor data
Connection: M14X1.5 Female screw
Pressure: PN 32 bar.
Repeatability: ± 0.1%.
Range: 4~200L/H
Normal rate: 135L/H
Max. Error: 4~200 L/H: ± 1%
Pipe fitting parts: Banjo bolt M14*1.5, hose connector for 6mm/8mm/10mm/12mm hose
Packaging & Shipping
Payment Terms
1. Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4. Payment: T/T, Western Union, Paypal
Our Services
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
|
Model |
Mechanical counter |
Filter |
Pulse |
Flow range |
Accuracy |
Thread |
Pressure |
|
V4 |
YES |
NO |
NO |
1-80L/H |
1% |
M14*1.5 |
32bar |
|
V4B |
YES |
YES |
NO |
1-80L/H |
1% |
M14*1.5 |
32bar |
|
V4B-OEM |
NO |
YES |
YES |
1-80L/H |
1% |
M14*1.5 |
32bar |
|
V4-OEM |
NO |
NO |
YES |
1-80L/H |
1% |
M14*1.5 |
32bar |
|
V4R |
YES |
NO |
YES |
1-80L/H |
1% |
M14*1.5 |
32bar |
|
V4BR |
YES |
YES |
YES |
1-80L/H |
1% |
M14*1.5 |
32bar |
|
V8 |
YES |
NO |
NO |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8B |
YES |
YES |
NO |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8B-OEM |
NO |
YES |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8-OEM |
NO |
NO |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8R |
YES |
NO |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8BR |
YES |
YES |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar
|
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
