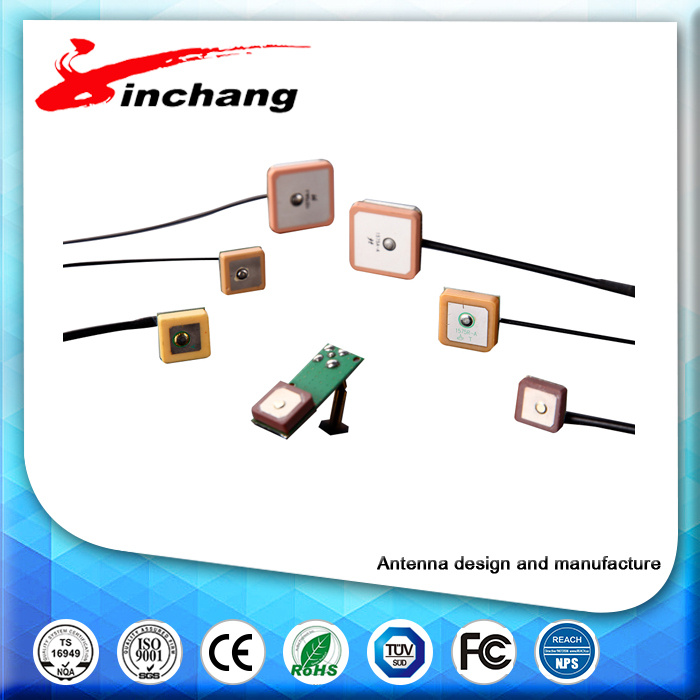

Free Sample High Quality Gnss Surveying antenna

Name: Free Sample High Quality Gnss Surveying antenna
Brand: all-electronics-online.com
SKU: 712368735
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCA228
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	62.5*146.5 mm
Band Width(MHz):	5 MHz
V.S.W.R(in Bw):	1.5:1
Gain(Zenith):	45 dBi
Polarization:	Rhcp
Impedance:	50
Axial Ratio:	3
Phase Center Error:	±2mm
Horizontal Coverage Angle:	360
Usage:	Surveying Antenna
Operating Wavelength:	Microwave
Directionality:	Directional Antenna
VSWR:	<1.5
Material:	ABS

Product Description

Key Specifications/Special Features:

Size:62.5*146.5mm

Item Specifications
Antenna Frequency GPS L1/L2
GLONASS L1/L2
COMPASS B1/B2/B3
Galileo E5b/E6
Polarization RHCP
Axial Ratio ≤3dB
V.S.W.R ≤1.5
Peak Gain ≥5dBi
Impedance 50Ω
Phase Center Error ±2mm
Horizontal coverage angle 360°
LNA Gain 40±2dB
Noise Figure ≤1.5dB
Passband fluctuation ±1dB
Supply Voltage 3~5.5V DC
Current Consumption ≤45mA
V.S.W.R ≤2.0
Mechanical Connector TNC-K
Radome Material ABS
Mounting Method Screw
Environmental Operating Temperature -40ºC~+85ºC
Relative Humidity Up to 95%
Ingress Protection IP66
Environmentally Friendly ROHS Compliant

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
