Prod Model: |
Multilayer PCB Board assembly |
Assembly: |
SMD |
Size: |
88mm*60mm |
Copper Thickness: |
1oz |
Biz Type: |
Factory |
Prototype: |
Yes |
Surface Treatment: |
HASL |
Pth: |
+/-0.075mm(3mil) |
Supported Files: |
Protel Autocad Powerpcb Orcad Gerber |
Heat Shock: |
288c,10sec |
Metal Coating: |
Copper |
Mode Of Production: |
SMT |
Layers: |
Double-Layer |
Base Material: |
FR-4 |
Certification: |
SGS |
Customized: |
Customized |
Condition: |
New |
Product Description

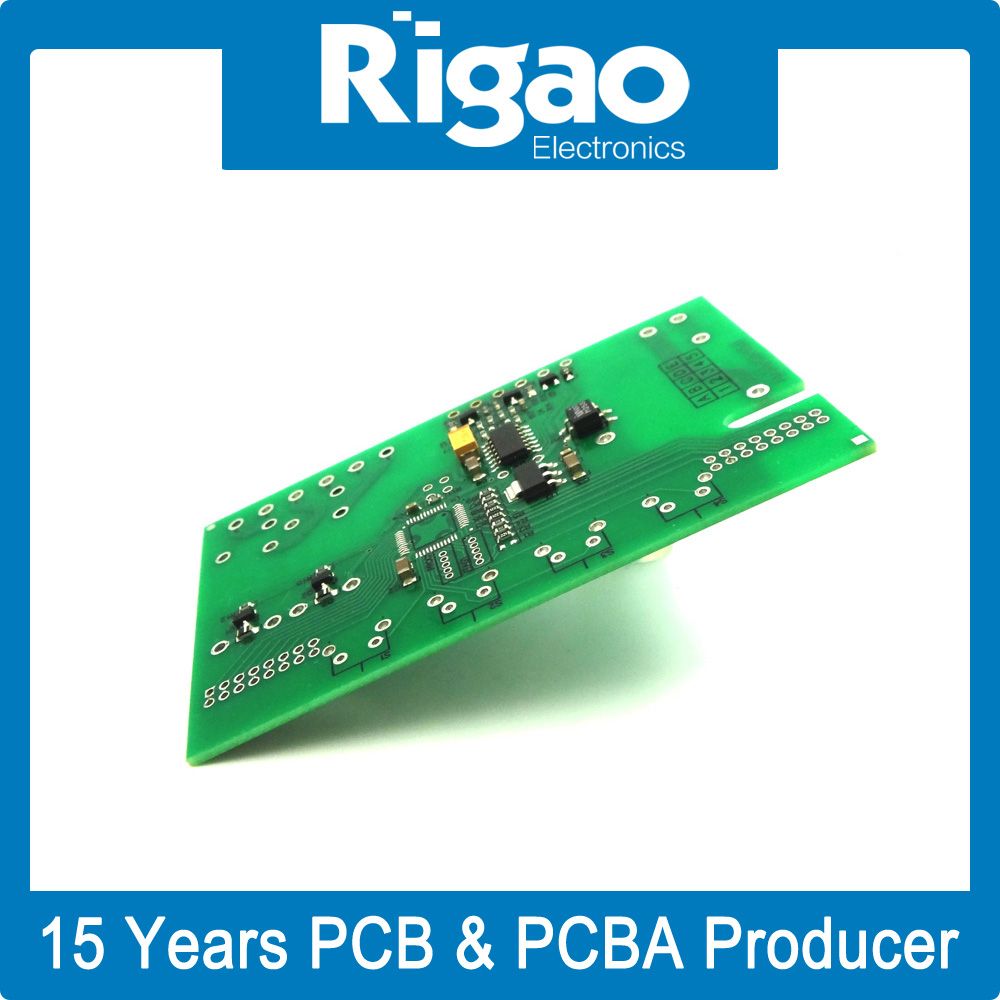

Fr4 HDI High Tg Multilayer PCB Board assembly
Welcome to Rigao-pcba
Rigao-pcba electronic Co.,Ltd is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now Rigao-pcba has become a rapidly growing worldwide provider of solutions in three principal areas - Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
We have years of experiences in Electronic board field. From prototype to production and scheduled deliveries we are able to guarantee a complete service with technical backup, offering a cost advantage and continuity of supply. Our service include offering
Specification of Fr4 HDI High Tg Multilayer PCB Board assembly:
Type of PCB Assembly | SMT, Thru-hole,COB |
SMT | Position accuracy:20 um |
Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
Max. component height::25mm |
Max. PCB size:680×500mm |
Min. PCB size:no limited |
PCB thickness:0.3 to 7mm |
Wave Solder | Max. PCB width:450mm |
Min. PCB width: no limited |
Component height:Top 120mm/Bot 15mm |
Sweat-Solder | Metal type :part, whole, inlay, sidestep |
Metal material:Copper , Aluminum |
Surface Finish:plating Au, plating sliver , plating Sn |
Air bladder rate:less than20% |
Supporting: | Software burning and Function Testing |
Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
Lead Time | 12days-15days |
File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
Our services Range:
1.Rigid PCB (up to 22 Layers),
Flexible PCB/FPC (1~6 Layers),
Rigid-Flex (2~10 Layers),
Aluminum-based PCB (1~4 Layers),
High Density Interconnection/HDI PCB,
High frequency material PCB
2. Assembly Services
3. Components purchasing
4.pcb assembly
Application of Fr4 HDI High Tg Multilayer PCB Board assembly:
It can be used in some electronics function control prducts or come ture some industrial function . Actually all the boards that we want to manufacture is based on your design,your gerber file ,your bom list, or your requirement about the funcation of the comsumer or other electronics ,or the diagram schematic will be needed for us to design a perfect simple yellow electronic board for your comsumer electronics products .
Q&A:
What products Rigao can supply?
Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
Rigao can make HASL lead/lead free,gold finishing.
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
Requested information for Fr4 HDI High Tg Multilayer PCB Board assembly:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
5. ODM Capability:
Till now we have successfully developed Analogue high performance FM transmitter, Wide frequency
stereo transmission circuit, SSB communication system, High performance wave receiving antenna,
Digital Frequency Hopping Radio Set, Digital Addressing communication system, etc. Moreover.
Any needs and questiones ,please feel free to contact me!!!
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
