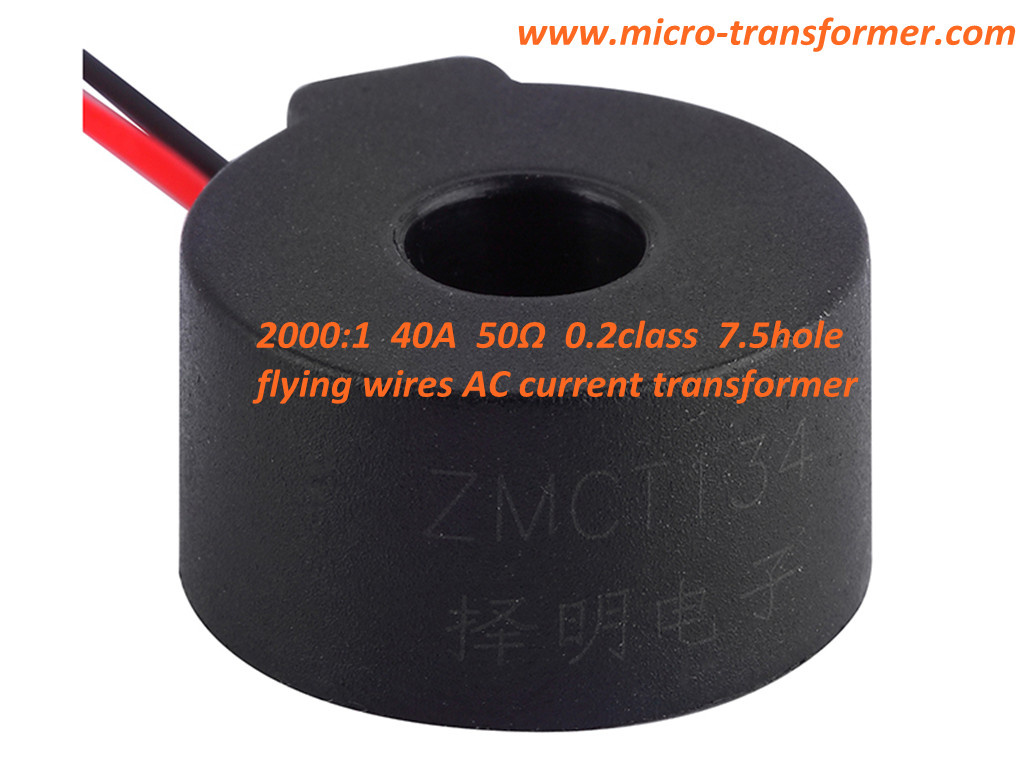

Flying Wires Current Transformer 2000: 1 40A 50ohm 0.2class 7.5hole (ZMCT134)
| Price: |
US $ 0.313-0.358/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
ZMCT134 |
| Inner Hole: |
7.5mm |
| Turns Ratio: |
2000:1 |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
Output Leads Installation |
Product Description
ZMCT134 Current Transformer
Features and application: Small size,high accuracy,good consistency,for current and power measurementKey words: current transformer

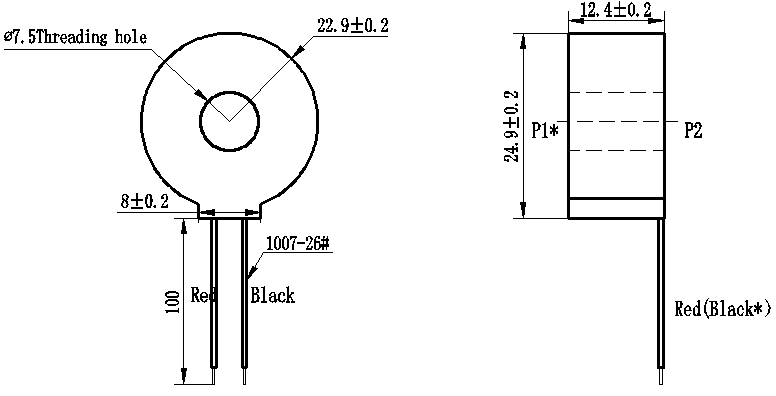

Structural parameters:
Front view Left View The main technical parameters:| model | ZMCT134 |
| input current | 0~40A(sampling resistor 50Ω) |
| Rated output current | 2.5mA at input 5A |
| turns ratio | 2000:1 |
| phase angle error | ≤30'(input 5A,sampling resistor 50Ω) |
| linear range | 0~40A(sampling resistor 50Ω) |
| linearity | ≤0.2%(5%dot~120%dot) |
| Permissible error | -0.2%≤f≤+0.2%(input 5A,sampling resistor 50Ω) |
| isolation voltage | 4500V |
| application | Current and power measurement |
| Encapsulation | Epoxy |
| installation | Output leads installation (conventional lead length shown in drawing) |
| operating temperature | -40ºC~+85ºC |
Direction for use:

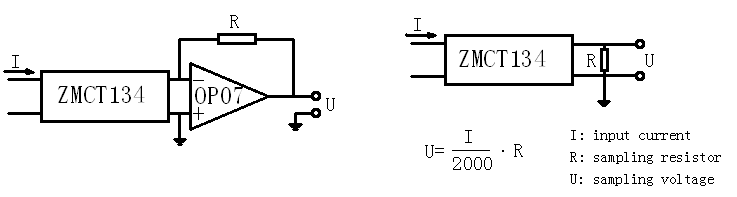

Figure I FigureII1. ZMCT134 used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor.
