Flush Diaphragm Type Intelligent Acid Level Sensor
| Price: |
US $ 100-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TLZ440 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Range: |
0~0.5....50mh2o |
| Overpressure: |
1.5 F.S |
| Accuracy Class: |
0.25%F.S, 0.5%F.S, 1.0%F.S, as Required |
| Stability: |
0.25%F.S Max. 0.5%F.S |
| Working Temp. (Degrees Celsius): |
-20~80 |
| Temp. Compensation (Degrees Celsius): |
-10~70 |
| Media: |
Compatible with Teflon |
| Transmission Type: |
2-Wire, 3-Wire, as Required |
| Output: |
4-20mA DC, 0-5V DC, 1~5V DC, as Required |
| Power Supply: |
10~30V DC, as Required |
| Material: |
Anti-Corrosive |
Product Description
Tosilon Flush Diaphragm Type Intelligent Acid Level Sensor (Ex Approved)Design and Manufacturing according to CE StandardIntroduction Tosilon TPZ440/450 Level Transmitter is of high reliability, stability, accuracy. It adopts advanced ceramic core imported from German. The material of the body and the core applies titanium alloys and Teflon. The application of TLZ440/450 is able to be performed in strong acid and alkali.
Features· Titanium and Teflon construction;
· Pressure Port optional;
· Multi-Signal optional;
· High Reliability and Accuracy;
· Ceramic core and cell imported from German;
· Resistant to Strong Acid and Alkali;

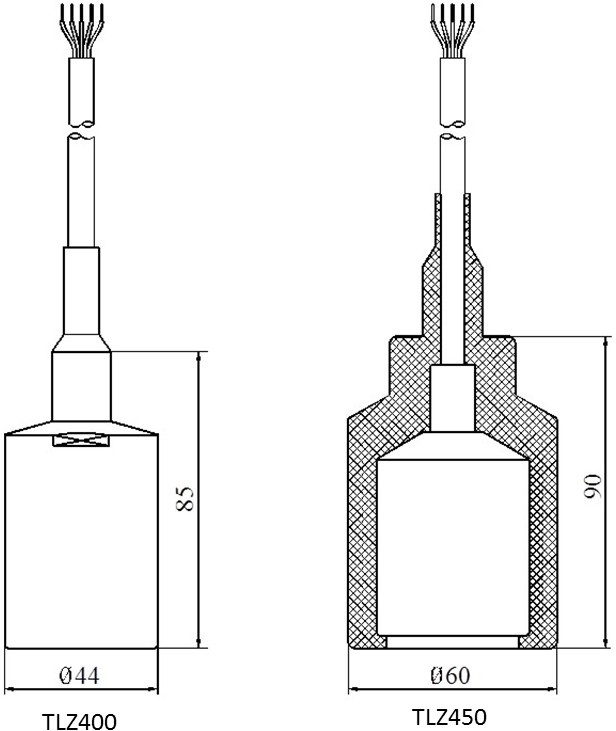

· CE approvedOutline Structure
Performance Parameters (For Details, please contact Tosilon)
Pressure Range Overpressure0~0.5....50mH2O 1.5 F.SAccuracy
±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability Working Temp.0.25%F.S Max. 0.5%F.S -20 oC~80 oC Temp. Compensation Media
-10 oC~70 oC Compatible with Teflon
Transmission Type Output2-wire, 3-wire 4-20mA DC, 0-5V DC, 1~5V DC, 0~10V DCPower Supply
10~30V DC, 6~24V DC/AC, 11~30V DC/AC
Load Resistance Insulation(U-10)/0.02(Ω) >100M Ω@50VElectrical Connection
Water-proof connection IP68
Pressure Port
Submersible, Separated Type
Pressure Type Response TimeGauge, Sealed Gauge, Absolute 10ms For more information, please contact Tosilon
