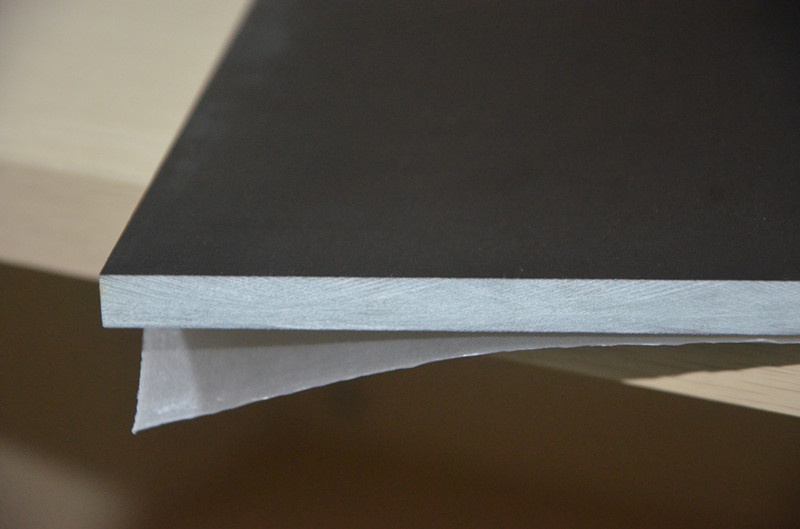

Fine Texture ESD-G10/Fr4 Epoxy Laminate

Fine Texture ESD-G10/Fr4 Epoxy Laminate
Price: US $ 1/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 500kg
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: esd
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ESD: on Surface or 100% Throughout
Application: Switch Baseplate
Type: Insulation Sheet
Chemistry: Inorganic Insulation
Material: Fiberglass
Thermal Rating: F 155
Maximum Voltage: 20KV~100KV
Brand: Nova
Color: Black

Product Description

Antistatic Epoxy Laminated Sheets is composed of G10/FR4 core with anti-static coating on one or both sides or 100% throughout permanent antistatic properties.

Anti-static value 10^6 ohm to 10^9 ohm.

Applications:

These materials are used in applications below:

* Static Removed from wearing areas

* Conductive Fixtures For Electronic Applications

* Static Discharge Without Using Metals

* Light Weight, Machinable and ESD In One Material

* Electronic test equipment and electric rotor insulation

Specifications:

1) Color: Black

2) Sheet Size: 915*1220; 1020*1220mm or cut-to-size

3) Thickness Range: 0.5 - 50mm
Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
