Armored FC fiber optic patch cord for optical communication system
Descriptions

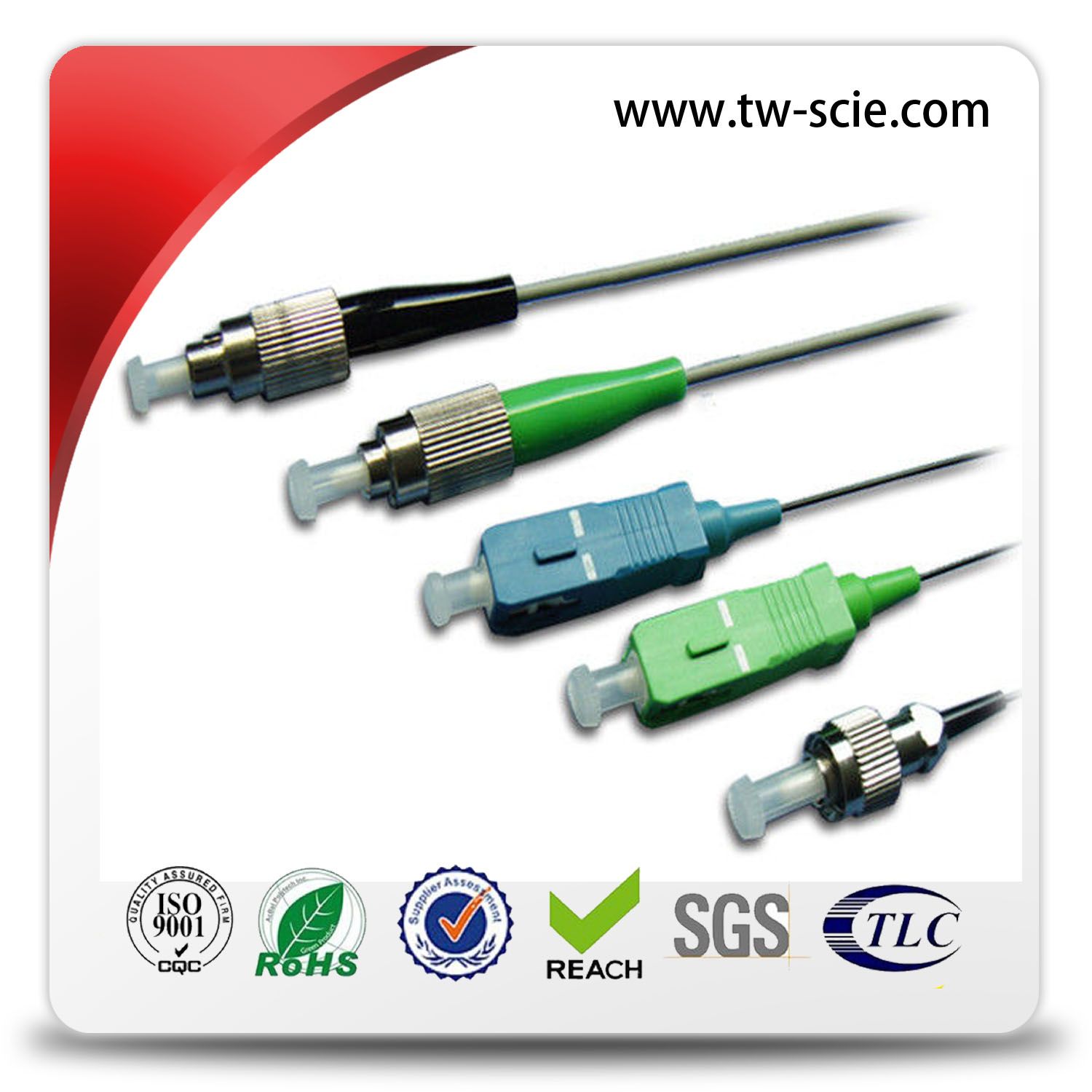

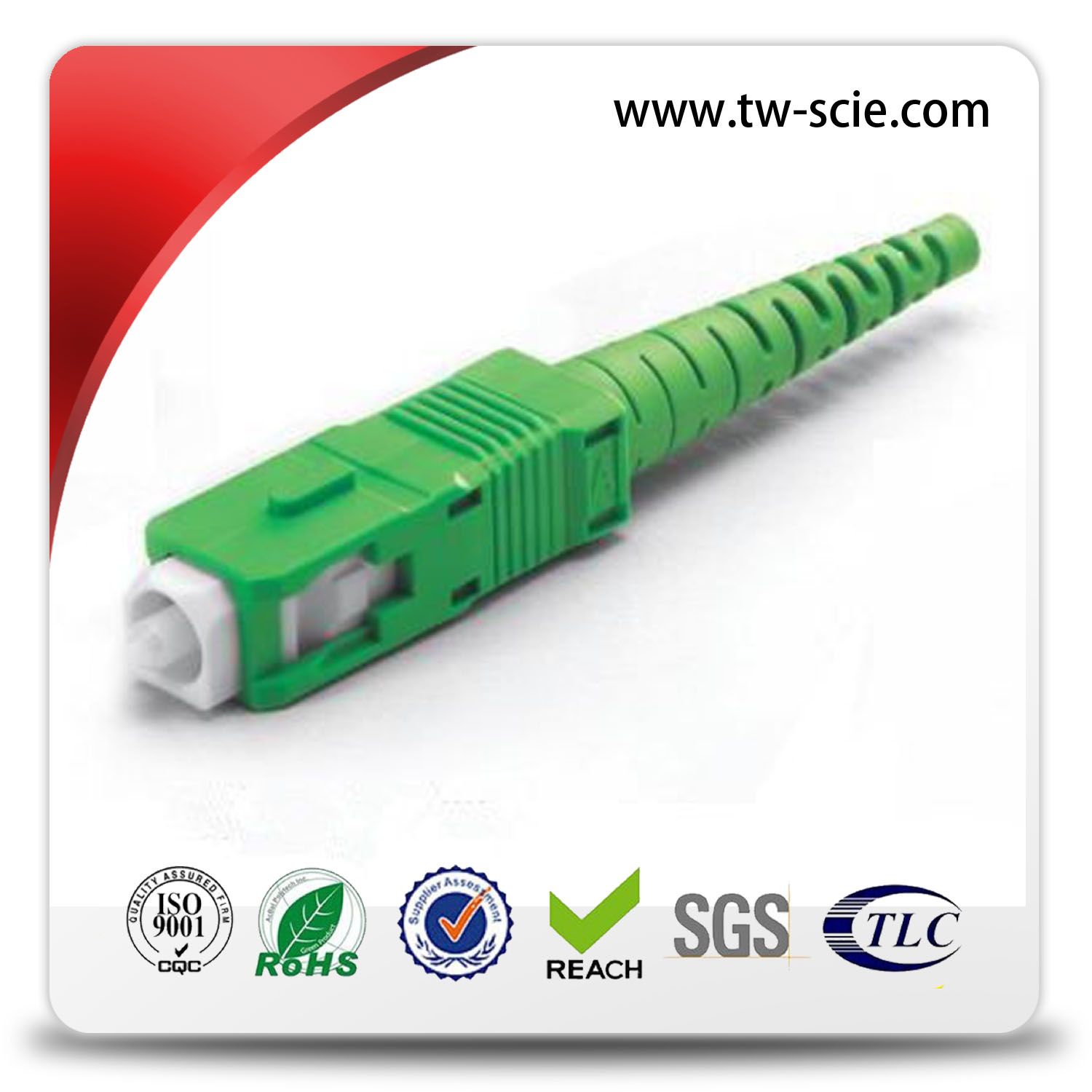

Optical Fiber Patch Cord (Jumper) is a optical fiber cable with two ends adding connectors to connect beam path. Pigtail is fiber cable permanently attached connector only at one end. Patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Application
--- Telecom Network
--- Local Ring Network
--- Optical Fiber Sensor
--- Optical Fiber Test Equipment
--- Optical Fiber Communication System
--- FTTH, LAN, PON & Optical CATV
Ordering Information
SCFC-1-SU-SU-B-3-00-C-20
1
Cable | 2
First End | 3
Second End | 4
Fiber Type | 5 Pigtail Dim. | 6 Fan Out Length | 7
Jacket Type | 8 Length |
| 1=1Fiber | FU(A)=FC/UPC(APC) | FU(A)=FC/UPC(APC) | H=Hi 780 | 09=Φ0.9 | 05=50cm | E=PE | 05=50cm |
| 2=2Fiber | SU(A)=SC/UPC(APC) | SU(A)=SC/UPC(APC) | F=Flex 1060 | 2=Φ2 mm | 10=100cm | C=PVC | 10=100cm |
| 4=4Fiber | … | … | D=G652D | 3=Φ3mm | … | H=LSZH | … |
| … | LU(A)=LC/UPC(APC) | LU(A)=LC/UPC(APC) | A=G657A | | 20=200cm | A=Armored | 20=200cm |
| R=Ribbon | X=Customization | B=G657B | X=Customization |
| | | W=Bow-type | |
| | | OM1=62.5/125 | |
| | | OM2=50/125 | |
| | | OM3=50/125 | |
| | | OM4=50/125 | |
Typical Technical Parameter| Parameter | Unit | Value |
| Connector | / | FC ST … SC LC |
| Ferrule | / | PC | UPC | APC(Step) | APC(Conical) |
| Fiber Type | / | SM | MM | SM | MM | SM | MM | SM | MM |
| Insertion Loss | dB | <0.25 | <0.20 | <0.25 | <0.20 | <0.30 | / | <0.30 | / |
| Repeatability | Time | >1000 |
| Interchangeability | dB | <0.10 |
| Return Loss | dB | >45 | >36 | >50 | >36 | >60 | / | >60 | / |

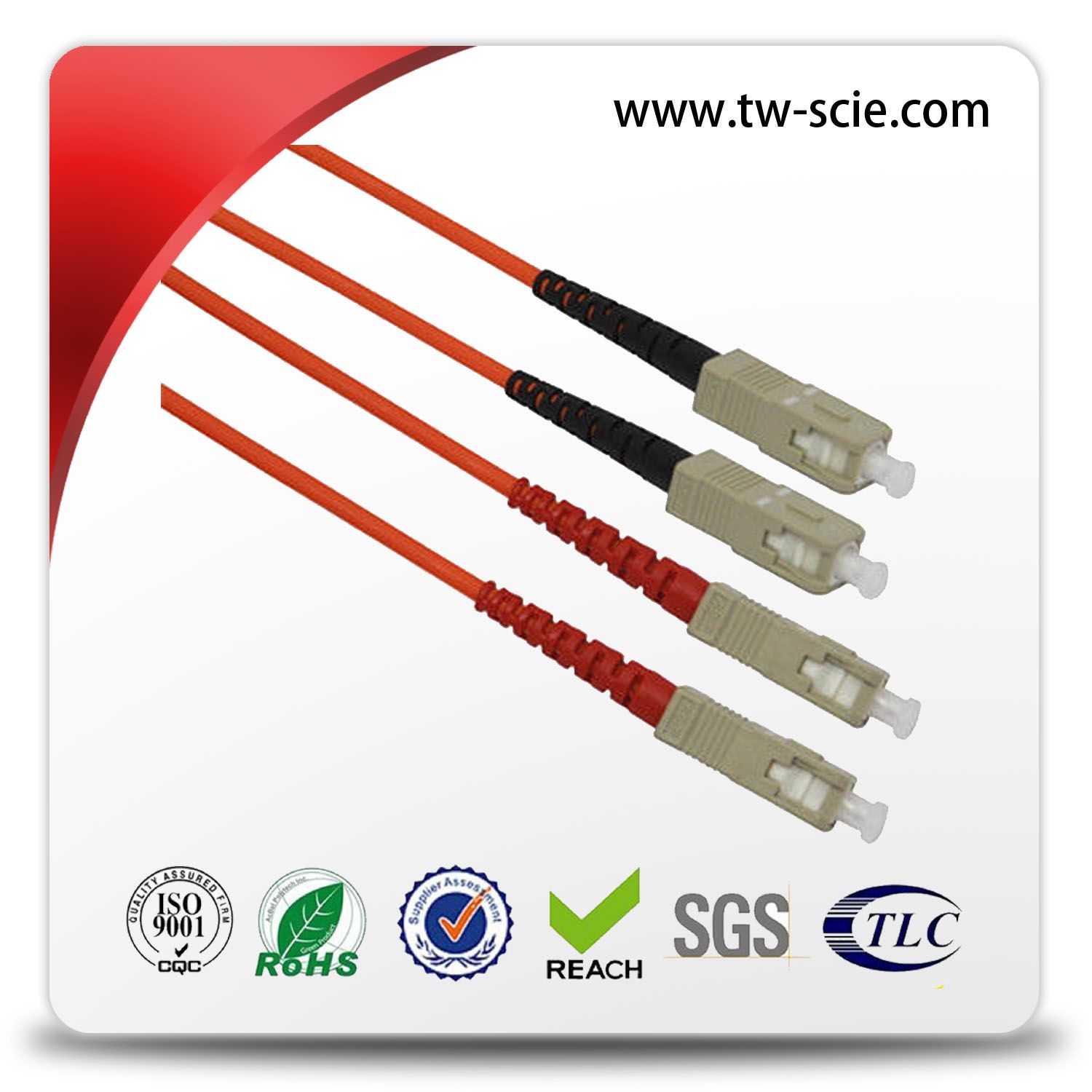

Fiber Patch Cord Properties
- LC to LC 50/125 Multimode Duplex patch cord
- LC / PC Multimode
- 50 / 125 um Multimode
- 3.0mm OD
- Orange Color
- PVC material
- ISO, CE, RoHS, UL
Description
A fiber optic patch cord is a fiber optic cable capped at either and with connectors that
allow it to be rapidly and conveniently connected to CATV , an optical switch or other
telecommunication equipment. Its thick layer of protection is used to connect the
optical transmitter , receiver and the terminal box.
Fiber optic patch cords are characterized by:
1. Low insertion loss
2. High return loss
3. Good repeatability
4. Good interchange
5. Excellent environmental adaptability
| Specifications |
| Connector Type | LC/PC Multimode |
| Connector Type | LC/PC Multimode |
| Zipcord Cable | 50 / 125 um Multimode |
| Cable Jacket ( OD: 3.0mm ) | Orange Color , PVC material |
| Shrink Tube | |
| | |
| Perfomance |
| Insertion Loss | < 0.5 dB |
| Fiber Extention | -0.05um < H < + 0.05um |
| Ferrule End - face Radius | 10 < R < 30mm |
| Apex Offset | < 50 um |
| Increase in insertion loss after 500 mating | 0.2 dB Max |
| Operation Temperature | -20ºC to +70 ºC |
| Storage Temperature | -20ºC to +80 ºC |
| Humidity (non- condensing) | 95% RH |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A: Incoming material inspected by QC.
B: Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
