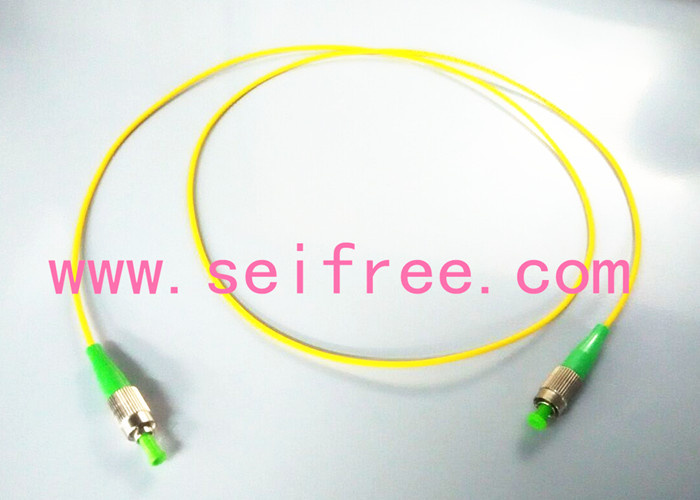

Fa Optical Patchcord with Single Mode

Name: Fa Optical Patchcord with Single Mode
Brand: all-electronics-online.com
SKU: 705206262
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFC-1-FA-FA-D-09-00-C-05
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	50cm
Cable:	1 Fiber
Stage:	Single Mode
Fiber Type:	G652D
Jacket Type:	PVC
Fan Out Length:	0cm
Ferrule:	APC
Application:	Sensor
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	ISO9001

Product Description

Description
Optical Jumper Wires are important parts of optic network. They have same or different type connector which is installed on the end of fiber optic cable.

Application
Optical Network Wiring
Test Equipment
CATV System
Telecommunication network
FTTH/FTTX

Quick Details
Place of Origin: Wuhan, China(Mainland)                      Model: Simplex/Duplex/Quad
Sleeve: ceramic sleeve                                                    Leadtime: 2 weeks
Mode: single mode

Company Profile
Business type: Manufacturer
Main products: optical passive devices, including optical coupler/splitter, PLC splitter, Fused WDM,TWDM,CWDM,OADM,DWDM, isolator, circulator, patch cord, adaptor etc.

Features
Low Excess Loss
High Return Loss

Ordering Information
SOFC-1-2-3-4-5-6-7-8

1Cable	2 First End	3 Second End	4 Fiber Type	5 Pigtail Dim.(mm)	6 Fan Out Length	7 Jacket Type	8 Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2 mm	10=100cm	C=PVC	10=100cm
4=4Fiber			D=G652D	3=Φ3mm		H=LSZH
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A		20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			B=Bow -type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
