Product Description

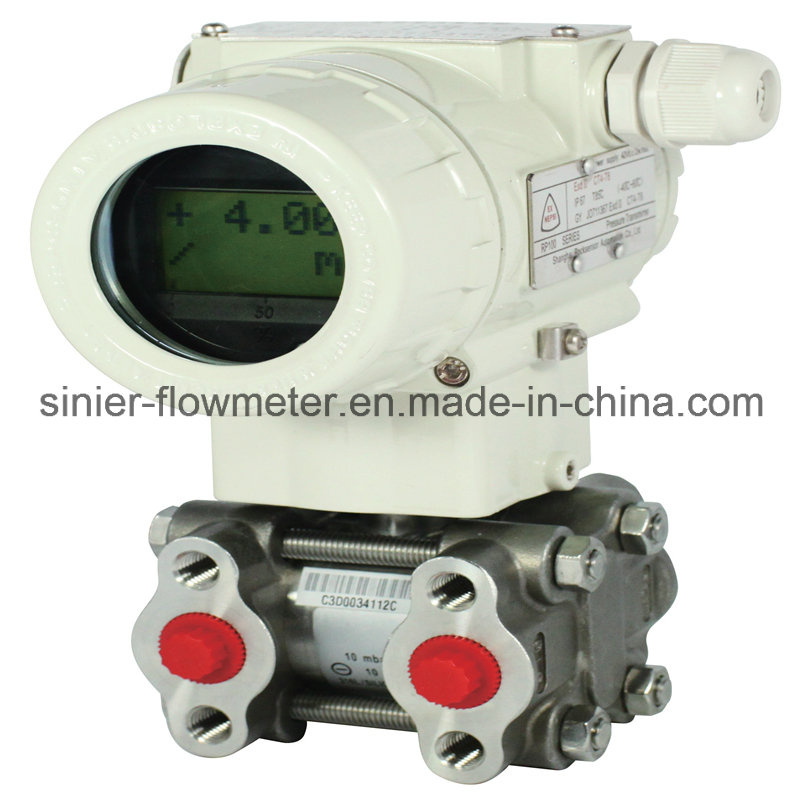

Explosion Proof Smart High Accuracy Pressure Transmitter with 4-20mA/Hart/Profibus Protocol
The pressure transmitter S3000 is suitable to measure differential pressure, gauge pressure, absolute pressure and level of liquid, gas, or steam flow. S3000 outputs a 4~20 mA DC signal corresponding to the measured pressure. Using together with communications HT31, S3000CD can also have the features of parameter setting and process monitoring. Model | Types of transmitter |
S3000CD | Differential pressure transmitter |
S3000CG | Gauge pressure transmitter |
S3000CA | Absolute pressure transmitter |
Code | Span(kPa) |
| S3000CD | S3000CG | S3000CA |
0 | 0-100Pa~1kPa(0-10~100 mmH2O)/(0-1~10mbar) | None | None |
1 | 0-200Pa~6kPa(0-20~600 mmH2O)/(0-2~60mbar) | 0-0.6kPa~6kPa /(0-60~600 mmH2O)/(0-6~60mbar) | None |
2 | 0-400Pa~40kPa(0-40~4000 mmH2O)/(0-40~400mbar) | 0-2kPa~40kPa /(0-200~4000 mmH2O)/(0-20~400mbar) | 0-2kPa~40kPa /(0-200~4000 mmH2O)/(0-20~400mbar) |
3 | 0-2.5kPa~250kPa(0-0.25~25 mH2O)/(0-25~2500mbar) | 0-2.5kPa~250kPa /(0-0.25~25 mH2O)/(0-25~2500mbar) | 0-2.5kPa~250kPa /(0-0.25~25 mH2O)/(0-25~2500mbar) |
4 | 0-20kPa~2MPa(0-2~200 mH2O)/ (0-0.2~20bar) | 0-30kPa~3MPa /(0-3~300 mH2O)/(0-0.3~30bar) | 0-30kPa~3MPa/(0-3~300Mh20)/(0-0.3~30bar) |
5 | None | 0-0.1MPa~10MPa /(0-1~100bar) | None |
6 | None | 0-0.21MPa~21MPa /(0-2.1~210 bar) | None |
7 | None | 0-0.4MPa~40MPa /(0-4~400 bar) | None |
Code | Signal output |
A | 4-20mA/HART |
Code | Materials of construction |
| Flange/connector | Drain/vent | Isolating diaphragm | Fill Fluid |
22 | 304 SST | 304 SST | 316L stainless steel | Silicon oil |
23 | 304 SST | 304 SST | Hastelloy C-276 |
24 | 304 SST | 304 SST | FEP plated on 316L |
25 | 304 SST | 304 SST | Tantalum |
26 | 304 SST | 304 SST | Gold plated |
2A | 304 SST | 304 SST | 316L stainless steel | Fluorinated oil |
2B | 304 SST | 304 SST | Hastelloy C-276 |
2C | 304 SST | 304 SST | Gold plated |
Code | Process connector gasket |
A | Perbunan(NBR) |
B | Viton (FKM) |
C | Teflon (PTFE) |
Code | Process connections |
1 | 1/4 NPT and 7/16 UNF thread No relief valve |

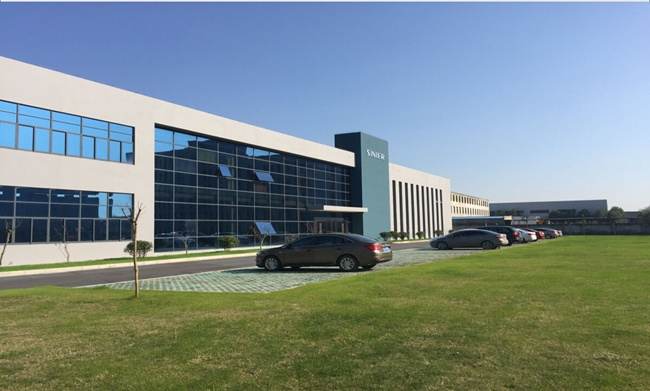

Company Introduction:Established in 2007, SINIER have more than 90 employees with the total registered capital of 15 millions Yuan,covering 20000 square meters area, which is company property.It is the only company that has the largest and most advanced liquid and gas calibration device equipment .

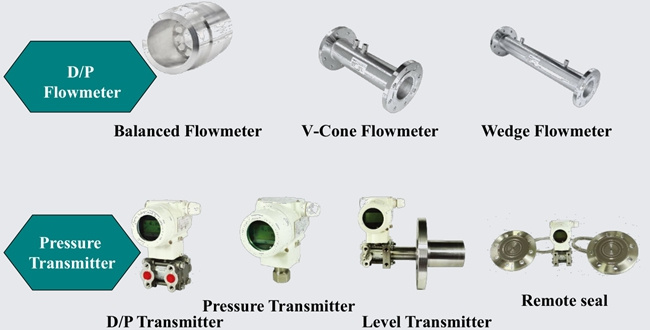

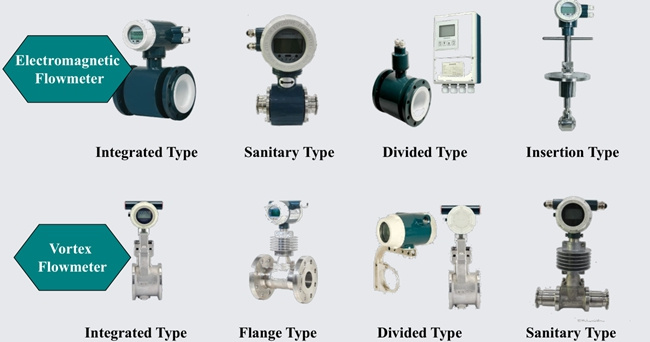

Product Range:
![](/proimages/44f3j00HacEoPJzYAbt/explosion-proof-smart-high-accuracy-pressure-transmitter-with-4-20ma-hart-profibus-protocol.jpg)
![](/proimages/44f3j00PTqEblJMCwoQ/explosion-proof-smart-high-accuracy-pressure-transmitter-with-4-20ma-hart-profibus-protocol.jpg)

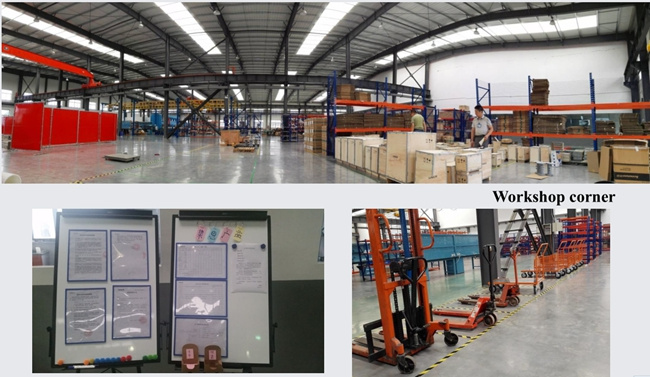

Workshop Corner:
![](/proimages/44f3j00IQkabowqCmcT/explosion-proof-smart-high-accuracy-pressure-transmitter-with-4-20ma-hart-profibus-protocol.jpg)
Product Testing:

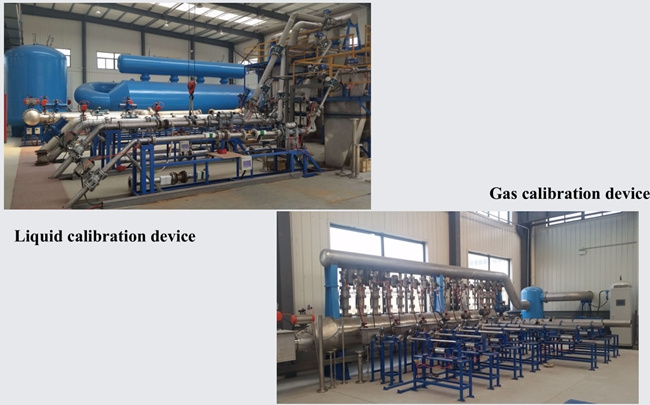

Calibration Devices:
