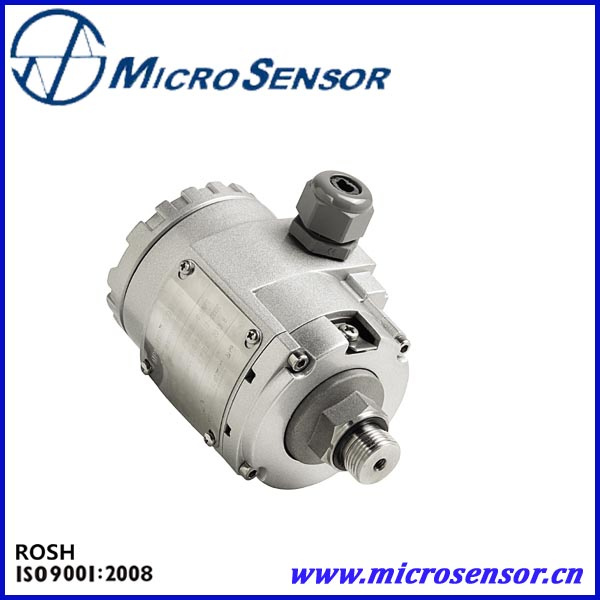

Exia Stainless Steel Diaphragm Mpm489b Pressure Transmitter with Good Performance

Name: Exia Stainless Steel Diaphragm Mpm489b Pressure Transmitter with Good Performance
Brand: all-electronics-online.com
SKU: 774823595
Availability: InStock
Rating: 4.3 (22 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM489B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Accuracy:	0.5%Fs
Output Signal:	4~20madc
Power Supply:	12~28VDC
Overpressure:	1 Time Fs or 110MPa(Min. Value Is Valid)
Humidity:	0~90%
Protection:	IP65
Media Temperature:	-40~80c
Storage Temp:	-40~85c
Housing:	Stainless Steel
Pressure Range:	-0.1...0~0.01...100MPa

Product Description

                        Exia stainless steel diaphragm MPM489B Pressure Transmitter with good performance
Features:

1. Exia;
2. Easy installation;
3. Good compability;
4. Short-production

Appllications:

1.   Oil;
2.   Chemical industry;
3.   Power station;
4.   Water conservancy

Specifications:

1.         Pressure range: -0.10~0.02~100MPa
2.         Media: the liquid or gas which is compatible with stainless steel 1Cr18Ni9Ti
3.         Power supply: 12~28VDC
4.         Output signal: 4~20mADC, 2-wire
5.          Load: R≤(U-12)/0.02Ω
6.          Accuracy: 0.5%FS
7          Thermal error: 0.03%FS/ºC (≤100kPa),0.02%FS/ºC(>100kPa)
8.          Overpressure: 1.5 times FS or 110MPa (min. value is valid)
9           Environment temp.:-30~+80ºC, -10~+60ºC(intrinsic safe version)
10.        Media temp.:-40~+80ºC
11.        Storage temp.:-40~+85ºC
12.        Shock: 3-dimensional 10g /frequency 50Hz/ swing1mm,zero and span change<0.3%FS
13.        Impact: 100g/20ms,zero and span change<0.3%FS
14.        Humidity: 0~90%RH
15.        Protection: IP65
16.        Frequency response: >1kHz
17.        Endurance: 106 pressure cycles

Order guide:

MPM489B

Pressure Transmitter

Range

Pressure range: -0.1~00.02~100MPa

[0~X]kPaMPa

X:the actual measured pressure

Code

Output signal

4~20mADC

Code

Construction material

Diaphragm

Port

Housing

SS 316L

Tantalum

Code

Others

Intrinsic safe version:ExiaIICT6

M20×1.5 male

G1/2 male

M20×1.5 male, water line seal

Gauge

Sealed gauge

Absolute

MPM489B

[0~1000kPa] E

C1G

The whole spec
