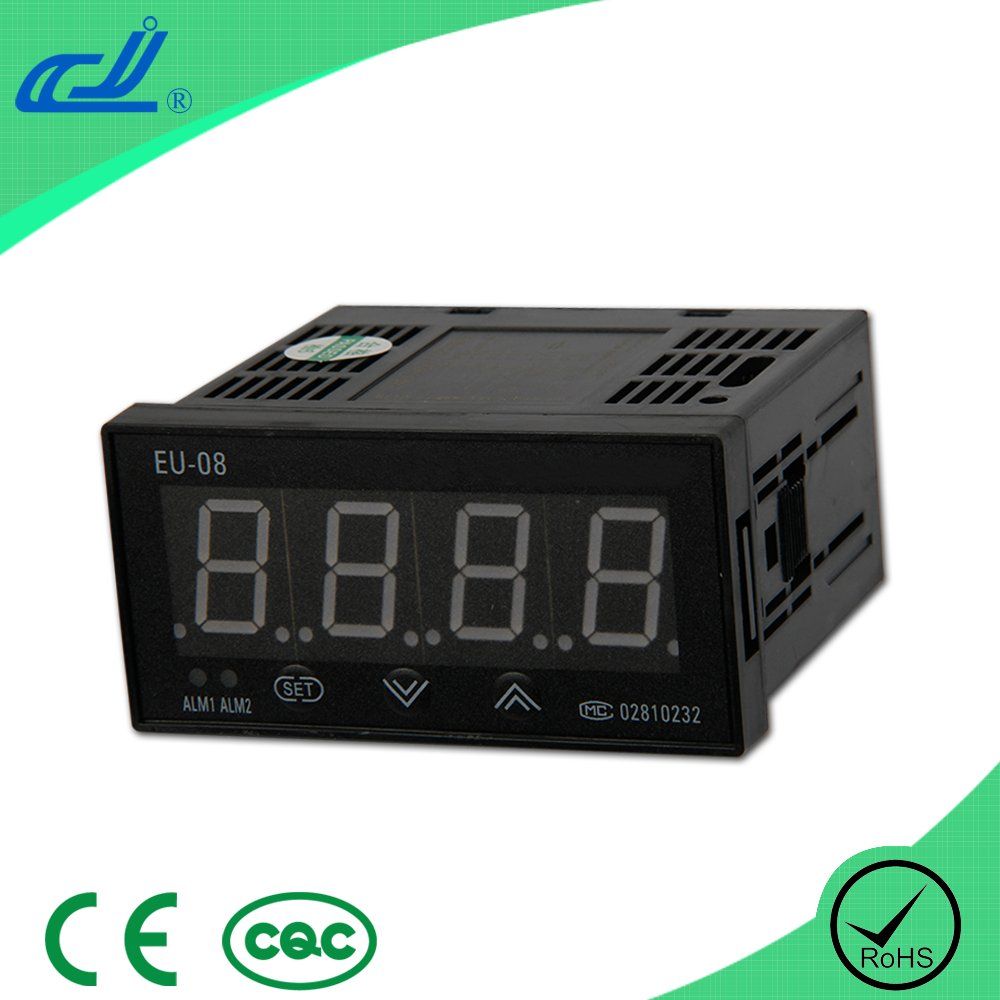

EU-08 Digital Temperature Display/Control Instrument

Name: EU-08 Digital Temperature Display/Control Instrument
Brand: all-electronics-online.com
SKU: 692037042
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	EU-08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Main Technical Indexes
1. Measurement deviation:Class±0.5%F·S±1b,additional cold end compensation
deviation ±2C

2. Input Type:CU50(-50~150.0),PT100(-199.9~600.0),K(-30~1300),
E(-30~700),J(-30~900),T(199~400),S(-30~1600),
R(-30~1700),0~10V (-1999~9999),4~20mA (-1999~9999)

3. Size and Installation hole(mm):96×48×110 92×44

4. 0.8"LED tube and four digit display

5. Working power:AC/DC 24V~36V

6. Working condition:0~50C,relative humidity≤85%,without corrode and strong electric radiation.

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
