Epoxy Fiberglass G10 Lamianted Sheet
Price: |
US $ 5-5.5kilograms |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
500kilograms |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
G10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Sheet Size: |
915*1220mm; 1020*1220mm; 1020*2040mm; 1220*2440mm |
Application: |
Switch Baseplate |
Type: |
Insulation Sheet |
Chemistry: |
Hybrid Insulation |
Material: |
Fiberglass |
Thermal Rating: |
B 130 |
Maximum Voltage: |
20KV~100KV |
Color: |
Green |
Brand: |
Nova |
Product Description
Applications:
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.
Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Good dielectric properties
*Low water absorption
*Flame resistance (Type: FR-4)
*Tighter thickness tolerance
*Flat and straight panel
*Smooth and clean surface.
*Easy to machine
Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~100mm
*(101~200mm available in 915*1220mm & 1020*1220mm)
4) Sheet size: 915*1220mm; 1020*1220mm; 1020*2040mm; 1220*2440mm
5)Min. Order Quantity: 500 kgs in a lot
These grades are composed ofelectrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat. They have extremely high mechanical & electrical strength. Good dielectric properties under dry and humid conditions. Excellent rigidity and dimensional stability.
G10/FR4 Temperature Index: 135 Degree Celsius
NEMA Grade: G-10, FR-4
(IEC Grade: EPGC201, EPGC202)
(DIN7735 Grade: Hgw2372, Hgw2372.1)
(ISO1642 Grade: EPGC1, EPGC2)

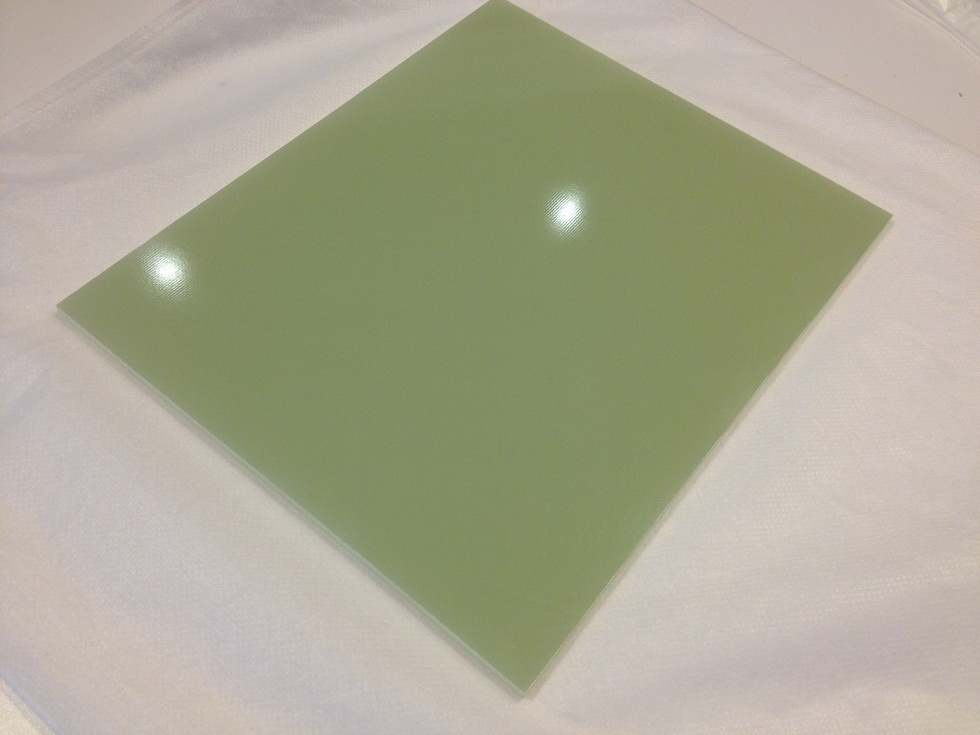

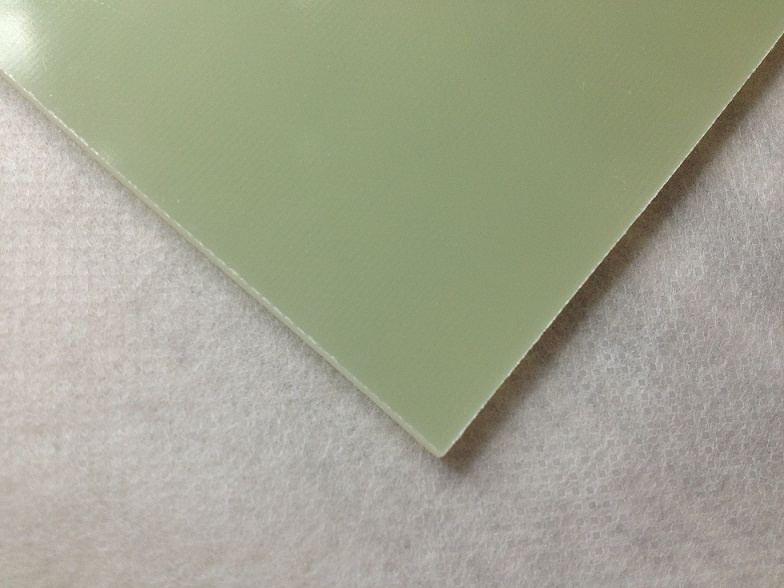

![](/proimages/44f3j00AzwQUYFdkHbN/epoxy-fiberglass-g10-lamianted-sheet.jpg)

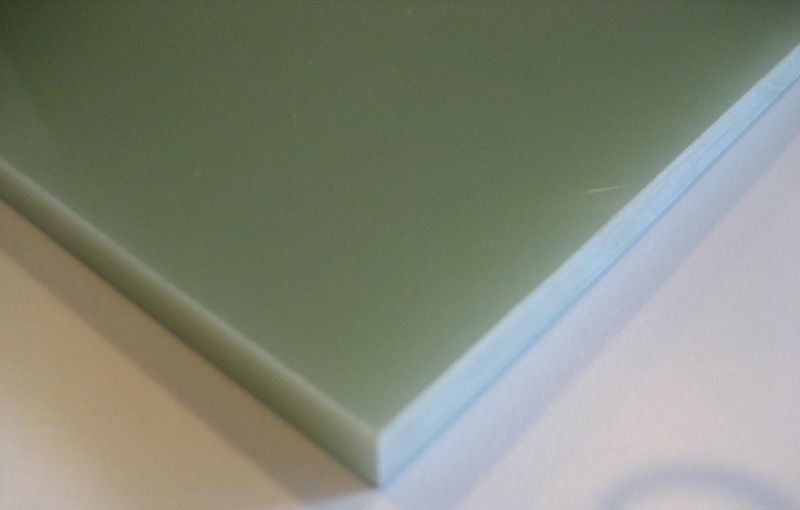

![](/proimages/44f3j00wpJaRrOhfIoF/epoxy-fiberglass-g10-lamianted-sheet.jpg)
Technical Data sheet - G10/Fr4NO. | PROPERTIES | UNIT | METHODE | STANDARD VALUE | TESTING VALUE |
1 | Flexural strength perpendicular to lamination- normal room temperature | MPa | ISO 178 | ≥ 350 | 492 |
2 | Notch impact strength parallel to lamination (Notched charpy) | kJ/m2 | ISO 179 | ≥ 37 | 63 |
3 | Dielectric strength perpendicular to lamination (in oil 90±2ºC) 1.0mm in thickness | kV/mm | IEC 60243 | ≥ 14.2 | 22 |
4 | Breakdown voltage parallel to laminations (in oil 90±2ºC) | kV | IEC 60243 | ≥ 45 | 75 |
5 | 1MHz dielectric coefficient | - | IEC 60250 | ≤ 5.5 | 4.85 |
6 | 1MHz loss factor | - | IEC 60250 | ≤ 0.04 | 0.02 |
7 | Water absorption rate, 1.6mm in thickness | % | ISO 62 | ≤ 0.25 | 0.06 |
8 | Insulation resistance impregnated in water, D-24/23 | Ω | IEC 60093 | ≥ 5.0×1010 | 2.5×1011 |
9 | Flammability | class | IEC 60695 | FV0 | FV0 |
10 | Bonding strength | N | | ≥ 6500 | 8174 |
Packaging & Shipping
Pallet,wooden boxes or according to customer requirements
Shipment By Express Such as Fedex,DHL,TNT and etc,Would take 3-5 days
Shipment By Air would take 5-7 Days
Shipment By Ocean(Sea) would take 18-30 Days
About Us:
Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.
We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated sheet products for you, but also very experienced design concept, strong program management system, well trained employees for G10/FR4 Epoxy glass fabric laminated making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.
Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.
We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.
Nova supplies the following products:
1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)
2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)
3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)
4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.
Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.
Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
