| Prod Model: |
PS6000 |
| Proof Pressure: |
≤1.5X Rated Pressure or 110MPa |
| Pressure Type: |
Gauge, Absolute ,Sealed Gauge |
| Accuracy: |
±0.25% |
| Long Term Stability: |
±0.2%F |
Product Description

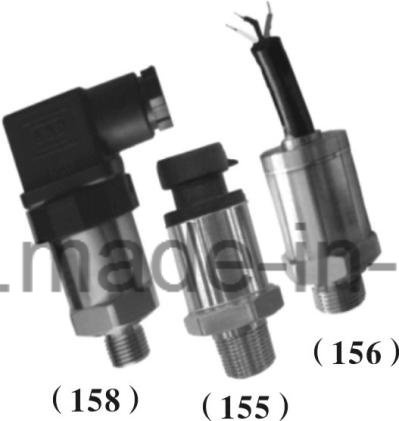

BP15 series pressure transmitter for air compressor vacuum equipmentDescription
BP15 series are especially for air compressor. The cost-Performance ratio is high, utilize newest technology, assemble high performance circuit. Small profile, have strong capability of dampproof and anti-electromagnetic interference. Mainly apply in fields: air compressor, vacuum equipment, oil pressure equipment.
Features
- Wide measurement range,
- Multiple thread
- Protection: IP65
- Marking :ExiaIICT6;
- CE,CMC certification
Application
- air compressor, vacuum equipment,
- oil pressure equipment
Specification| Measurement Range | 0~0.1...~60MPa |
| Proof pressure | ≤1.5X rated pressure |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long stability | ±0.1%F.S/year(typical) ±0.2%F.S/year(Max.) |
| Temperature Error- Zero | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Temperature Error -Span | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Operating Temperature Range | -20ºC~80ºC |
| Storage Temperature Range | -40ºC~120ºC |
| Power supply | 12~36VDC,5VDC |
| Output signal | 4~20mA 0.5~4.5VDC,1~5V |
| Pressure port | M20×1.5,G1/4 or customize |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O-ring | Fluororubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ,100VDC |

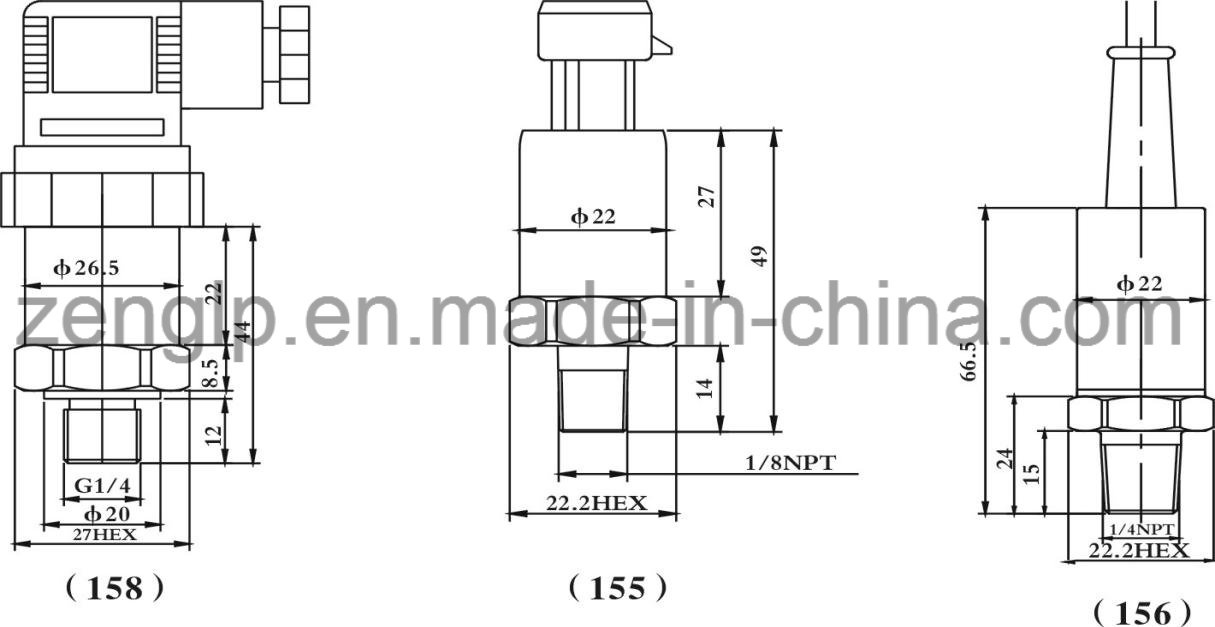

Ordering ExampleBP158 0~10KPa D1 S1 J3 G Pressure type Pressure portOutput signal Power supplyRangeDimension Ordering Information | BP15X | Code | Dimension |
| | 5 | Packard |
| 6 | Cable with 1.5 meter |
| 7 | Mini DIN |
| 8 | Big Din |
| | Pressure range | -0.1. . .0~0.01...20MPa |
| (0-X)KPa or MPa | X: measurement range |
| | Code | Power supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Others |
| | Code | Output signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| | Code | Pressure port |
| J1 | M20×1.5 male |
| J2 | G1/2 male |
| J3 | G1/4 male |
| J4 | 7/16-20UNF female |
| J5 | Others |
| | | Code | Pressure type |
| G | Gauge |
| A | Absolute pressure |
| S | Sealed pressure |
