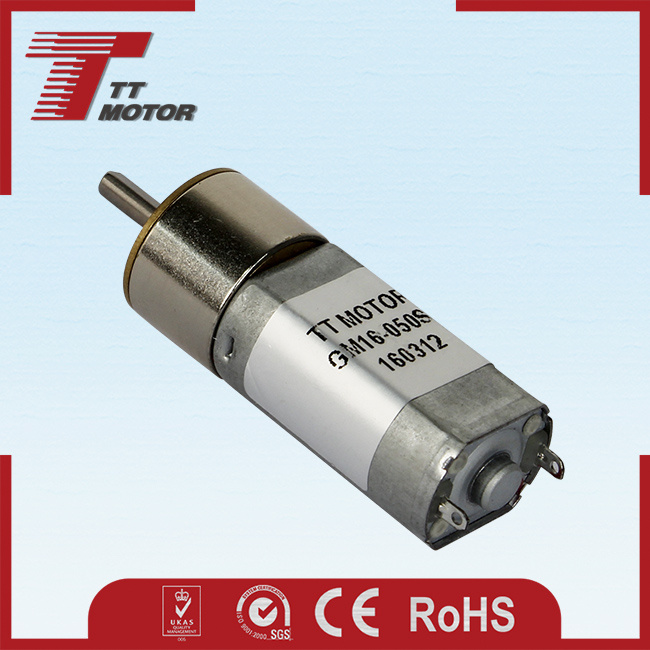

Electrical micro astronomical instruments 0.6-1.03W planetary gear motor

Prod Model:	DC Gear Motor GM16-050SH
Product Name:	DC Gear Motor GM16-050SH
Rated Voltage:	6.0V,12V
No-Load Speed:	22-4100r/Min
No-Load Current:	30-45mA
Rated Speed:	20-3150r/Min
Rated Torque:	0.024-0.5kg.Cm
Rated Current:	110-255mA
Output Power:	0.6-1.03W
Stall Torque:	33-50g.Cm
Stall Current:	0.29-1.30A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Type:	Gear Motor
Certification:	RoHS CE
Brand:	TT Motor

Product Description

Electrical micro astronomical instruments 0.6-1.03W planetary gear motor

Main Features:
1.OEM/ODM 16mm gearbox plus 030&050 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.16mm gear motor provide 0.05Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Dc gear motors can match encoder,3ppr
6.Reduction ratio:3,10,17,20,35,63,86,115,150,250,360


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TFF-050SH-13120	6.0	12500	45	10000	10	225	1.03	50	1.30
TFF-050SH-07360	12.0	8000	30	5700	10	110	0.6	33	0.29
TFF-050SH-08240	12.0	12800	35	9500	10	150	0.99	43	0.55

Gear motor technical data : GM16-050SH-13120-xxx

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	4000	1200	600	340	190	140	105	80	50	35
Rated speed rpm	3300	1000	500	285	158	116	92	73	46	33
Rated torque kg.cm	0.024	0.08	0.14	0.25	0.44	0.5	0.5	0.5	0.5	0.5
Max.momentary tolerance torque kg.cm	0.12	0.4	0.7	0.8	1.1	1.9	2.6	3.0	3.0	3.0


Gear motor technical data : GM16-050SH-07360xxx

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	2500	750	380	220	120	90	68	52	32	22
Rated speed rpm	1900	570	285	160	90	65	53	43	28	20
Rated torque kg.cm	0.024	0.08	0.14	0.25	0.44	0.5	0.5	0.5	0.5	0.5
Max.momentary tolerance torque kg.cm	0.12	0.4	0.7	0.8	1.1	1.9	2.6	3.0	3.0	3.0

Gear motor technical data : GM16-050SH-08240-xxx

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	4100	1230	620	350	200	145	110	85	50	36
Rated speed rpm	3150	950	475	270	150	110	82	73	46	33
Rated torque kg.cm	0.024	0.08	0.14	0.25	0.44	0.5	0.5	0.5	0.5	0.5
Max.momentary tolerance torque kg.cm	0.12	0.4	0.7	0.8	1.1	1.9	2.6	3.0	3.0	3.0

Product Application
Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
1.Accessory of automobile
2.Paper feed
3.Widely used  in automatic actuator,electric lock
4.Power Lock,Monitor
5.Precision instrument
6.Mini mechanism,Robot
7.Financial apparatus,auto DVD
8.Financial apparatus, Ad equipment

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirn the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What do I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accept,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should by paid before shipping.
